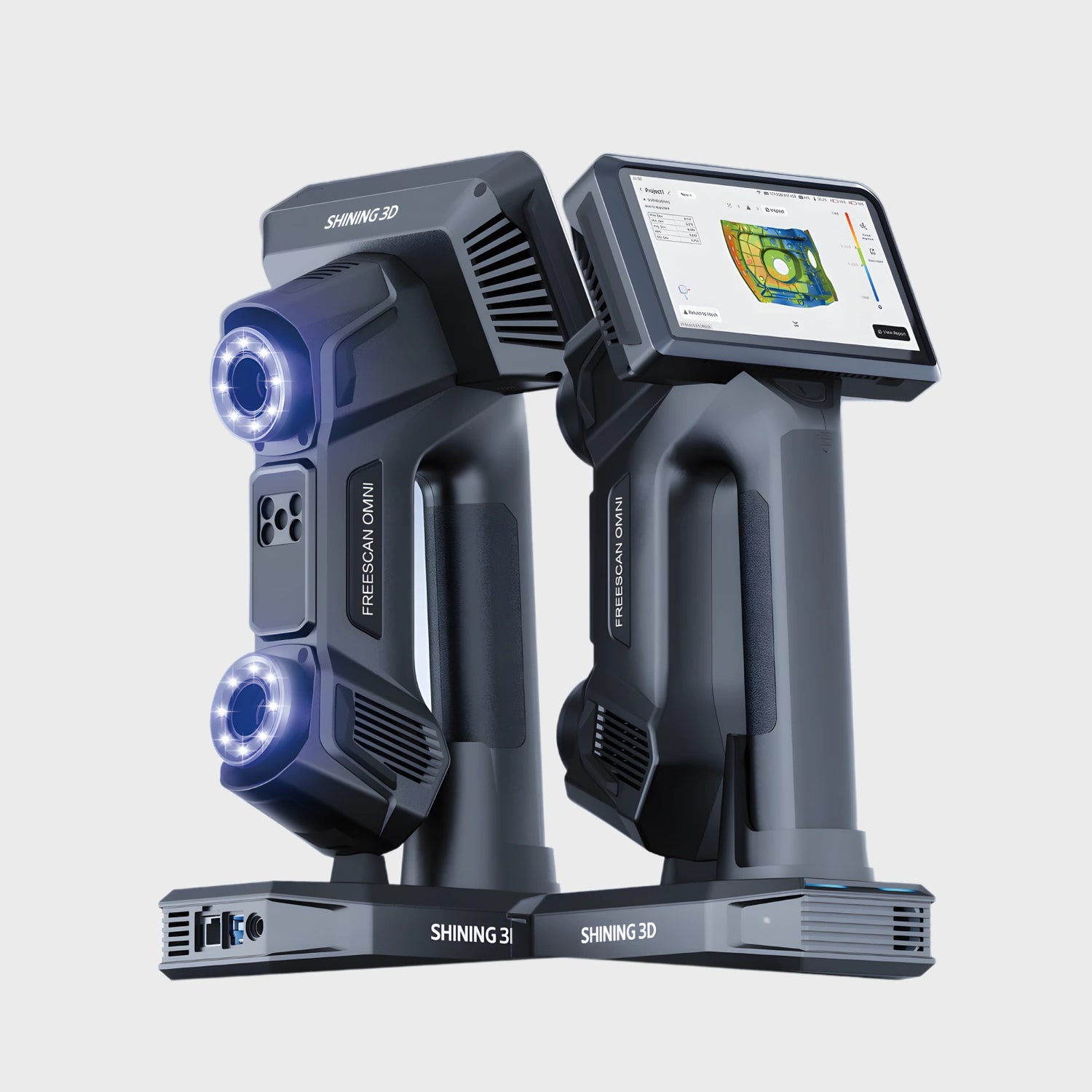

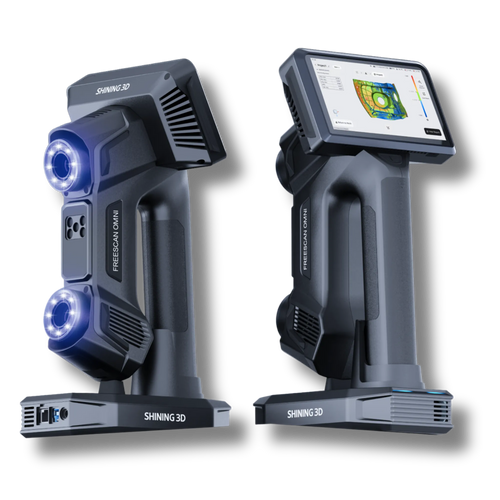

FreeScan Omni
The Standalone Inspection - Ready Metrology 3D Scanner
FreeScan Omni redefines 3D metrology by combining wireless operation, PTB-certified inspection, and on-scanner computing into one intuitive standalone scanner. From production floors to metrology labs, FreeScan Omni delivers the future of precise 3D scanning — untethered, intelligent, and inspection-ready.
Inspect On the Move with FreeScan Omni

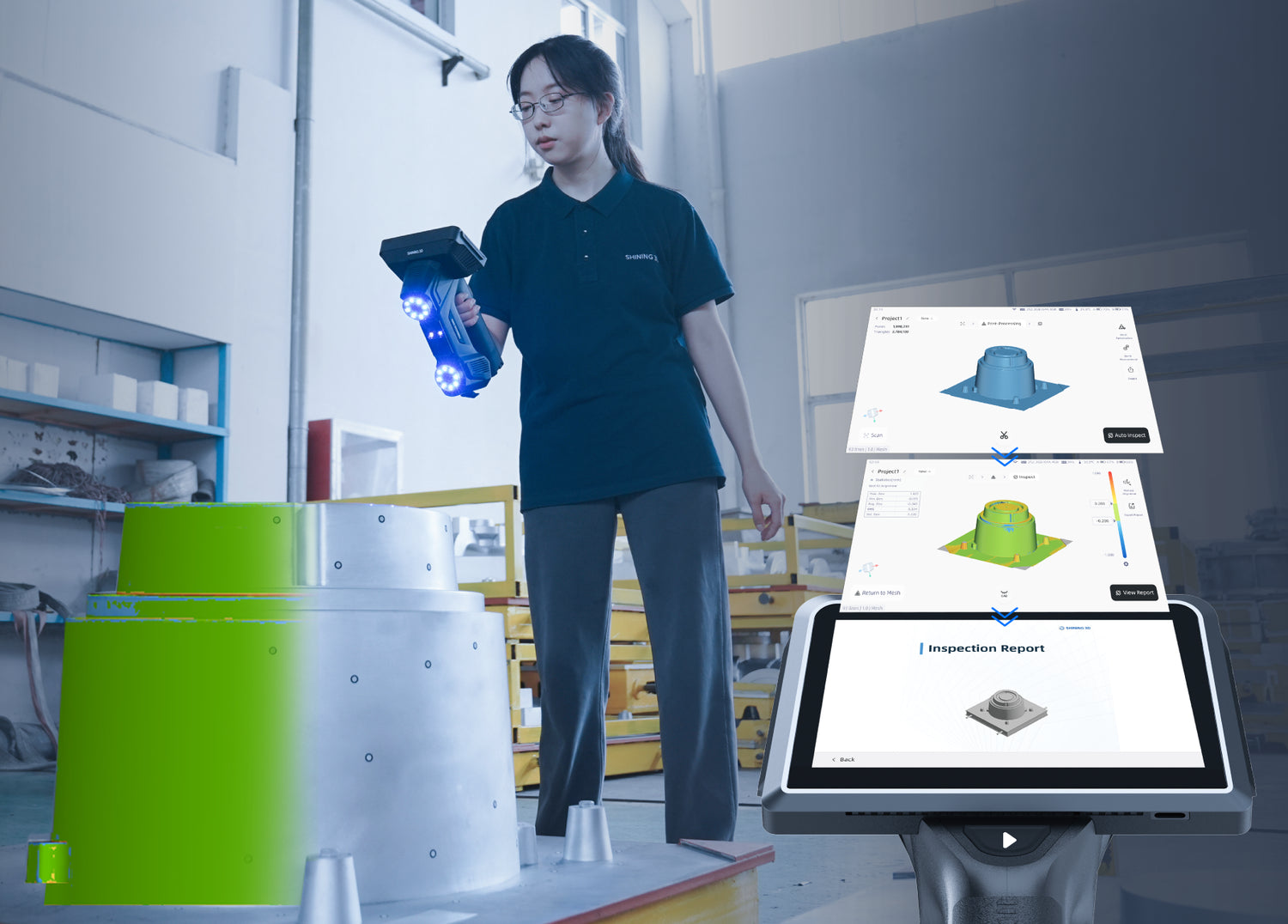

Metrology Grade On Scanner Inspection
Complete the entire process — scan, inspect, and report — directly on the device.
Powered by SHINING3D Inspect and a PTB-certified module, FreeScan Omni delivers automated, accurate, and instant inspection results.
- Built-in PTB-certified software
- Preset templates & intuitive UI
- Automated inspection & easy export

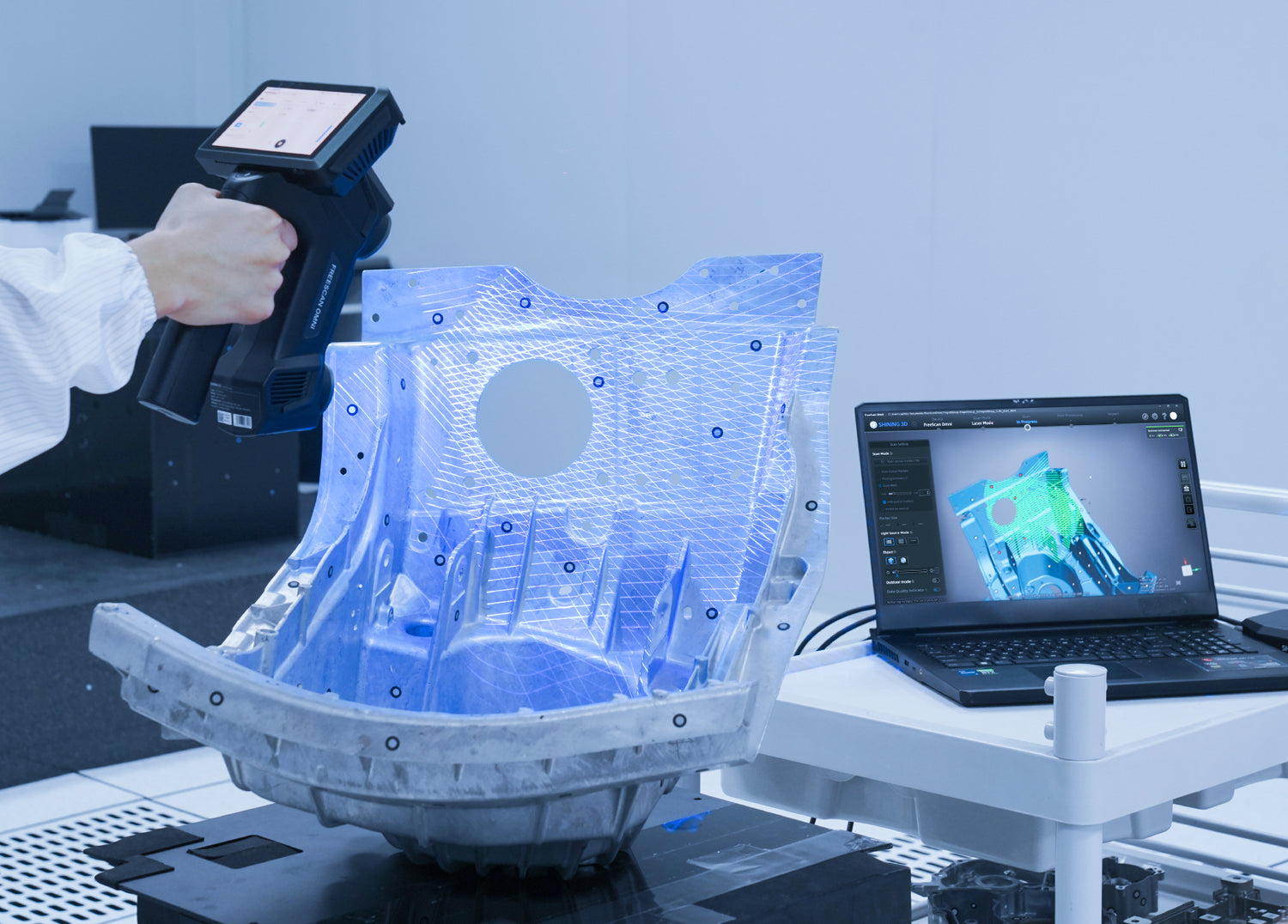

Engineered for On-Site Quality Control
Designed for industrial metrology on the move, FreeScan Omni offers 0.02 + 0.03 mm/m certified accuracy and powered by a high-performance processor. The system leverages an edge-based computing module for rapid 3D scanning and data processing, significantly enhancing workflow efficiency.

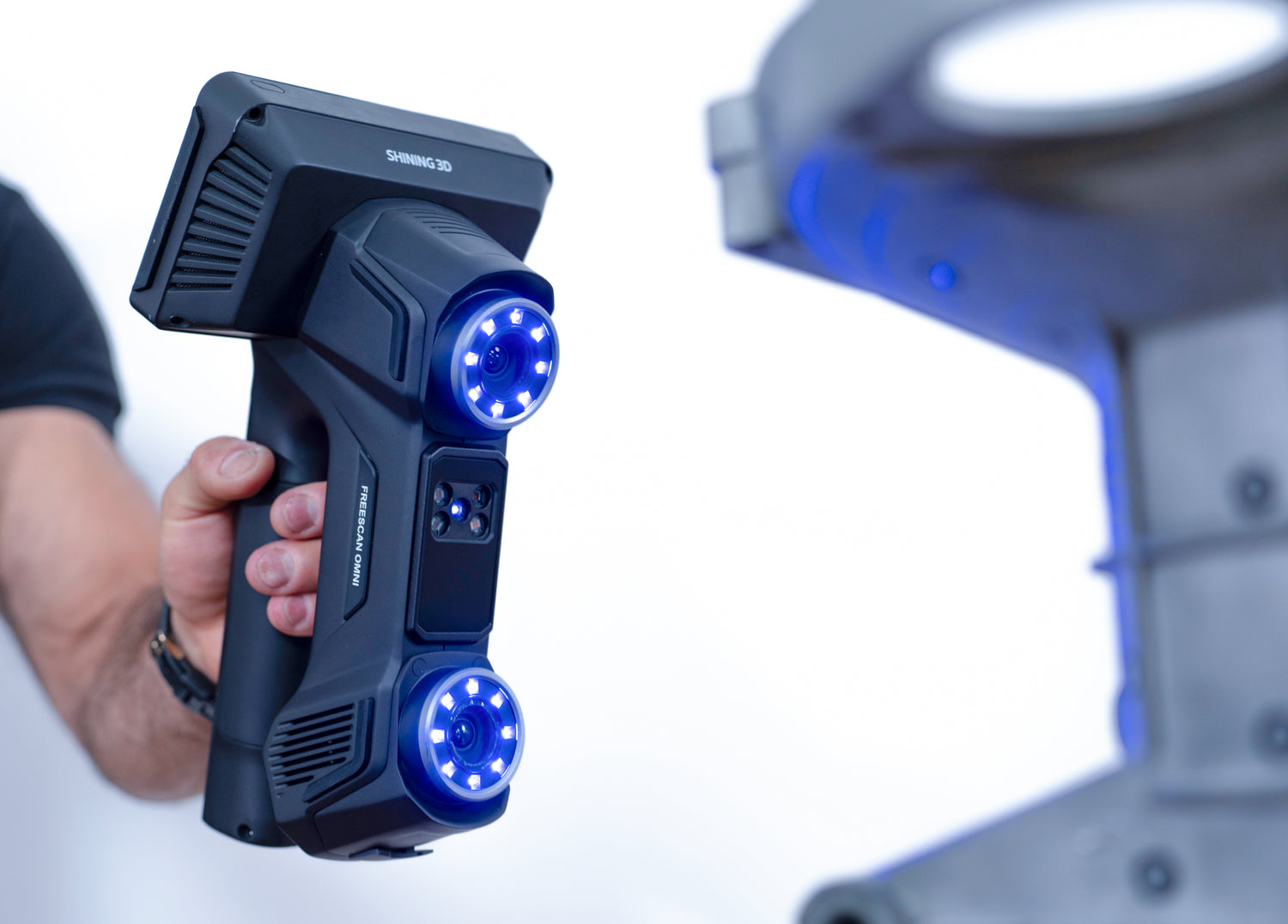

Wireless & Standalone Operation
Eliminate cables and external systems. Powered by edge computing, this standalone 3D scanner processes and inspects data on-device. Detachable batteries ensure uninterrupted operation in any environment.

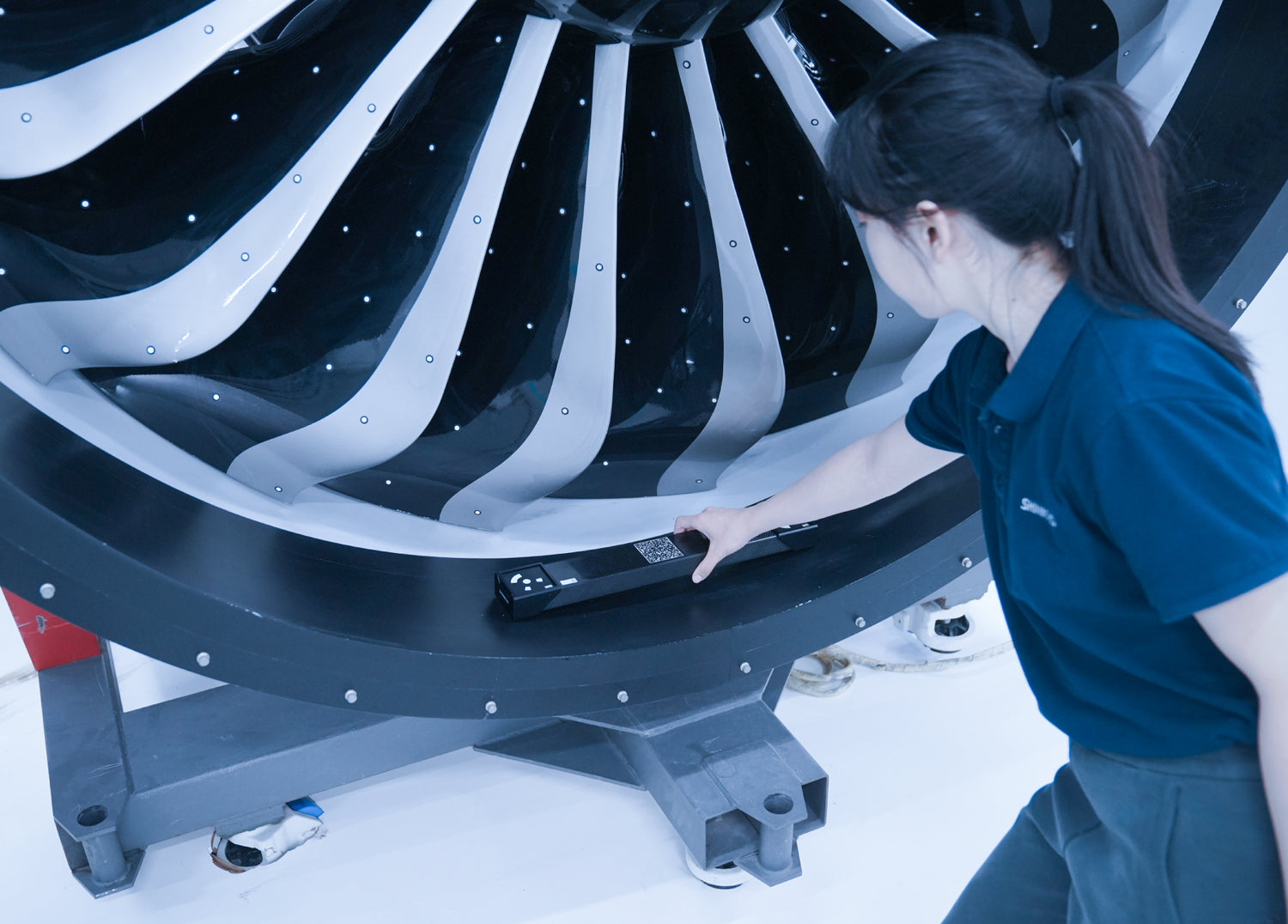

Video Photogrammetry (VPG) for Precision
SHINING 3D’s patented Video Photogrammetry (VPG) technology ensures consistent volumetric accuracy without coded markers. By integrating photogrammetry technology with a calibration rod, it enables capturing large parts efficiently and real-time accuracy verification.

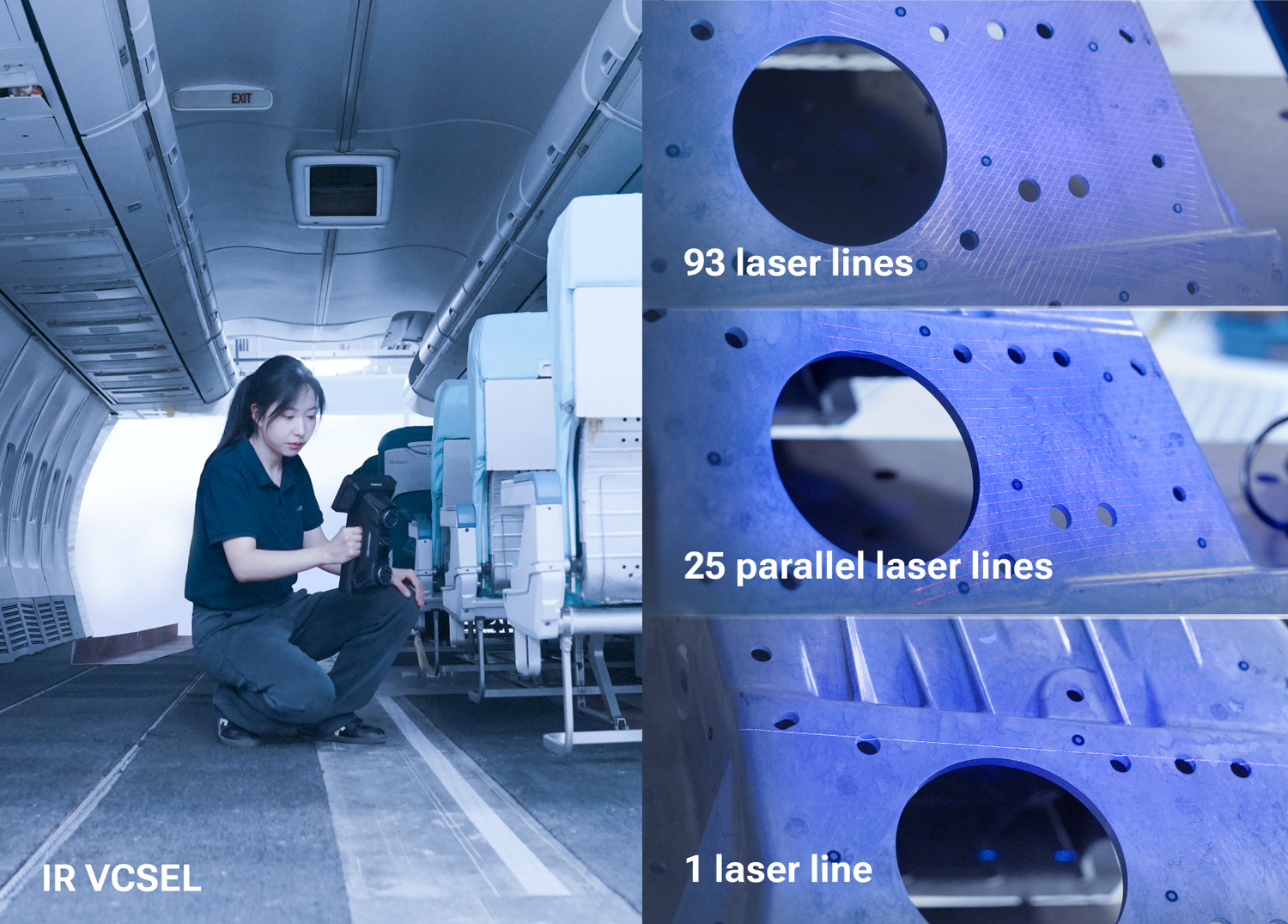

Multiple 3D Scanning Modes
Adapt to every task with flexible scanning modes:
- 93-laser-line mode for high-speed full-field scanning
- 25-line mode for detailed surfaces
- Single-line mode for deep pockets
- IR rapid scan mode for marker-free inspection

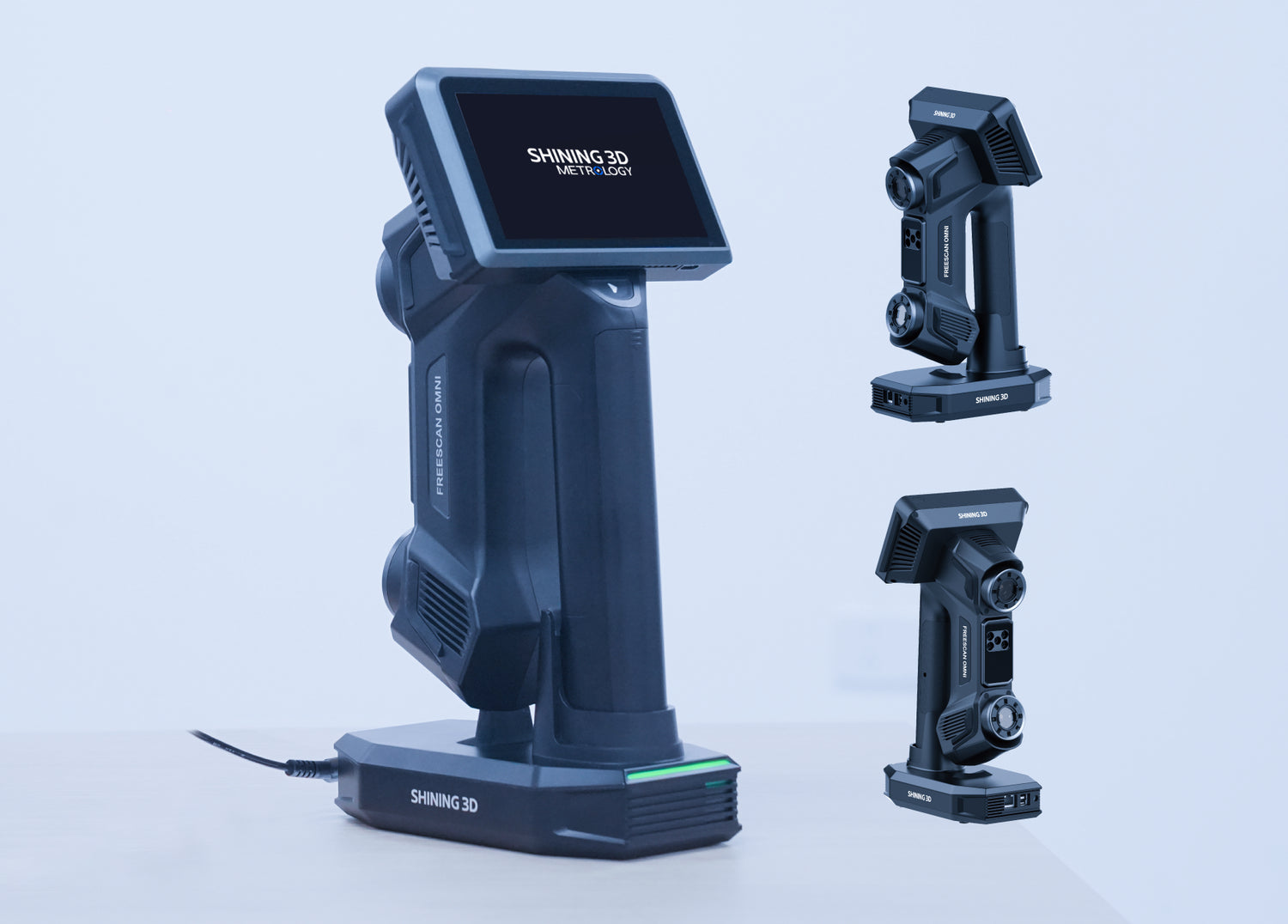

Smart Dock for Power & Connectivity
The FreeScan Omni’s dock doubles as a charging and Wi-Fi base station. Dock once for automatic power and network setup — always ready for your next scan.
Global Support
Backed by SHINING 3D’s worldwide service network, FreeScan Omni users gain reliable technical support and expertise wherever they operate.

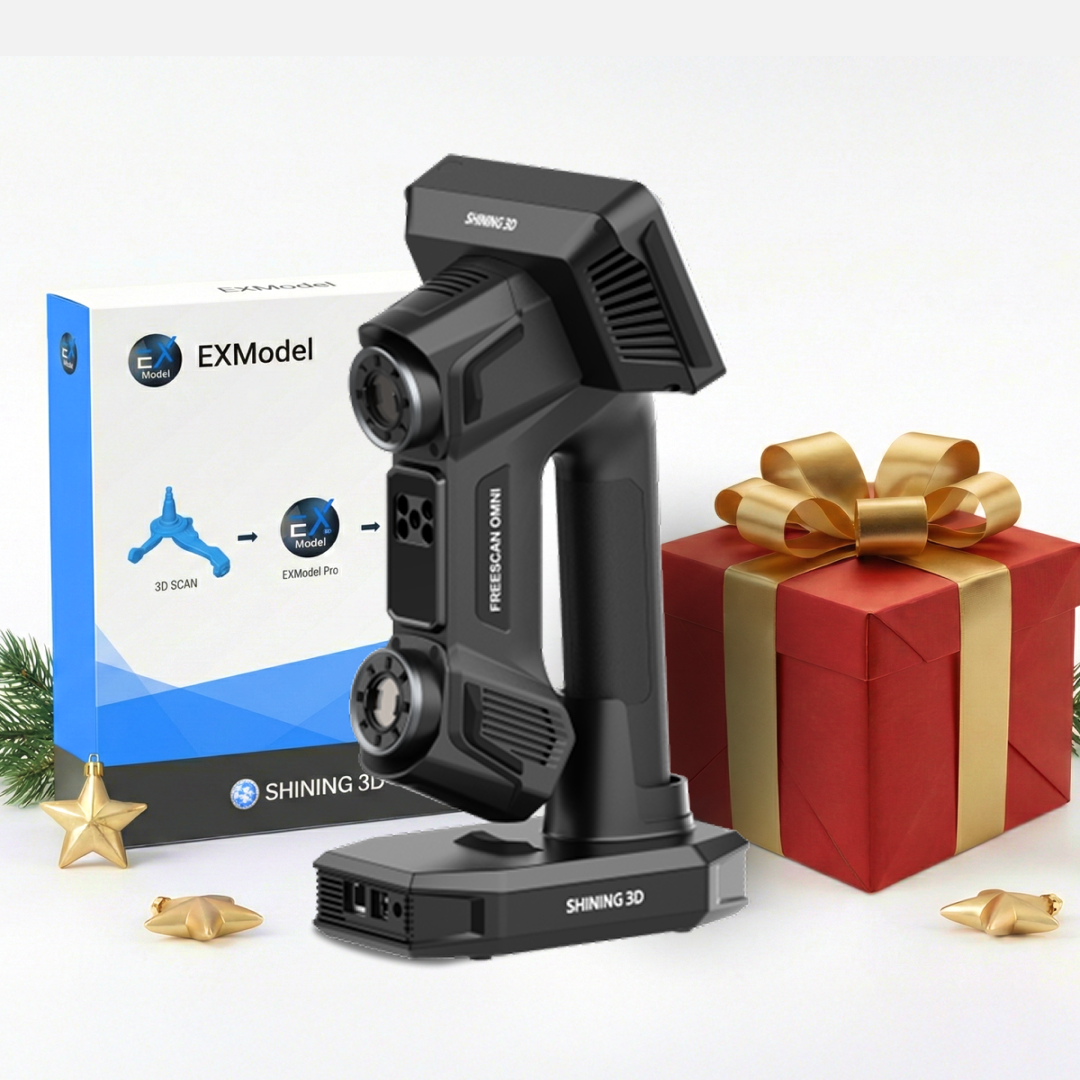

3D Scanner & Software Bundles
Why Choose FreeScan Omni?
Technical Specifications - FreeScan Omni
| Product | FreeScan Omni |
|---|---|
| Accuracy | 0.02 mm (0.0008 in) |
| Volumetric accuracy with VPG | 0.02 + 0.015 mm/m (0.0008 in + 0.00018 in/ft) |
| Scan Speed | Up to 7,619,000 points/s |
| Hardware | Built-in computing (32G) / FPGA / 1TB SSD |
| Max. FOV | Laser: 580 x 650 mm; IR: 1205 x 1104 mm (Laser: 22.8 x 25.6 in; IR: 47.4 x 43.5 in) |
| VPG | Included (no coded markers required) |
| Inspection module | Included (integrated on-device inspection) |
| High-speed scan | Included (93 laser line) | VCSEL |
| Detailed scan | Included (25 parallel laser line) |
| Deep pockets scan | Included (1 laser line) |
| Hole scanning | Intelligent hole boundary detection |
| Output format | .stl, .asc, .3mf, .p3 |
| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
| Acceptance test | VDI/VDE 2643 Part3 (certified in ISO 17025 certificated accuracy lab) |
-
Our Company
Delivering top-tier 3D scanners, printers, and training to optimize your business with precision and efficiency.
-
Who We Are
A dedicated team of 3D scanning and printing experts, providing reliable service and fast support.
-
Customer Benefits
We value your time and make adopting new technology easy with unlimited after-sales support and free shipping.
Frequently Asked Questions
Looking for something specific? Let us know, and we’ll be happy to assist you.
Unlike conventional handheld 3D scanners, the FreeScan Omni is a standalone inspection-ready metrology 3D scanner — meaning all scanning, computing, and inspection happen directly on the device, no PC required.
Yes! The SHINING3D FreeScan Omni is an inspection-ready metrology system, and the powerful, PTB-certified SHINING3D Inspect module is included with your purchase.This includes:
- The "On-Scanner Scan-to-Inspect" feature, which is the module built directly into the wireless scanner for immediate quality control.
- The full desktop version of the SHINING3D Inspect software for advanced analysis, template creation, and reporting.
Yes, SHINING 3D will continuously maintain and update the SHINING 3D Inspect software and bring new features and improvements, ensuring the software remains powerful and up to date. All FreeScan Omni customers will receive these updates.
Yes, FreeScan Omni comes with the full version of SHINING 3D Inspect included in the package. It’s available not only on the scanner itself but also as a desktop application, allowing you to create inspection templates or use it as a standalone inspection tool.
FreeScan Omni requires 4 batteries to operate. Each package includes 8 rechargeable batteries, allowing for continuous scanning of up to 1 hour per set. Thanks to its hot-swappable battery design, you can replace batteries without shutting down the device, enabling uninterrupted scanning.
FreeScan Omni comes with a validated scale bar in the package that being integrated with SHINING 3D video photogrammetry technology to verify markers in real time, which is also reusable for multiple times to improve overall accuracy for large object scans.
FreeScan Omni is a standalone device, but it can also work with our desktop FreeScan Omni software, to provide more powerful scanning experience and plenty of features to process your data. With FreeScan Omni, you can stream scanning on your desktop, manage multiple projects, fuse resolutions, and take advantage of various data editing tools, all with customizable settings to suit your needs.
The license is tied to a specific laptop. If you want to use it on a different device, you’ll need assistance from SHINING 3D support to transfer the license.
