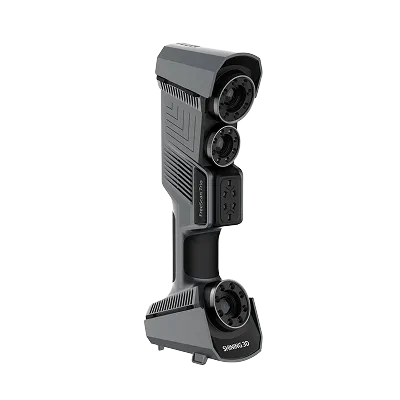

FreeScan Trio

World's First Marker-Free Handheld Laser 3D Scanner

The FreeScan Trio is an innovative marker free 3D scanner delivering 0.02 mm accuracy. With 98 laser lines, three 5 MP cameras, and built in photogrammetry, it enables professionals to capture large, complex parts at 3,010,000 points/sec. Perfect for rapid, preparation free shopfloor inspection and reverse engineering.

Included With Every Purchase

✓ Immediate Quick Start Resources & Tutorial Videos

✓ 1-Year Warranty

✓ One-on-One Training

✓ Authorized Reseller Technical Support

✓ Personalized Application Assistance

✓ U.S.-Based Support

Request a Quote Get a Free Demo

  • Hands-On with FreeScan Trio

    See how the full workflow performs in real conditions.

    Book a personalized demo with our experts.

    Book a Demo

  • Got a Question About FreeScan Trio?

    Our technical team is ready to help with specifications, workflows, and integration.

    Contact Us
1 2

 Who is FreeScan Trio Designed For?

  • Design For

    Metrology engineers, automotive designers, and heavy machinery inspectors needing lightning fast, highly accurate data capture without the hassle of placing markers.

  • Not Recommended For

    Budget conscious hobbyists, or professionals strictly capturing very tiny, highly detailed desktop jewelry objects where stationary automatic turntables excel.

Product Key Features

Download Brochure

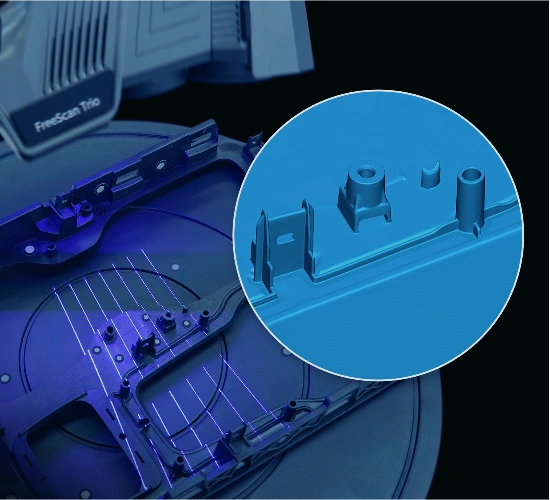

  • Marker Free Scanning

    98 laser lines allow high-speed scanning without applying targets, dramatically cutting preparation time.

  • Built in Photogrammetry

    Patented binocular photogrammetry enhances large scale volumetric accuracy without requiring coded targets.

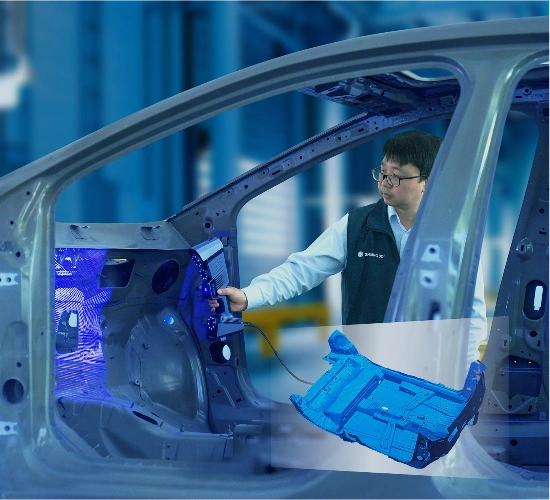

  • Three 5MP Cameras

    Industrial grade cameras deliver exceptionally high detail capture and pristine 3D data quality.

  • Deep Hole Capture

    Optimized camera angles and 26 line or single line modes effortlessly scan deep pockets.

  • AI Feature Recognition

    Intelligent boundary detection provides fast, precise measurement of round holes, rectangular holes, and slots.

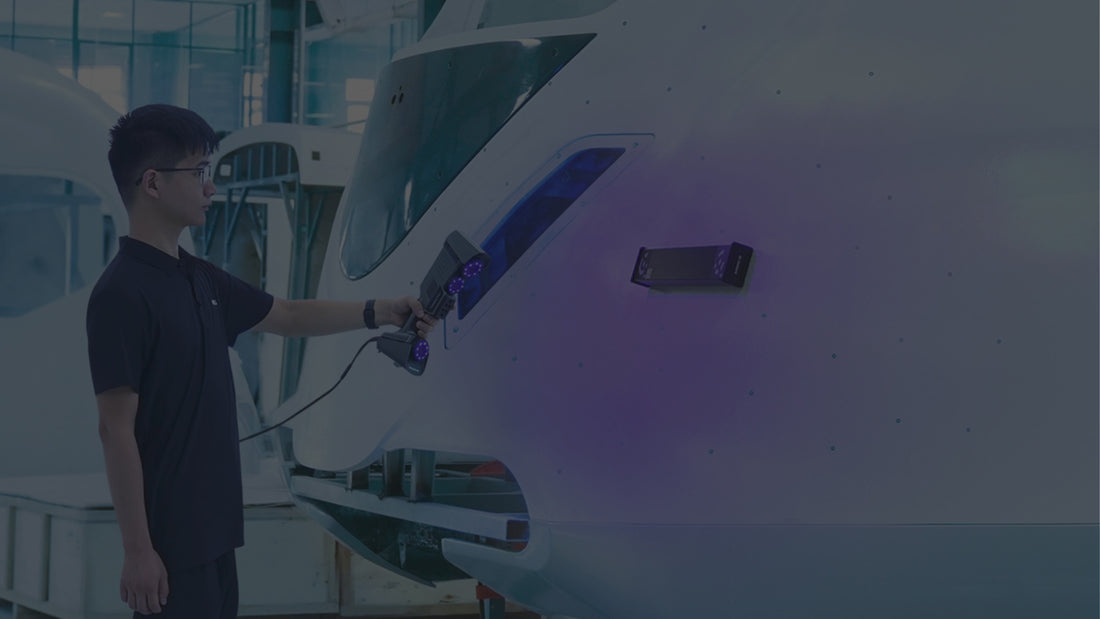

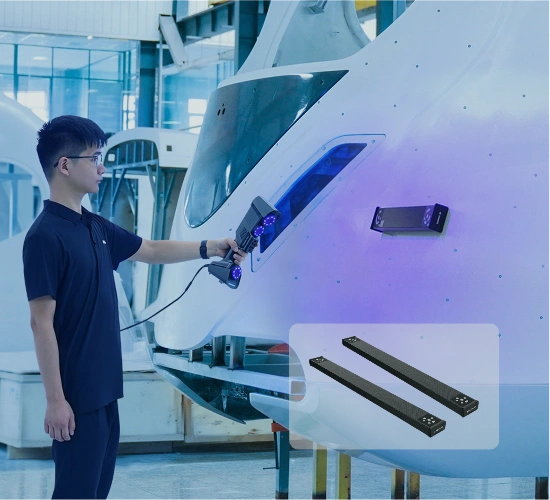

  • Video Photogrammetry (VPG)

    Patented technology eliminates coded markers, ensuring consistent volumetric accuracy for efficient large-object scanning.

1 6
Download Brochure

3D Scanner & Software Bundles

Main product

FreeScan Trio

FreeScan Trio

Available on Request

Add-on products

SHINING3D Inspect

SHINING3D Inspect

$4,900.00
Geomagic Control X Inspection

Geomagic Control X Inspection

$7,249.00
Verisurf Inspection Software

Verisurf Inspection Software

Available on Request
Quicksurface Reverse Engineering Software

Quicksurface Reverse Engineering Software

$540.00
EXModel Reverse Engineering Software

EXModel Reverse Engineering Software

$540.00
Geomagic Design X Reverse Engineering

Geomagic Design X Reverse Engineering

$3,992.00

Your bundle

FreeScan Trio
Available on Request
Total Available on Request

Request a Quote

Your bundle:

See How Businesses Use This in the Real World

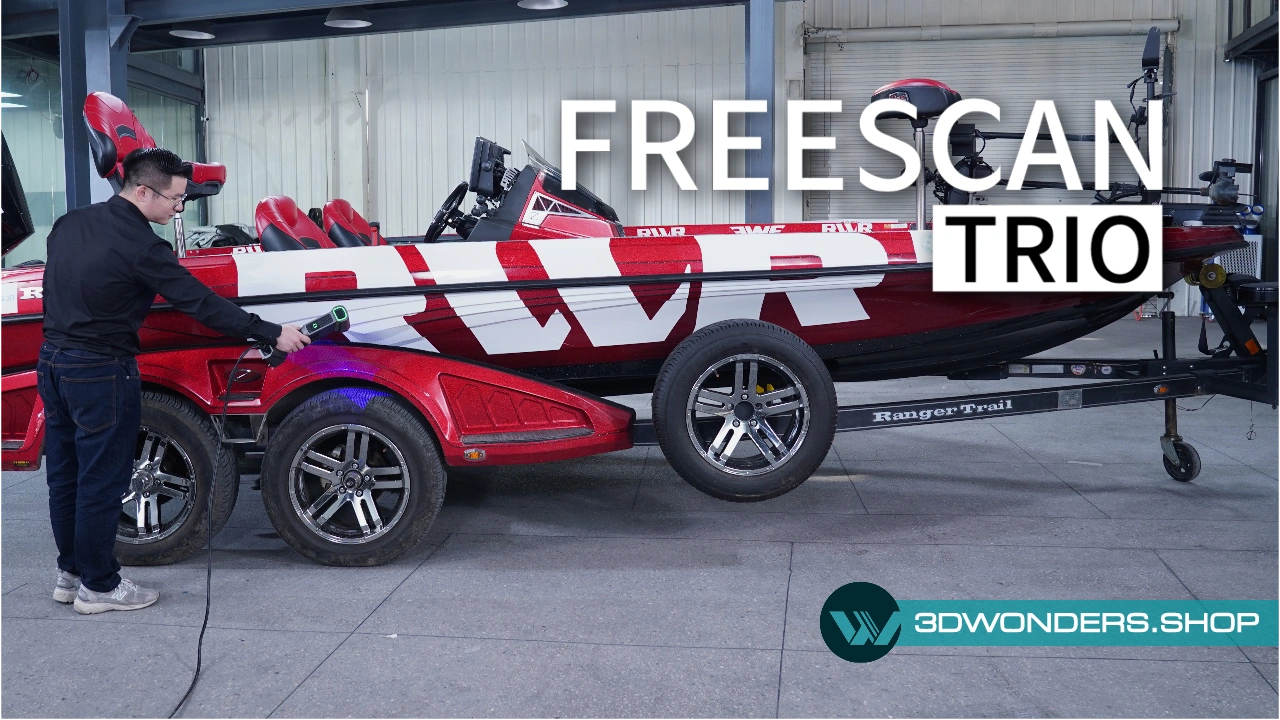

  • Automotive & Aerospace

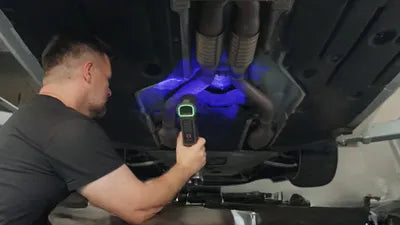

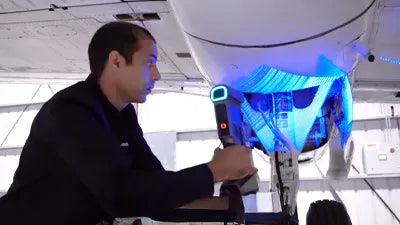

    Reduces iteration time by rapidly scanning vehicle underbodies and large aircraft engines without targets.

  • Industrial & Manufacturing

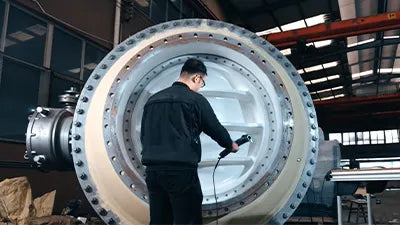

    Facilitates fast deformation detection for large scale equipment like water turbines and petroleum drill bits.

  • Architecture, Engineering & Construction

    Scans large mechanical structures, rails, and hull accessories indoors and outdoors.

  • Product Design & Creative

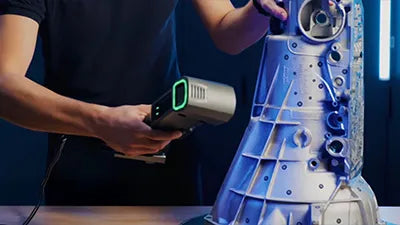

    Delivers highly accurate digital models for rapid reverse engineering of complex metal assemblies.

1 4

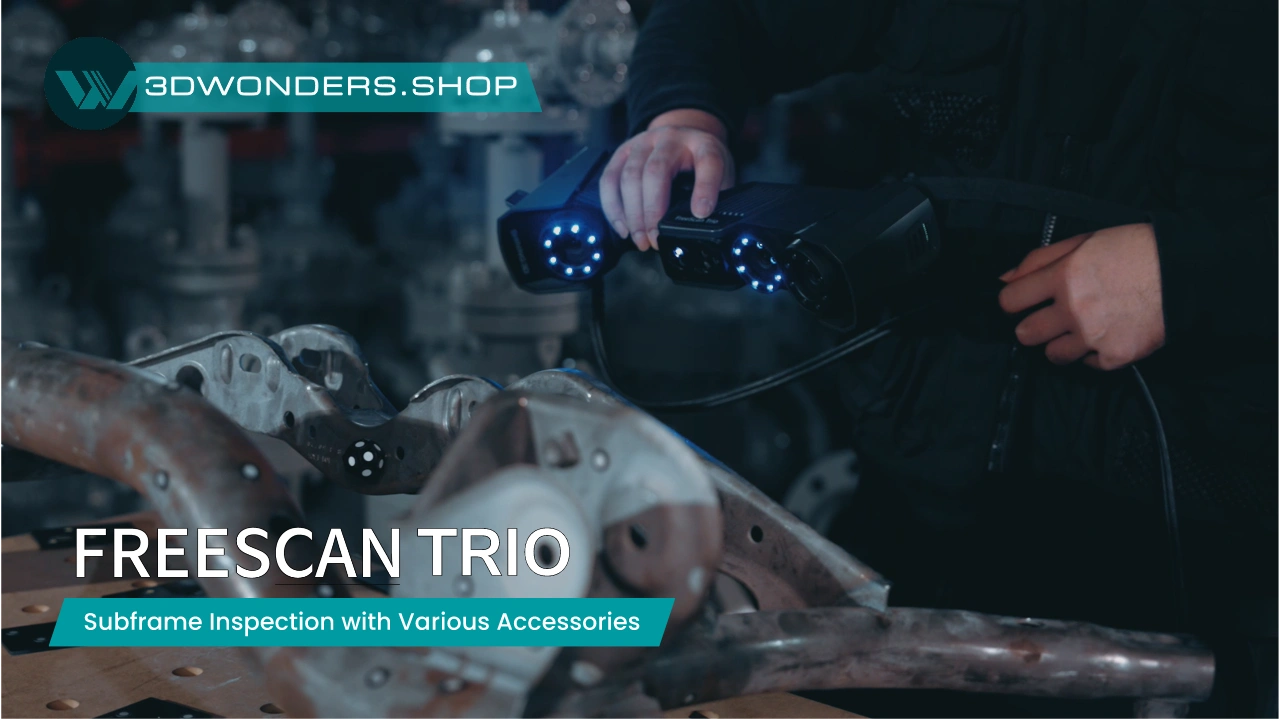

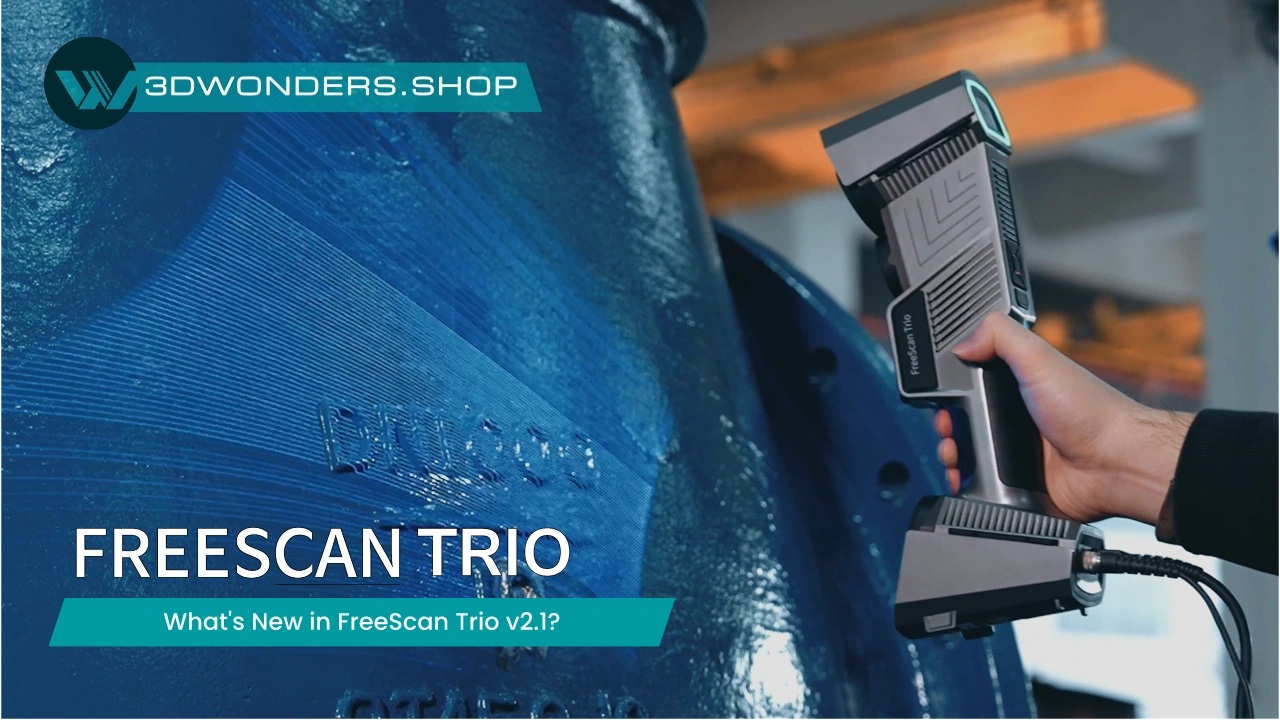

FreeScan Trio Video Review & Tutorials

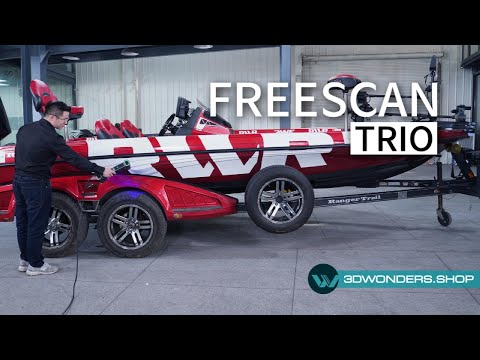

FreeScan Omni Video 1

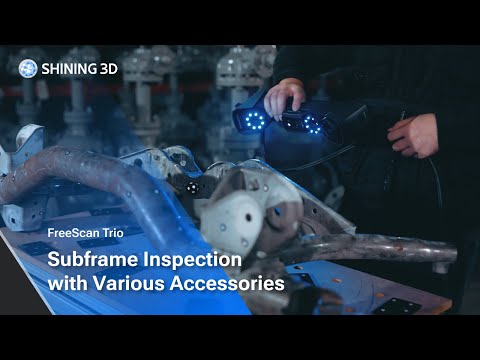

FreeScan Omni Video 2

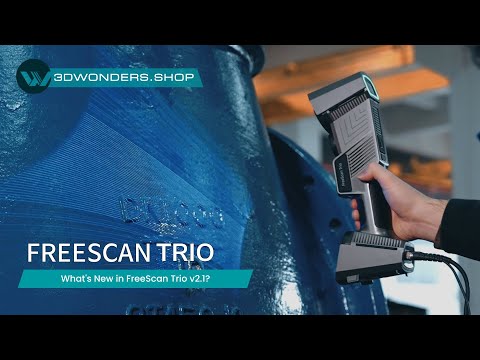

FreeScan Omni Video 3
Discover More Tutorials & Applications

Compare Products

Select up to 4 scanners to compare key specifications side-by-side

Product Name Freescan Trio
Freescan Trio
Object Size for Best Results 5 mm³ - 20 m³
Accuracy up to 0.02 mm
Resolution up to 0.01 mm
Volumetric accuracy up to 0.02 + 0.015 mm/m
Max fov 650 x 580 mm
Scan speed up to 3.010.000 points/s
Light source Blue Laser
Number of laser lines 98 lines | Marker-free
26 lines | High-speed
7 lines | Fine detail
1 line | Deep pockets
Color scanning No
Wireless No
Marker free Yes

ROI & Business Impact

Eliminates setup delays by offering true markerless, high speed metrology scanning for industrial workflows.

  • Dramatically Reduce Setup Time

    True marker free scanning with 98 laser lines removes the tedious step of placing stickers.

  • Ensure Large Scale Accuracy

    The built in photogrammetry technology secures metrology grade accuracy over massive objects without coded targets.

 How FreeScan Trio Works

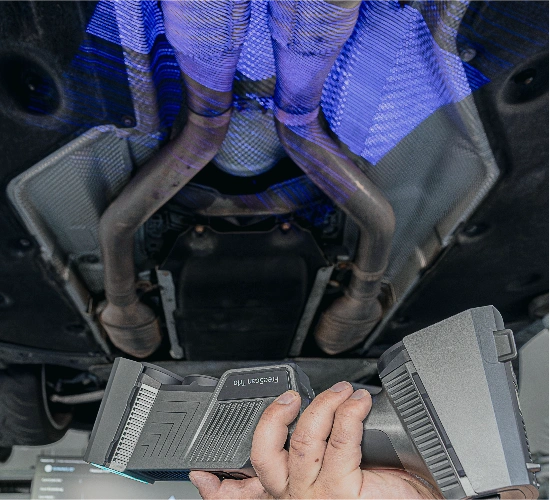

  • 1. Skip the Markers

    Rely on the 98-line laser mode and intelligent self-positioning to begin scanning immediately.

  • 2. Capture Large Volumes

    Use the built-in binocular photogrammetry to lock in global spatial position without coded targets.

  • 3. Scan Deep Pockets

    Easily switch to the 26-line or single-line mode to reach into deep holes and tight fin walls.

  • 4. Generate Inspection Data

    Leverage AI feature recognition directly in the software for instant hole and slot measurement.

1 4

Computer Requirements

Component Requirement
Operating System Windows 11 Pro (64-bit)
Processor Intel® CoreTM i7-13700H or above
Memory (RAM) 64 GB or above
Graphics Card NVIDIA RTX 4060 or higher
VRAM 8 GB or above
USB Port 3.0
Internet Required for first activation and updates

Quicks Start Resources

1 5

Frequently Asked Questions

Looking for something specific? Let us know, and we’ll be happy to assist you.

Contact Us
Can the FreeScan Trio scan black and reflective surface objects?

Yes. The scanner utilizes a powerful blue laser system which is less sensitive to ambient light, delivering excellent performance when scanning reflective and dark-colored surfaces without the need for scanning spray.
Can the FreeScan Trio be used without markers?

Yes. For objects with rich geometric features, the scanner's 98-line mode utilizes intelligent self-positioning technology to scan seamlessly without requiring any markers.
Can it scan large objects with good accuracy?

Yes. The FreeScan Trio has a patented built-in photogrammetry function that achieves volumetric accuracy of up to 0.02 + 0.015 mm/m for large-scale scanning.
What data formats can I get with FreeScan Trio?

The included intuitive FreeScan software allows you to export high-quality 3D data in various universally accepted formats, including ASC, OBJ, STL, and PLY.
 Is the scanner certified for metrology?

Yes. It is certified by a CNAS ISO 17025 accredited laboratory, compliant with VDI/VDE 2634 Part 3 and ISO 10360 guidelines, ensuring fully traceable measurement processes.
