3D Scanner & Software Bundles
Main product

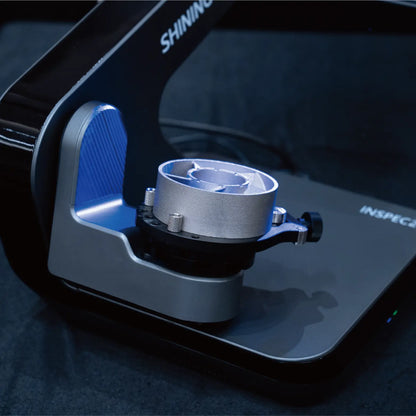

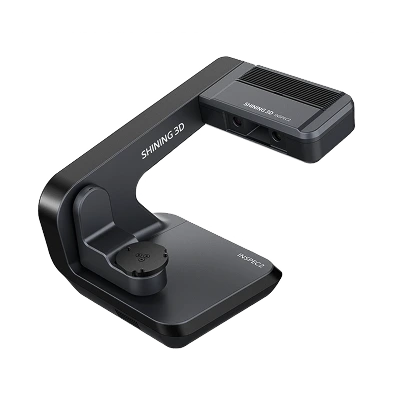

AutoScan Inspec2 Desktop 3D Scanner
Add-on products
Geomagic Control X Inspection
Verisurf Inspection Software
SHINING3D Inspect
EXModel Reverse Engineering Software
Quicksurface Reverse Engineering Software
Geomagic Design X Reverse Engineering
Your bundle
See How Businesses Use This in the Real World
-

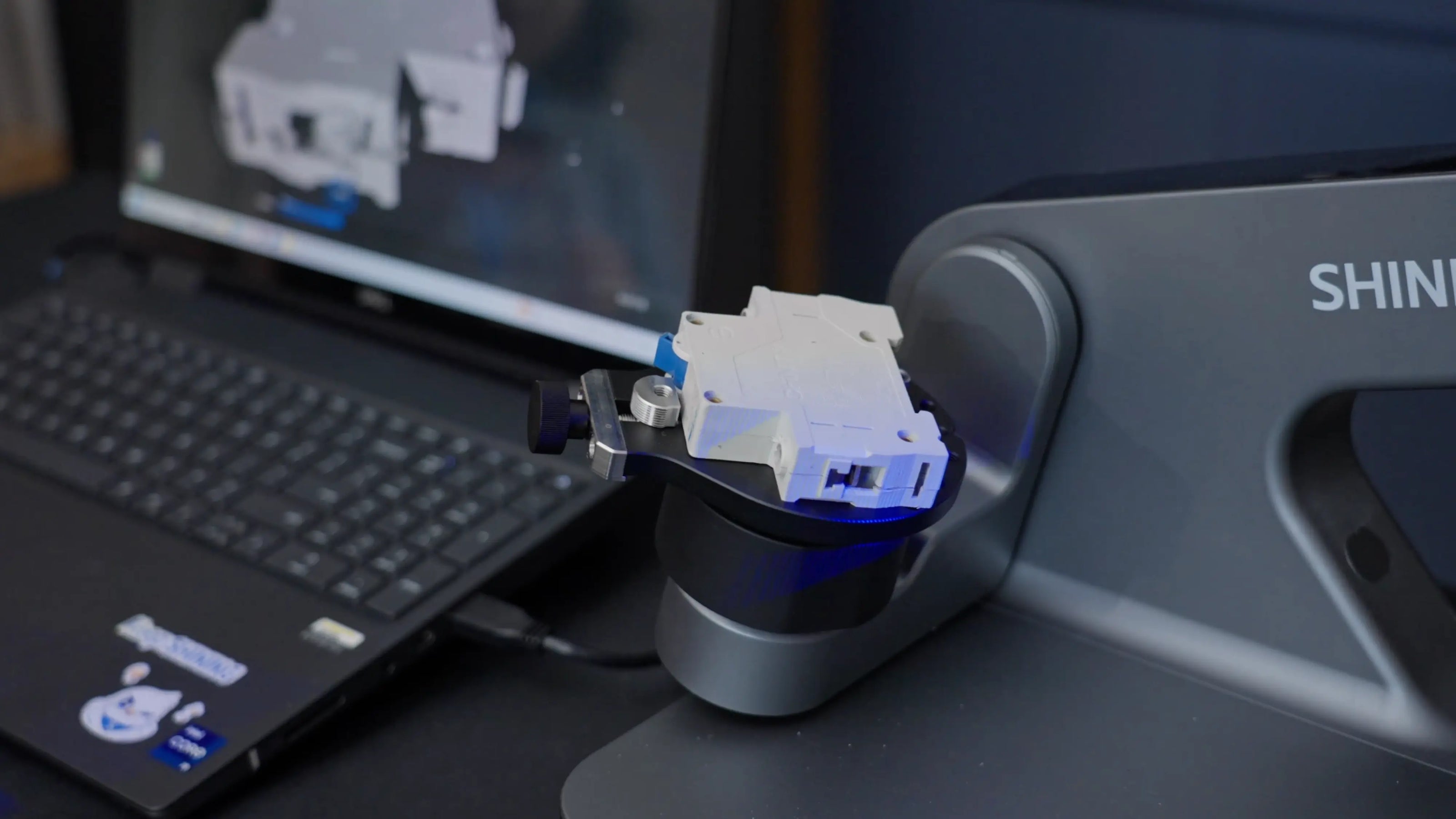

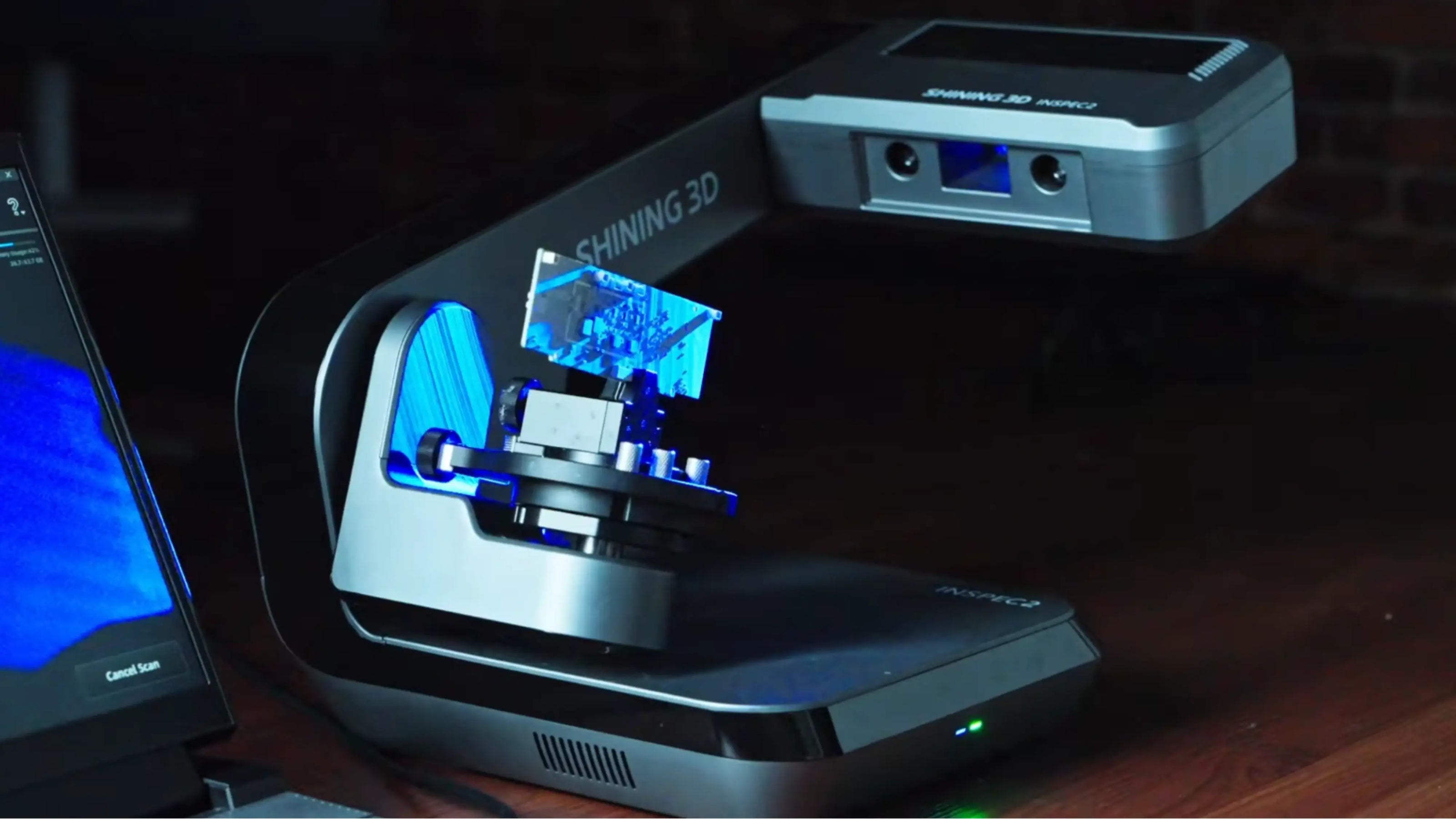

Industry & Manufacturing
Streamlines dimensional analysis and automated quality control for complex mechanical components.
-
Product Design & Creative
Digitizes consumer electronics and intricate jewelry designs for rapid prototyping and reverse engineering.
-

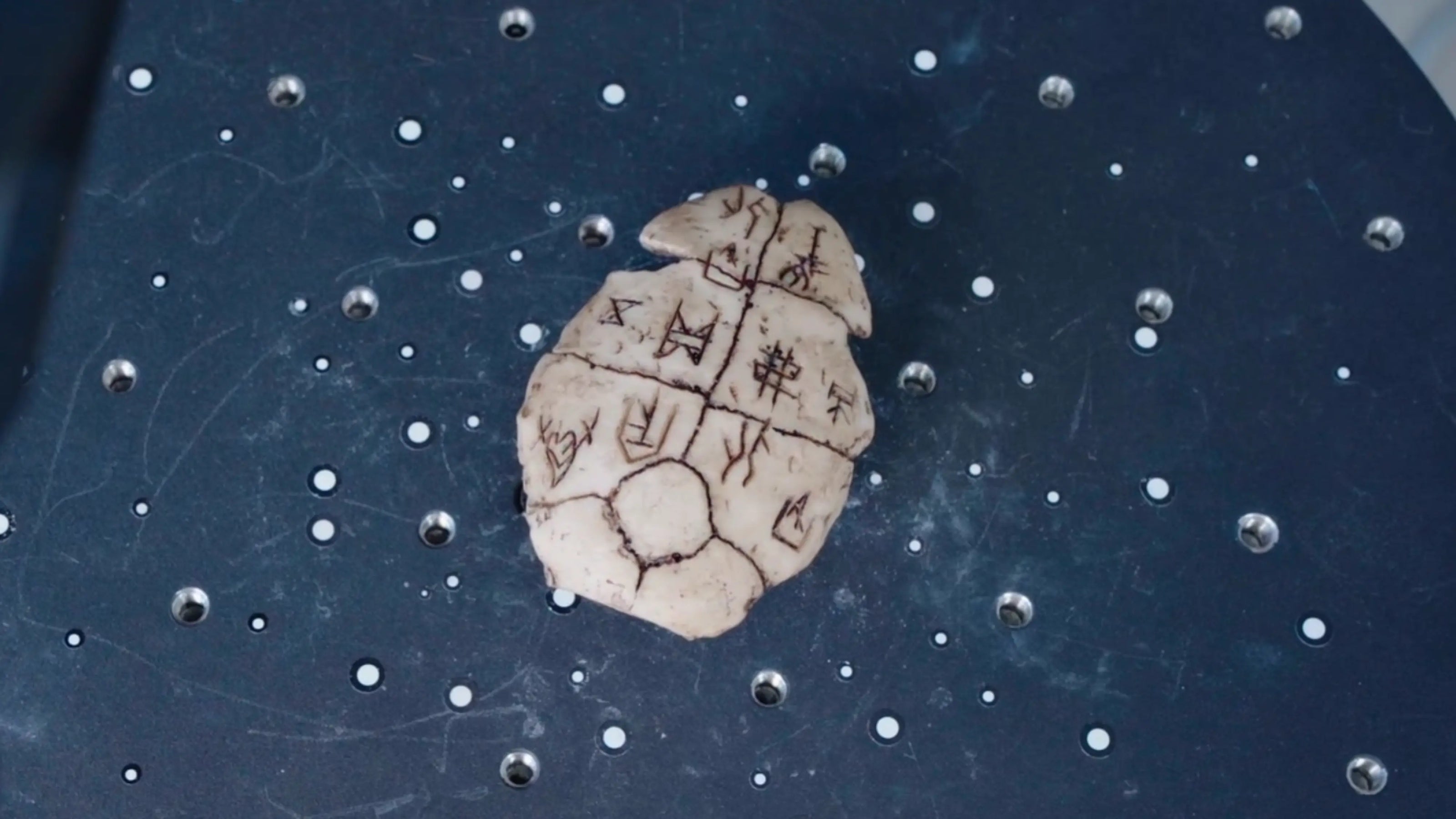

Cultural Heritage & Education

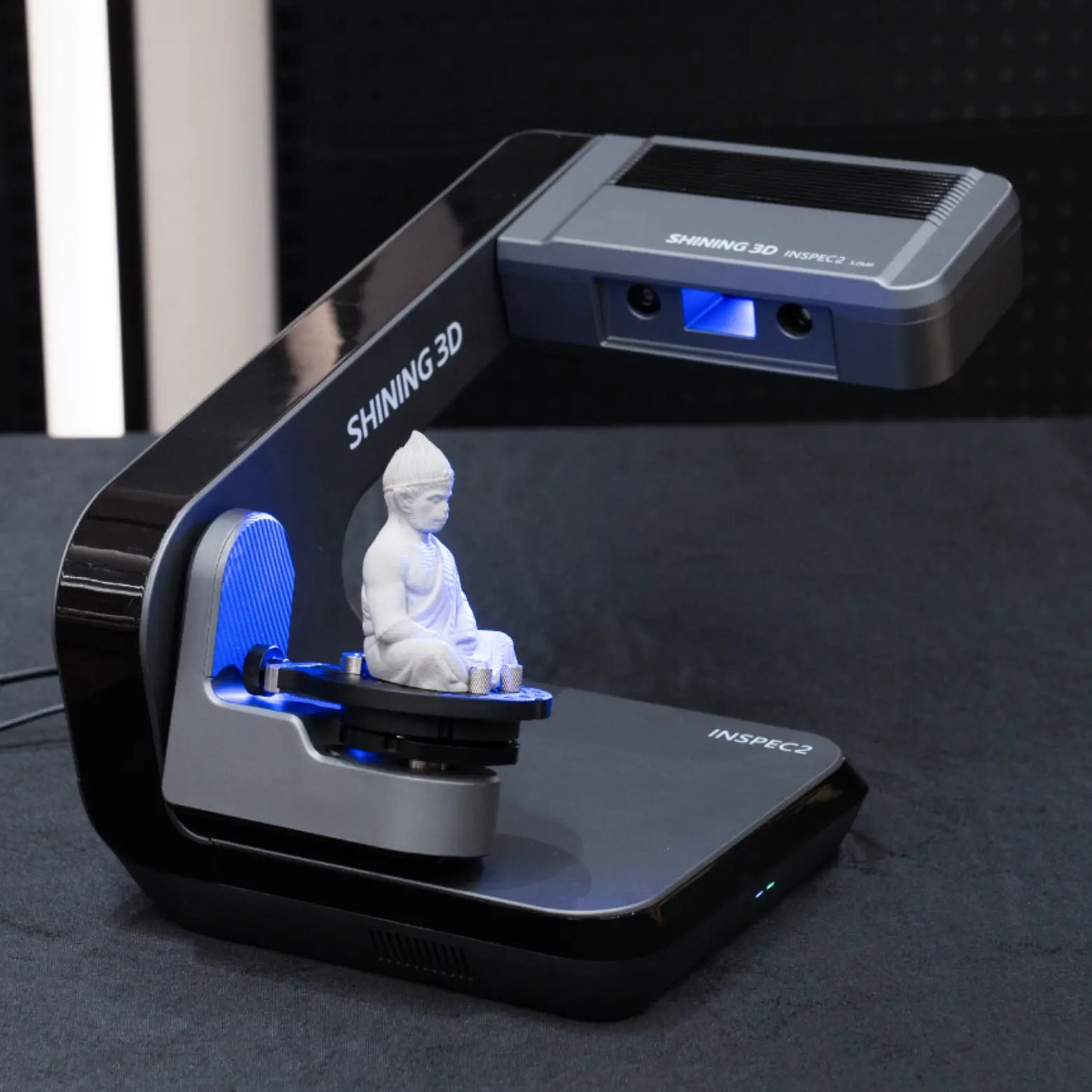

Archives miniature sculptures, artifacts, and relics with high-fidelity geometry and true-to-life color textures.
AutoScan Inspec 2 Video Review & Tutorials
Compare 3D Scanners
Select up to 4 scanners to compare key specifications side-by-side.
| Product Name |
|
||||
| AutoScan Inspec2 | |||||
| Object Size for Best Results | 2.5 mm - 300 mm (0.1 in - 1 ft) | ||||
| Accuracy up to | 0.01 | ||||
| Resolution up to | 0.05 | ||||
| Volumetric accuracy up to | 0.01mm + 0.1mm/meter | ||||
| Max fov | 140 x 90 x 80 mm | ||||
| Scan speed up to | Less than 1 second per shot | ||||
| Light source | LED Blue | ||||
| Number of laser lines | - | ||||
| Color scanning | Yes | ||||
| Wireless | No | ||||
| Marker free | Yes |
Technical Specifications - AutoScan Inspec2
| Accuracy | 0.01 mm |
| Field of View | 140 x 90 x 80 mm |
| Align Mode | Feature, Markers |
| Point Distance | 0.05 mm |
| Rotation Axis | 3 Axis |
| Camera Resolution | 2 x 5MP |
| Light Source | LED blue light |
| Color Scan | Supported |
| Dimensions | 420 × 260 × 270 mm |
| Weight | 5 kg |
| Power | DC 24V |
| Work Temperature | 0–40 °C |
| Operating System | Windows 10/Windows 11 (64 bits) |
| Output Format | STL, OBJ, PLY |
| Certification | CE, FCC, ROHS, WEEE, KC |
Computer Requirements
| Component | Requirement |
|---|---|
| Operating System | Windows 10 (64-bit) and Windows 11 Pro (64-bit) |
| Processor | Intel® CoreTM i7-8700 or higher |
| Memory (RAM) | 32 GB or above |
| Graphics Card | NVIDIA GTX1080 or higher |
| USB Port | 3.0 |
Quicks Start Resources
Frequently Asked Questions
Looking for something specific? Let us know, and we’ll be happy to assist you.
Yes. With its advanced texture module, it supports full-color scanning to capture true-to-life colors, ensuring accurate texture reproduction for digital modeling.
The scanner's field of view is 140 × 90 × 80 mm, so objects within this dimensional scope can be captured effortlessly.
The software features a Multi-Object Mode that supports scanning up to 8 objects simultaneously, which greatly improves overall scanning efficiency.
Yes. If the object has rich geometric features, you can simply use the Feature alignment mode to scan without applying any markers.
It seamlessly integrates with SHINING3D Inspect, Geomagic Control X, Geomagic Design X, PolyWorks, and EXModel for streamlined reverse engineering and inspection workflows.
