SHINING 3D FreeProbe Series

Portable and Wireless Probing Solutions for High-Precision Metrology

The FreeProbe Series from SHINING 3D bridges the gap between traditional 3D scanning and precise point probing. As a portable, optical-based probe measurement solution, it pairs perfectly with the FreeScan Trak Series to capture data in hard-to-reach or non-scannable areas. Whether you are measuring deep holes, narrow slots, or complex internal features, the FreeProbe Series ensures complete and highly accurate data acquisition directly on the shop floor.

Available Variants:

  • FreeProbe 2: Compatible with FreeScan Trak Nova and FreeScan Trak ProW
  • FreeProbe 2 Pro: Compatible with FreeScan Trak ProW
Request a Quote Get a Free Demo

The Ultimate Probing Solution for Advanced Workflows

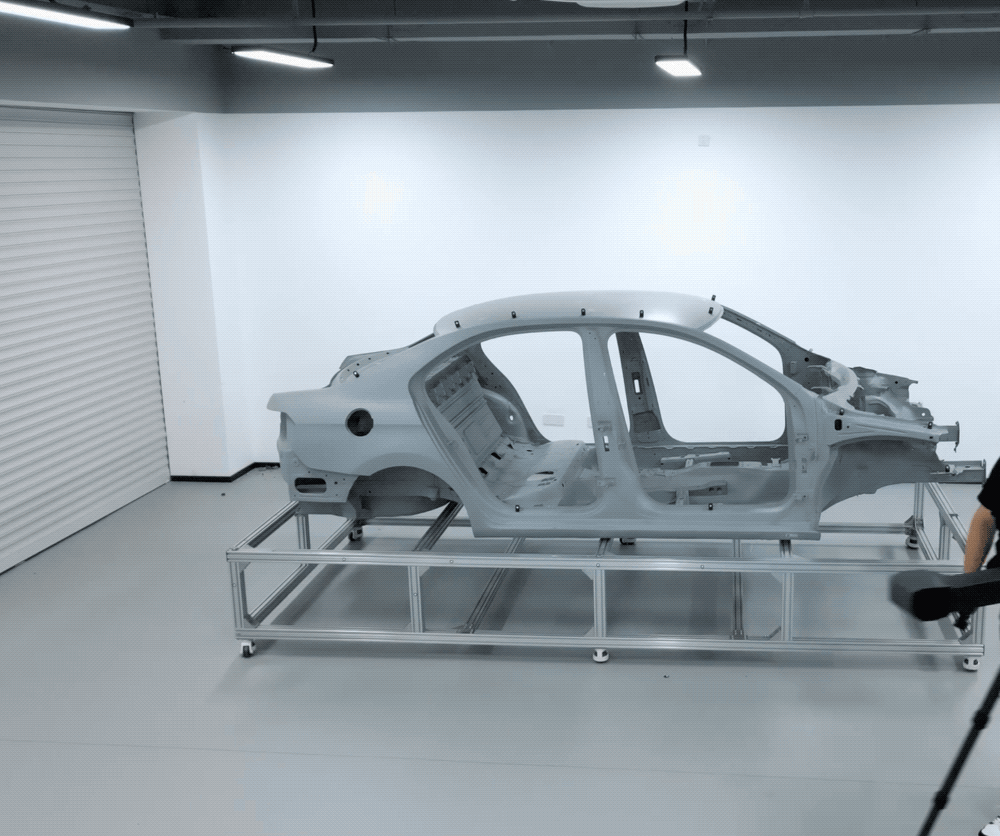

  • Wireless & Portable Freedom

    The completely wireless design allows users to move freely without being tethered by cables, drastically improving workflow efficiency and usability in complex industrial environments.

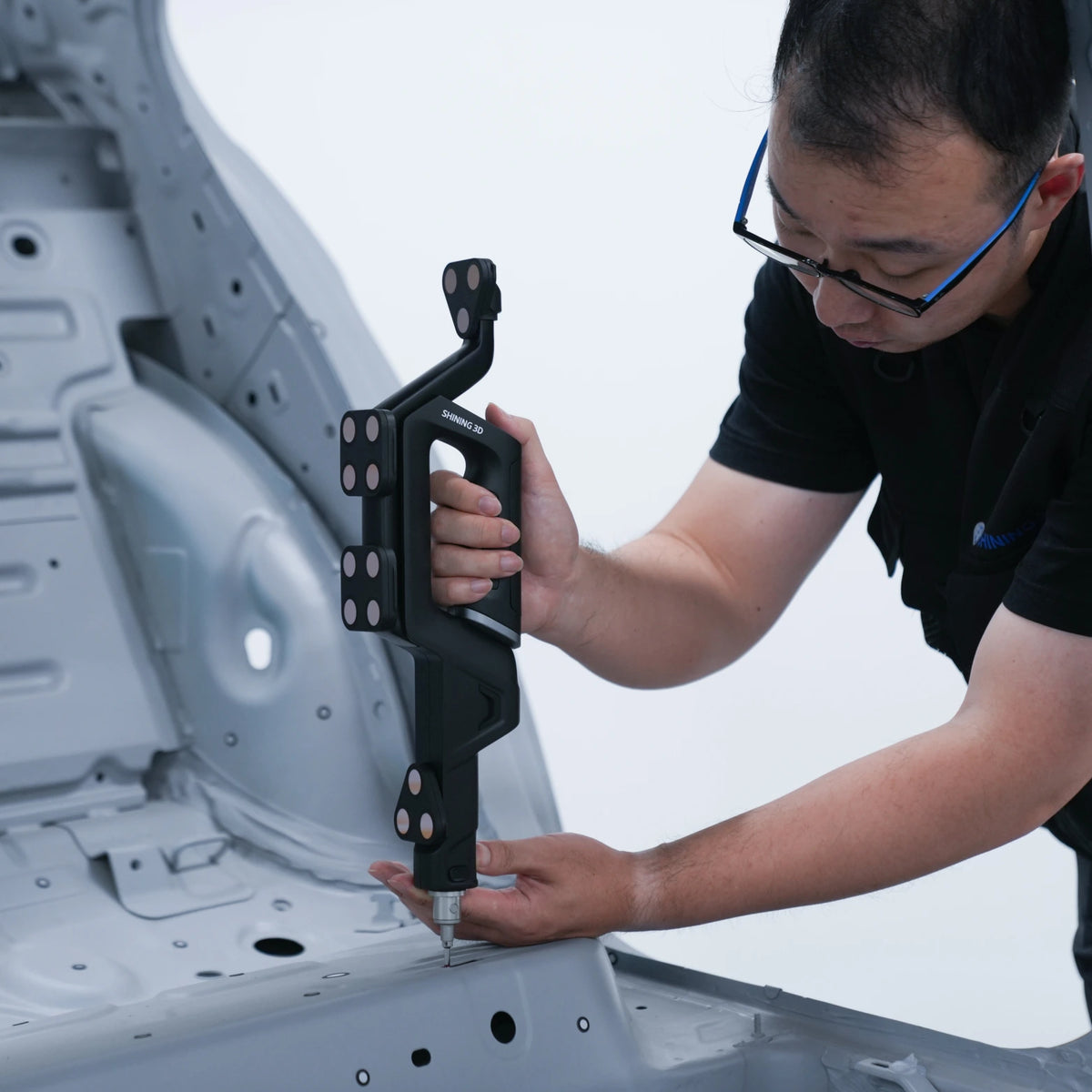

  • Deep Probing Capability

    Seamlessly measure deep holes, blind spots, and recessed features that standard laser scanners cannot capture.

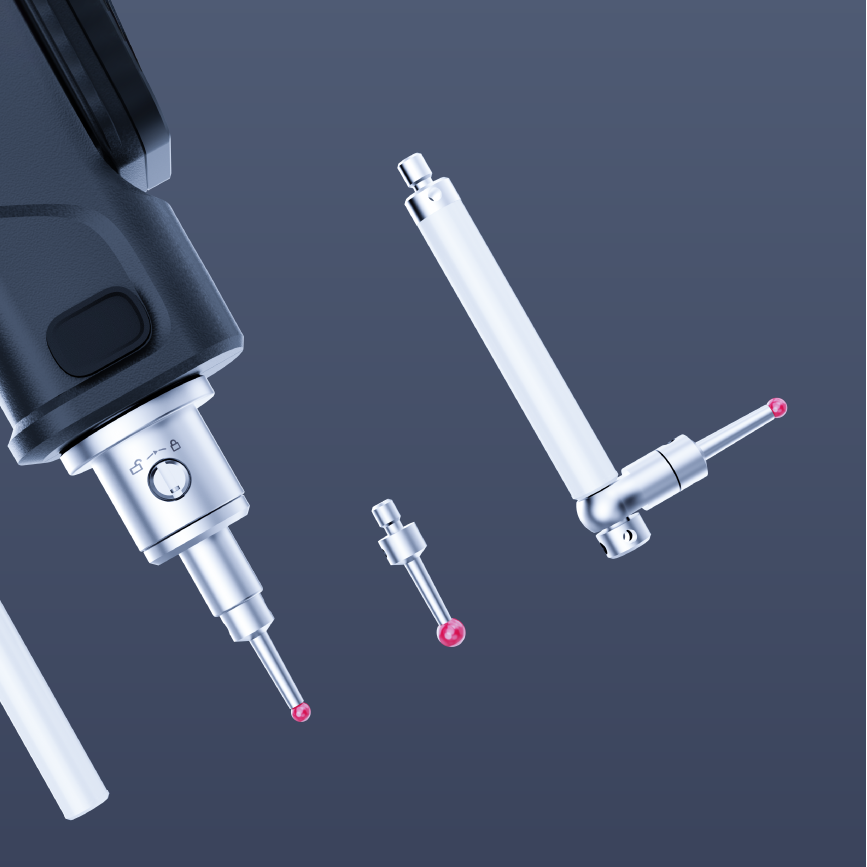

  • Various Probe Tips

    Each package comes with two probe tips of different diameters. You can adapt them with an extension rod for deeper reach or connect them with an adapter to form an L-type probe for accessing tight and obstructed areas.

  • Certified Metrology Accuracy:

    Deliver reliable, internationally traceable data verified against ISO 10360 standards and calibrated in an ISO/IEC 17025 Accredited Accuracy Laboratory.

  • Ergonomic Handling & Quick Setup:

    Featuring fast wireless pairing, the FreeProbe is ready to operate in seconds. Its lightweight body and intuitive button layout reduce operator fatigue during prolonged use.

1 5

  • Certified Metrology Accuracy:

    Deliver reliable, internationally traceable data verified against ISO 10360 standards and calibrated in an ISO/IEC 17025 Accredited Accuracy Laboratory.

  • Ergonomic Handling & Quick Setup:

    Featuring fast wireless pairing, the FreeProbe is ready to operate in seconds. Its lightweight body and intuitive button layout reduce operator fatigue during prolonged use.

1 2

What's The Difference Between FreeProbe 2 and FreeProbe 2 Pro?

The SHINING 3D FreeProbe Series offers two distinct configurations to match the complexity of your inspection tasks.

  • SHINING 3D FreeProbe 2: Ideal for everyday inspection tasks, offering an efficient, versatile, and wireless probing solution for standard applications.
  • SHINING 3D FreeProbe 2 Pro: Built for deeper probing capabilities. This advanced model can maintain stable probing performance and precise tracking even when some of its marker plates are partially blocked by the environment.
Feature FreeProbe 2 FreeProbe 2 Pro
Accuracy 0.025 mm 0.025 mm
Volumetric Accuracy (Extension) 0.046 + 0.012 mm/m 0.044 + 0.012 mm/m
Deeper Probing Performance Standard Tracks even with blocked marker plates
Continuous Operation Up to 16 hours Up to 80 hours
Weight 0.46 kg 0.59 kg

Ecosystem, Add-ons & Integration

The SHINING 3D FreeProbe Series is an expansion module designed to elevate a complete metrology ecosystem.

  • Compatible Trackers: Integrates smoothly with the FreeScan Trak Nova and FreeScan Trak ProW to maximize your scanning efficiency.
  • Customizable Tips: Includes various probing tip extensions and L-type adapters, making it adaptable to nearly any measurement requirement.

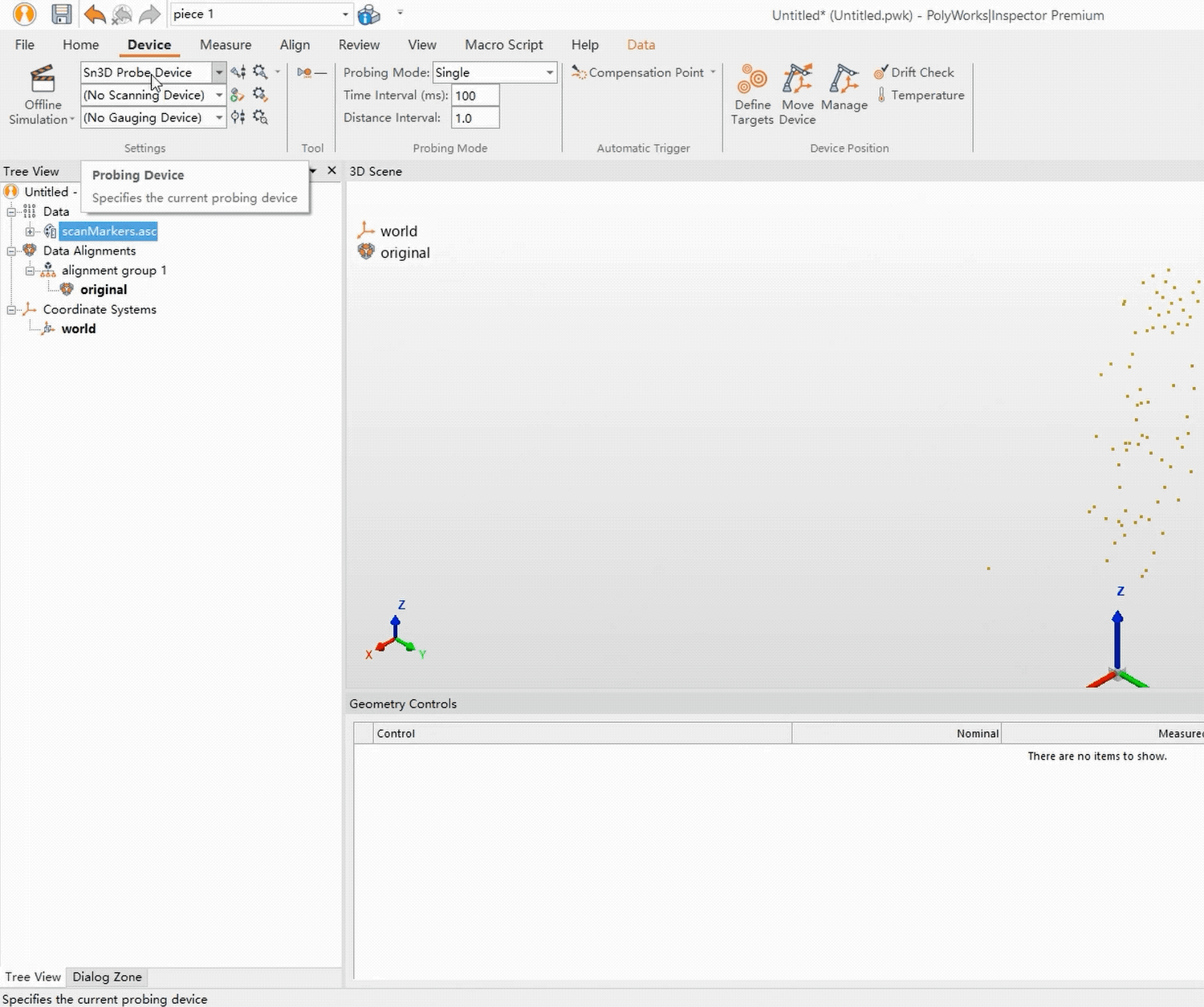

  • Seamless Software Integration: Fully compatible with major industrial inspection platforms, including SHINING3D Inspect, PolyWorks, and Geomagic Control X, ensuring streamlined data analysis.

To maximize your experience, we offer tailored bundles combining your FreeProbe with the best scanners and software.

Request a Quote

What You Get with the SHINING 3D FreeProbe Series

Unrestricted Movement

Experience comfortable work without cable restrictions, allowing for total freedom of movement around large parts and machine.

Versatile Measurement Reach

Expand your capabilities with multiple tip options, extension rods, and specialized L-type configurations to ensure no feature is out of reach.

Extended Operational Uptime

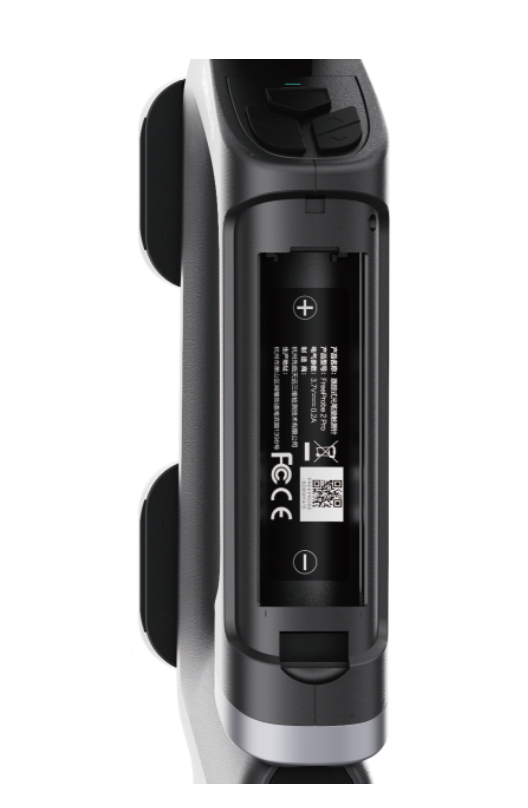

Keep your production moving. The FreeProbe 2 utilizes a 14500mAh battery for up to 16 hours of continuous use, while the FreeProbe 2 Pro relies on a massive 21700mAh battery for an incredible 80 hours of continuous measuring. Both models include two rechargeable batteries per package.

Submillimeter Confidence

Provide the highest level of metrological control with an incredible 0.025 mm scan accuracy.

Seamless Integration

Transfer your metrological data directly and easily into professional software for rapid, streamlined analysis.

  • Hands-On with Our FreeProbe Series

    See how the full workflow in real conditions. Book a free demo with our experts.

    Book a Demo

  • Got a Question About FreeProbe Series?

    Our technical team is ready to help with specifications, workflows, and integration.

    Contact Us
1 2

Technical Specifications: FreeProbe Series

Product Type FreeProbe 2 FreeProbe 2 FreeProbe 2 Pro
Compatible Trackers FreeScan Trak Nova FreeScan Trak ProW FreeScan Trak ProW
Accuracy 0.025 mm
Volumetric Accuracy 0.062 mm (12 m³) 15.6 m³ (3.5 m away from the tracking bar): 0.046 mm;
45 m³ (5 m away from the tracking bar): 0.063 mm;
76 m³ (6 m away from the tracking bar): 0.088 mm;
128 m³ (7.2 m away from the tracking bar): 0.127 mm;
206.7 m³ (8.6 m away from the tracking bar): 0.146 mm
Volumetric Accuracy for Extension 0.046 + 0.012 mm/m 0.044 + 0.012 mm/m
Weight 0.46 kg 0.59 kg
Dimensions 50 × 110 × 363 mm 50 × 113.5 × 454.5 mm
Accuracy Certification ISO 10360 Certified (Tested in the ISO/IEC 17025 Accredited Accuracy Lab)

Who is the SHINING 3D FreeProbe Series Designed For?

  • Designed For

    Industrial metrologists, quality control inspectors, and reverse engineering professionals who need to measure complex geometries, blind spots, and deep holes directly on the shop floor.

  • Not Recommended For

    Users who solely require fast surface data of organic shapes and do not need to measure internal mechanics or concealed coordinate points.

Industry Application

The SHINING 3D FreeProbe Series brings precision measurement from isolated labs directly to the manufacturing environment

  • Automotive & Aviation Industries

    Perform rigorous quality control on complex parts, internal engine features, and concealed geometric brackets.

  • Mechanical & Heavy Engineering

    Efficiently measure deep holes, narrow grooves, and complex shapes on large castings or metal structures.

  • Reverse Engineering & Prototyping

    Capture the exact dimensions of legacy mechanical components that have critical, hard-to-scan internal parameters

1 3

ROI & Business Value

Real return on investment isn't just about initial cost—it is about the direct impact on your time, energy, and bottom line.

  • Eliminate Quality Control Bottlenecks

    By capturing data in hard-to-reach places without having to destroy or cut the part, you drastically reduce time required for inspection and quality control.

  • Maximize Shop Floor Efficiency

    The wireless technology and rapid setup time mean an operator can move seamlessly around a large object, completing complex metrology tasks without moving the part to a dedicated lab.

  • Reduce Material & Manufacturing Waste

    Submillimeter precision ensures improved product accuracy, which minimizes the risk of downstream defects and costly rework.

1 3

How the SHINING 3D FreeProbe Works?

  • 1. Fast Pairing & Setup

    Turn on the FreeProbe device and utilize the fast and intuitive wireless pairing to connect it with your FreeScan Trak system in seconds.

  • 2. Configure Your Probe

    Select from the two included probe tips of different diameters. If needed, combine the tip with an extension rod for deeper reach, or attach an adapter to form an L-type probe for obstructed areas.

  • 3. Dynamic Probing

    Move freely around your workpiece. The FreeScan Trak system dynamically tracks the FreeProbe. With the FreeProbe 2 Pro, you can even maintain stable tracking when some marker plates are blocked by the part's geometry.

  • 4. Analyze & Inspect

    The collected point data transfers seamlessly into major industrial inspection software for immediate evaluation and reporting.

1 4

FreeProbe Series Video Review & Tutorials

Streamline Shop-Floor Inspections with the Shining 3D FreeProbe
Streamline Shop-Floor Inspections with the Shining 3D FreeProbe
Discover More Tutorials & Applications

Quicks Start Resources

Frequently Asked Questions

Looking for something specific? Let us know, and we’ll be happy to assist you.

Contact Us
Is the SHINING 3D FreeProbe a standalone device?

No. The FreeProbe is an optical CMM add-on designed to work in conjunction with SHINING 3D tracking systems, specifically the FreeScan Trak Nova and FreeScan Trak ProW.
How long does the battery last?

The standard FreeProbe 2 utilizes a 14500mAh battery that provides up to 16 hours of continuous measurement. The FreeProbe 2 Pro uses a larger 21700mAh battery, offering up to 80 hours of continuous operation. Both packages include two rechargeable batteries.
Can the FreeProbe reach deep or hidden features?

Yes. The package includes extension rods to reach deeper features, as well as an adapter to form an L-type probe for accessing tight or obstructed areas. Additionally, the FreeProbe 2 Pro is specifically designed to maintain precise tracking even when some of its marker plates are blocked by the object being measured.
What software is compatible with the FreeProbe?

The system features seamless integration with major professional inspection software, including SHINING3D Inspect, PolyWorks, and Geomagic Control X.
Is the accuracy of the FreeProbe certified?

Absolutely. The FreeProbe Series boasts an accuracy of 0.025 mm and is verified according to ISO 10360 standards. It is calibrated in an ISO/IEC 17025 Accredited Accuracy Laboratory, ensuring full international traceability.

Related Products & Services

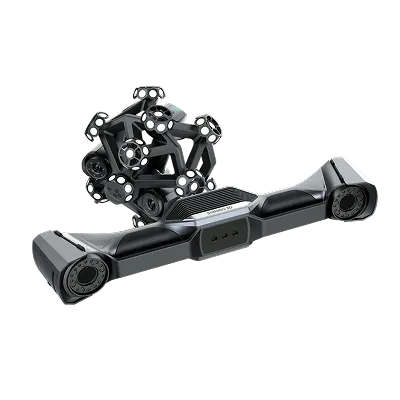

FreeScan Trak Nova
