OptimScan Q Series

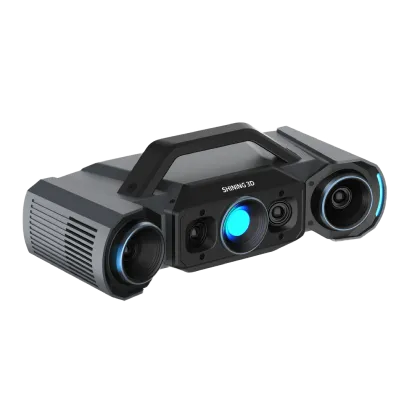

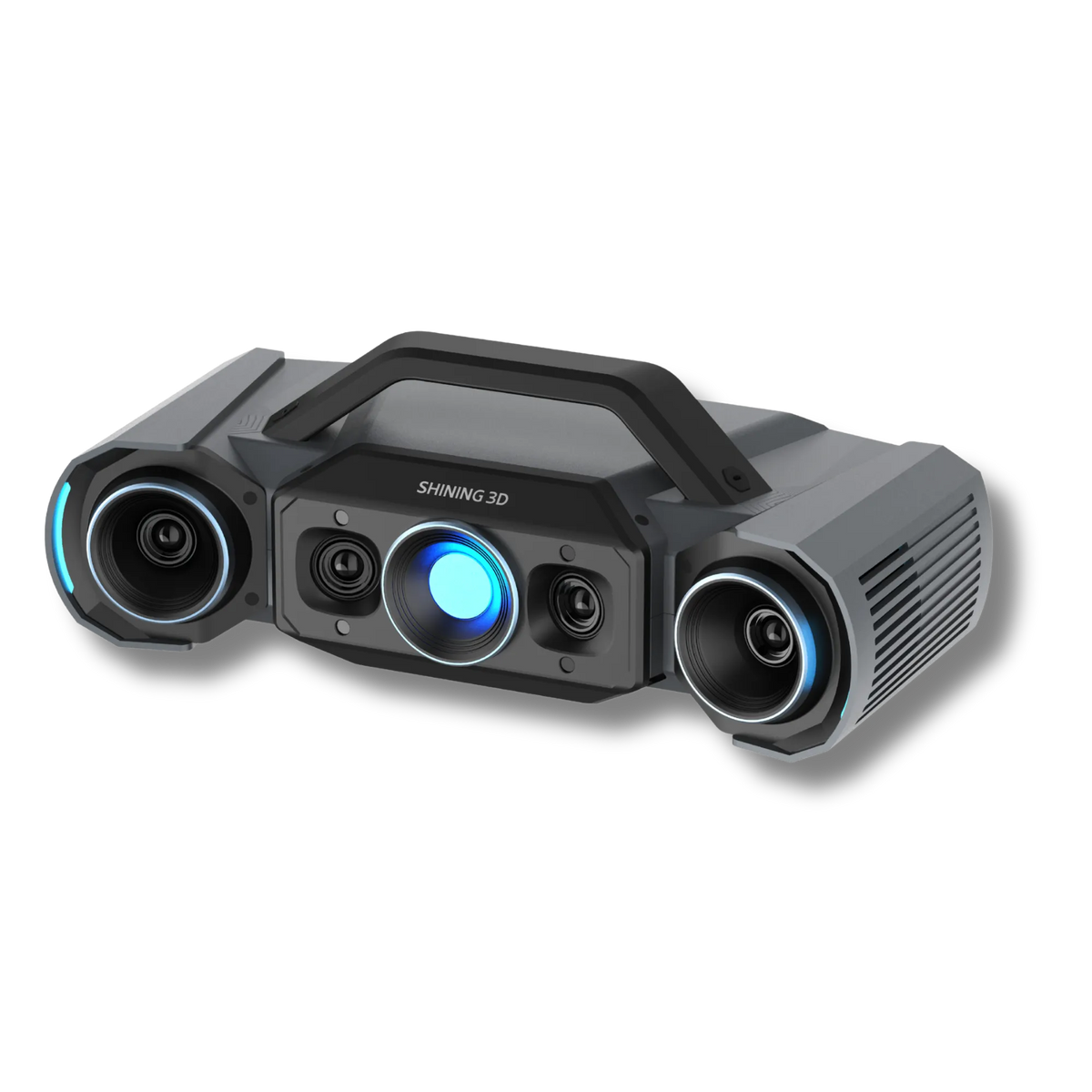

The OptimScan Q Series consist of OptimScan Q9 and OptimScan Q12. They are high-precision 3D inspection scanners with dual scan range, MSF technology, and multiple exposure for accurate data capture on complex materials. With single-shot scanning under 1 second, they enable fast, repeatable inspection for manual and automated workflows.
Some common use cases include inspection of:

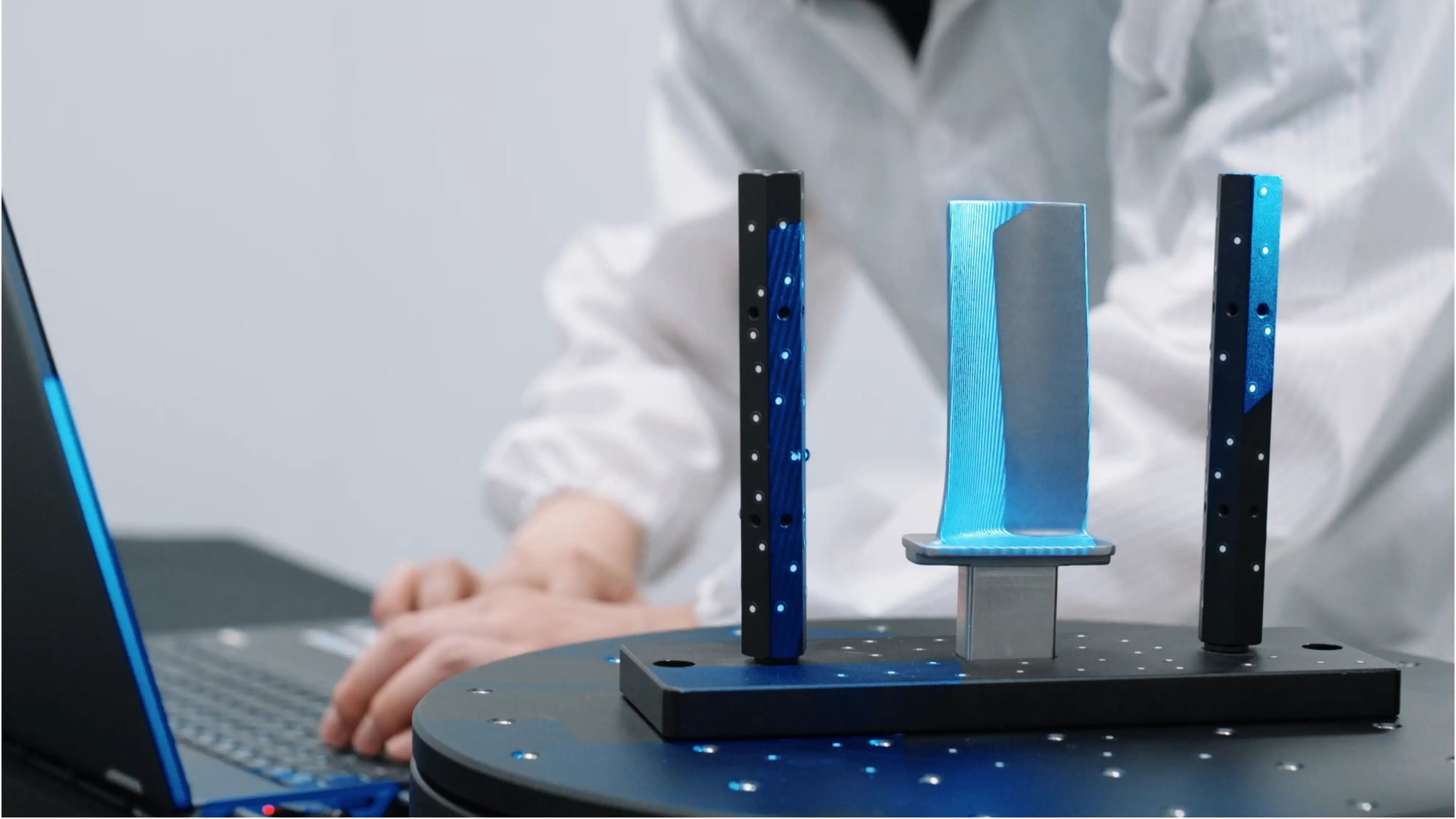

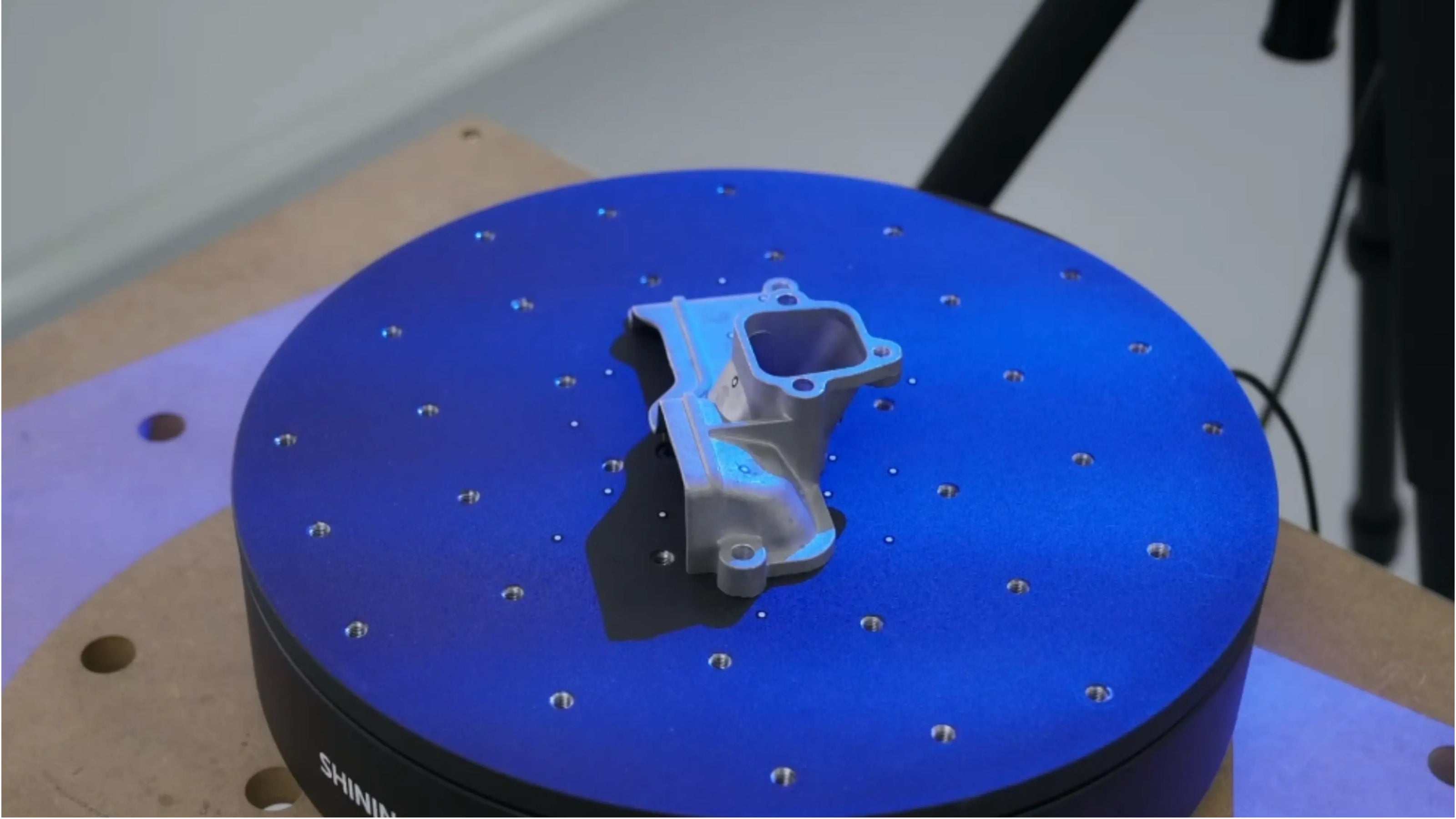

- Precision machined parts, such as engine blocks, transmission housings, turbine blades, and braking system components,
- Stamped sheet metals
- Injection molds / die casting molds

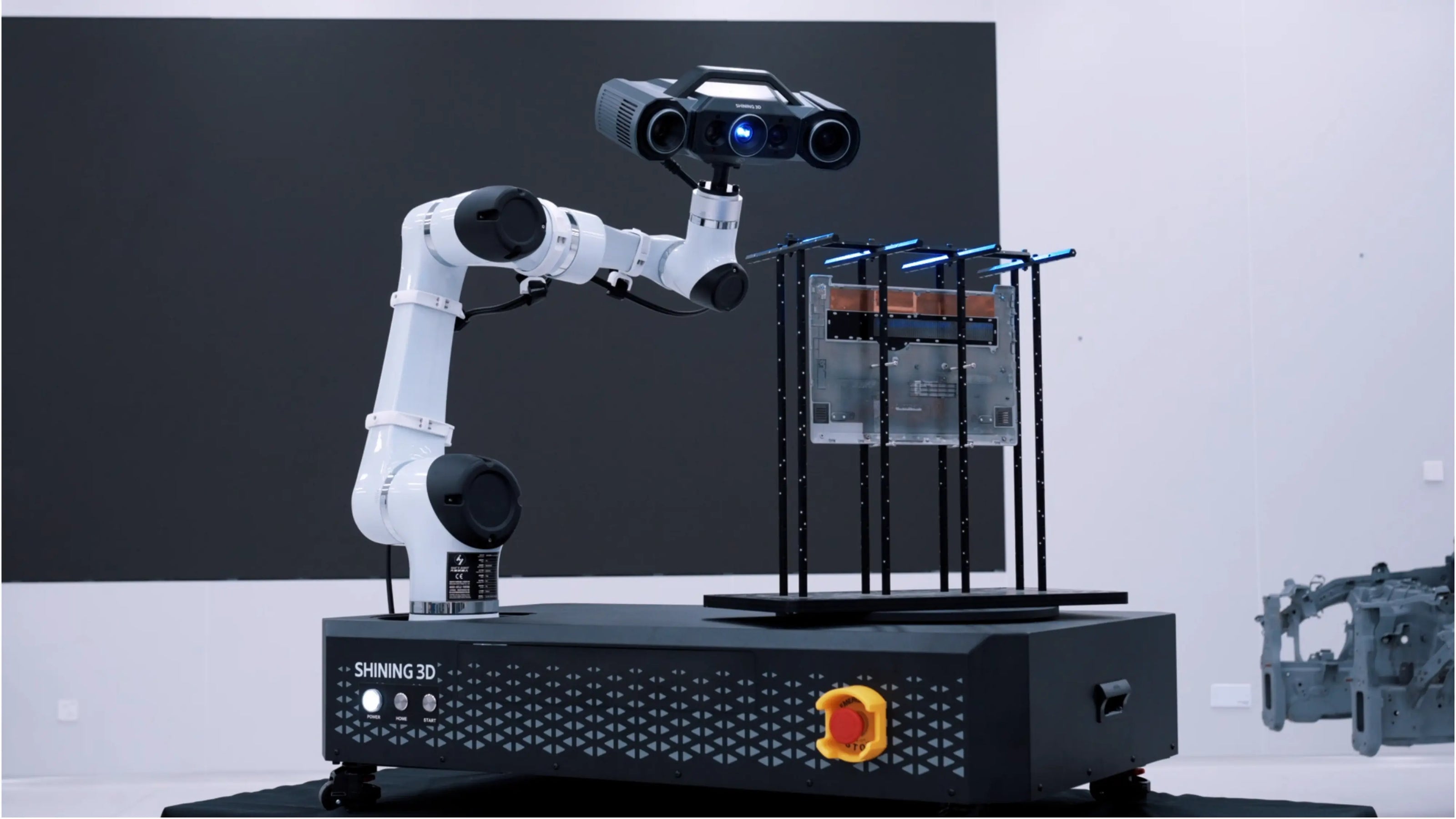

OptimScan Q9 and Q12 can be easily integrated with the robotic arms at the critical production line stations, to perform automated scanning and real-time inspection.
High-Precision 3D Scanner for Automated Metrology
Reliable High Performance
The OptimScan Q Series, including Q9 and Q12, is engineered for high-precision 3D inspection with stable, repeatable performance.
- Q9: 4 × 9 MP cameras — efficient precision inspection.
- Q12: 4 × 12.3 MP cameras — finer surface details.
Combined with powerful hardware modules and advanced 3D reconstruction algorithms, the OptimScan Q Series achieves accuracy of up to 0.005 mm, ensuring consistent, metrology-grade results.
Dual Scan Range
The OptimScan Q Series features two scan ranges that can be switched with a single click, eliminating manual adjustment of aperture and focal length. Scanned data from different ranges can be seamlessly fused in the software, ensuring both efficiency and detail.
Monocular-Stereo Fusion (MSF)
The monocular-stereo fusion function can effectively increase data coverage and improve the integrity of the scanned data, particularly at common turning corners and joints of industrial parts.
Intelligent Scanning
Powered by a built-in dual-chip computing module, OptimScan Q Series delivers fast image acquisition and data processing. Each shot takes less than 1 second and captures 12 million points with exceptional precision. To further streamline the workflow, OptimScan Q Series offers multiple exposure modes—including intelligent automatic exposure—dramatically reducing scanning time while ensuring optimal results across diverse surface conditions.
Versatile and Adaptable

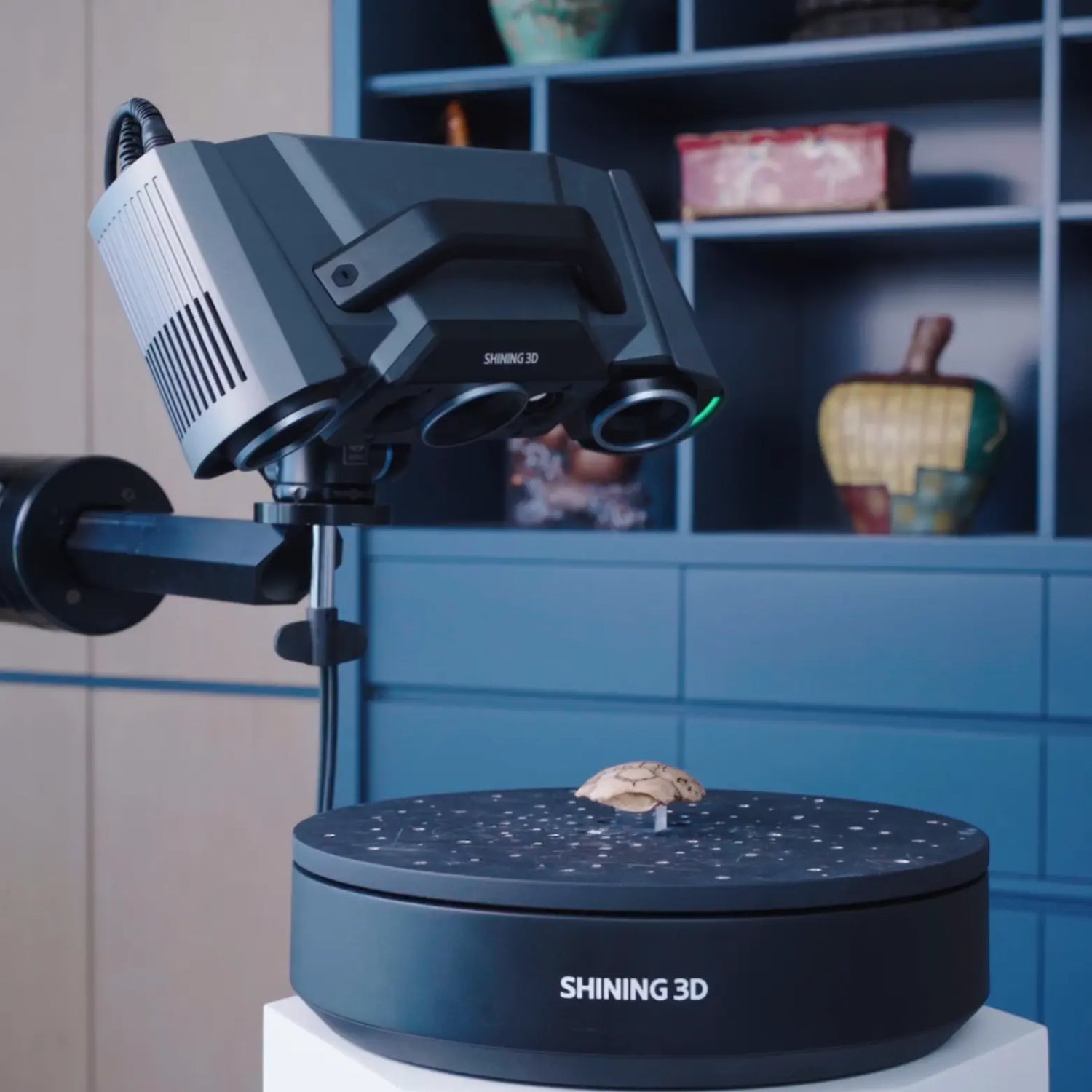

OptimScan Q Series is compact and easy to carry, offering flexible manual scanning. For semi-automated operation, it pairs with a fixed tripod and an automatic turntable with up to 20 kg load, providing increased efficiency and consistency in scanning. In fully automated mode, it integrates with a robot for precise, repetitive inspection tasks.
Automated Inspection Solution
OptimScan Q Series seamlessly integrates with intelligent 3D inspection systems, enabling fully automated workflows from scanning to report generation.
3D Scanner & Software Bundles
Why Choose OptimScan Q Series?
Technical Specifications - OptimScan Q Series
| SPECIFICATIONS | OptimScan Q12 | OptimScan Q9 | ||
| Scan range | Large range | Small range | Large range | Small range |
| FOV | 430 × 300 mm | 160 × 110 mm | 430 × 300 mm | 160 × 110 mm |
| Accuracy | 0.015 mm | 0.005 mm | 0.015 mm | 0.005 mm |
| Point distance | 0.1 mm | 0.04 mm | 0.11 mm | 0.05 mm |
| Working distance | 590 mm | 210 mm | 590 mm | 210 mm |
| Depth of field | 300 mm | 60 mm | 300 mm | 60 mm |
| Resolution | 4 × 12.3MP | 4 × 9MP | ||
| Light source | Blue LED | |||
| Weight | 3.5 kg | |||
| Dimensions | 366 × 162 × 132 mm | |||
| Data cable length | 5 m | |||
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX | |||
| Acceptance test | ISO 10360- 13 (certified in ISO 17025 certificated accuracy lab) | |||
-
Our Company
Delivering top-tier 3D scanners, printers, and training to optimize your business with precision and efficiency.
-
Who We Are
A dedicated team of 3D scanning and printing experts, providing reliable service and fast support.
-
Customer Benefits
We value your time and make adopting new technology easy with unlimited after-sales support and free shipping.
Frequently Asked Questions
Looking for something specific? Let us know, and we’ll be happy to assist you.
No. OptimScan Q9 and Q12 do not have a color camera to capture the texture information of object.
We recommend using OptimScan Q Series for small to medium-sized objects in high-precision application scenarios such as automotive, electronic, mold manufacturing, and so on.
OptimScan Q Series supports markerless scanning. For higher accuracy requirements, it can recognize 1mm, 2mm, or 4mm non-reflective markers.
OptimScan Q Series software integrates the SHINING3D Inspect module, offering comprehensive functionalities such as Compare, Cross-Section, Feature, Dimension, Gauges, Report, and Quick Measurement, enabling diverse inspection requirements.
