Wireless All-In-One 3D Scanner

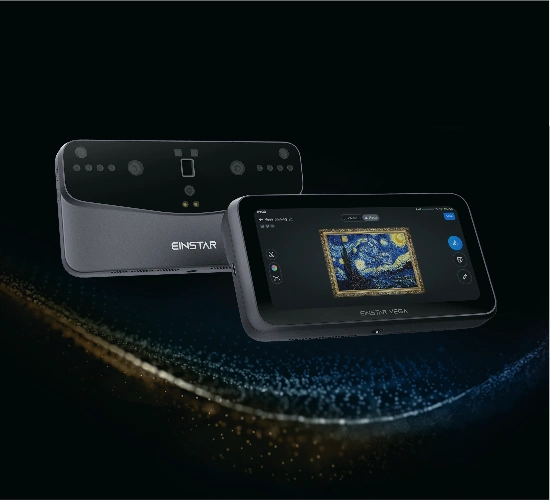

Comprehensive 3D Scanning Solution
- Dual Scanning Technology: VCSEL + MEMS
- VCSEL for long range scanning: smooth scanning under unlimited environment
- MEMS for short range scanning: stable scanning for high-detail data
- Wireless Scanning, Screen Casting, and Cloud Sharing
- 0.05mm High Resolution with 48MP Superior Texture Capture
- Built-in 32GB Computing Power & 512GB SSD for Internal Data Storage

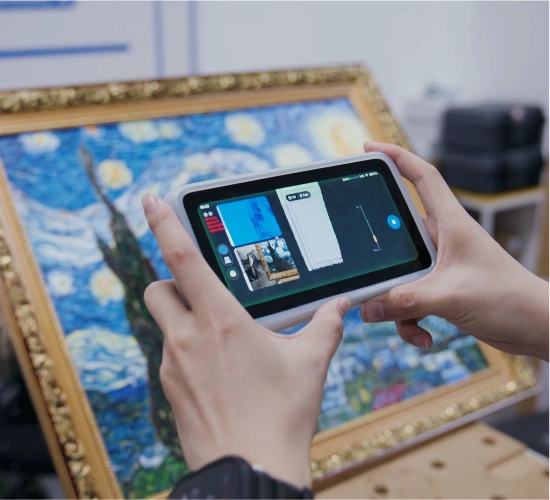

Fast Mode
- For medium to large size objects
- Working distance 350～1500 mm for medium to large objects
- Scanning speed up to 20 fps
- Reliable Scanning Outdoor and Indoors in the Sunshine or in the Dark

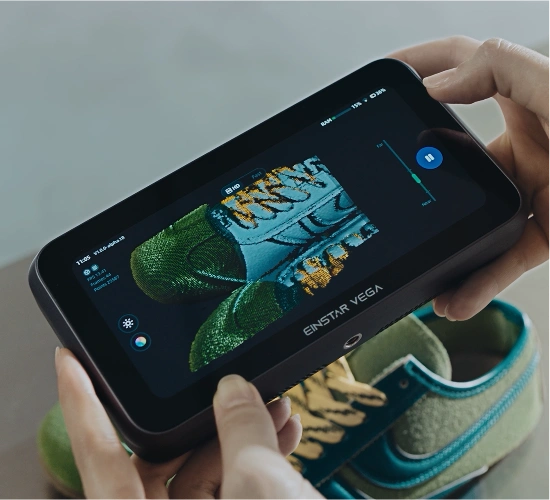

HD Mode
- For small to medium size objects
- Working distance 100～250 mm for small objects
- Scanning speed up to 15 fps
- Capable of capturing dark or rusty surfaces

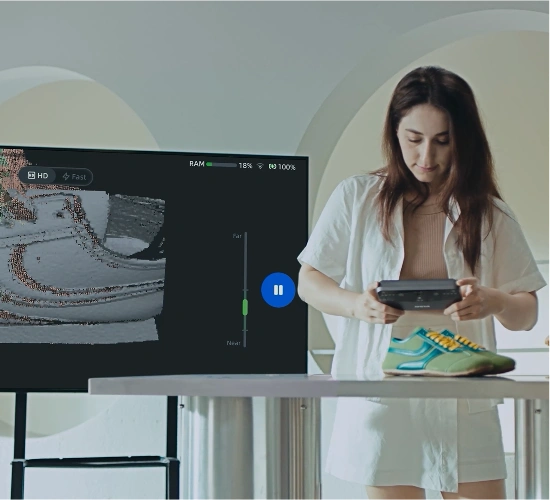

Wireless Solution
- Wireless scanning: Without connecting to PC
- Wireless transfer: Data sharing to SHINING 3D Cloud
- Wireless screen casting: Display on a second screen

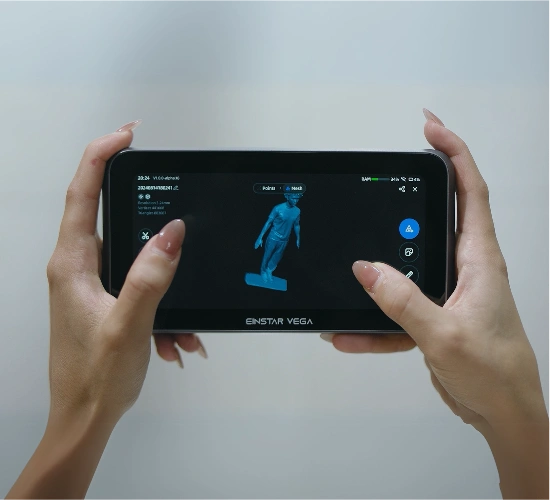

Pioneering Software Features
- 12mm markers alignment in fast mode: Minimize markers numbers when scanning super large objects
- Hybrid alignment: Enhance tracking stability and efficiency
- Scanning rewind: Support to correct data alignment error during scanning process
- Auto detecting the base plane
- Coordinate system adjustment
- Model measurement
Powerful Hardware
- 6.4 Inch 2K AMOLED
- 32 RAM
- 32GB eMMC + 512GB SSD
- 48MP RGB texture camera
- Lightweight 535g
- Continuous operation during charging

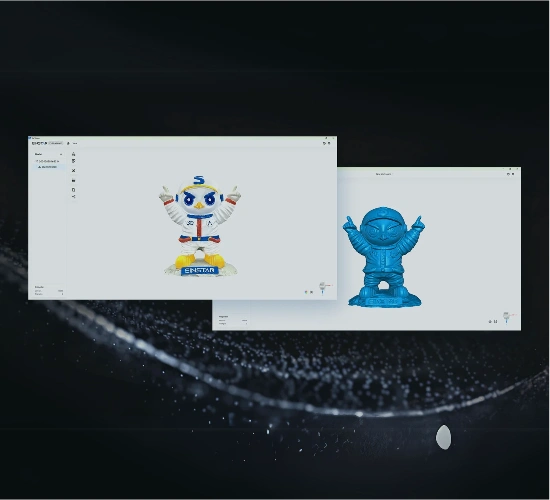

PC Software Starvision & SHINING 3D Cloud
Starvision is included with every purchase. Compatible with Windows and Mac OS.
Shining3D Cloud
- Data sharing and collaboration
- Data storage and management
- Data measurement
- Free 5GB space to each SHINING 3D user
3D Scanner & Software Bundles

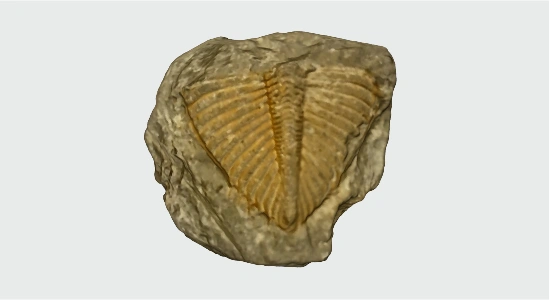

Download 3D Scan Files
Why Choose Einstar Vega?

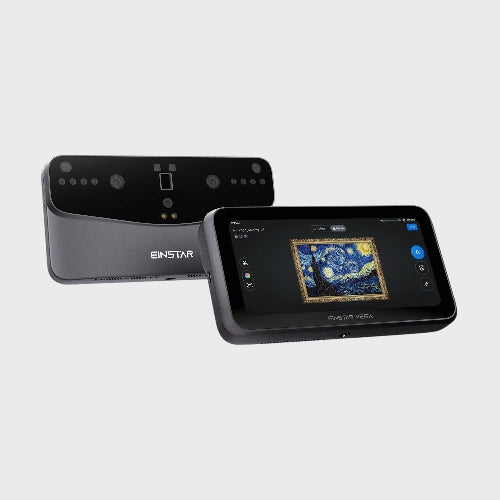

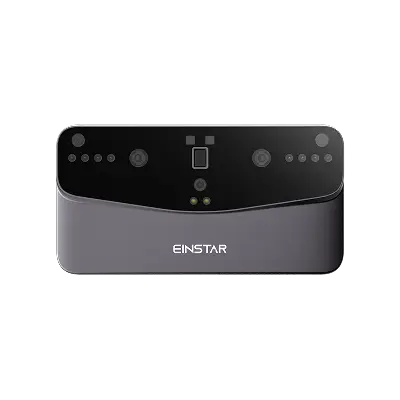

Technical Specifications - Einstar Vega
| Scan Mode | HD Mode | Fast Mode |
|---|---|---|
| Light Source | Infrared MEMS | Infrared VCSEL |
| Point Distance | 0.05 - 3 mm | 0.5 - 10 mm |
| Capture Frame | Up to 15 FPS | Up to 20 FPS |
| Working Distance | 100 - 250 mm | 350 - 1500 mm |
| Data Alignment Mode | Feature alignment, Markers alignment, Texture alignment | |
| IR Camera Resolution | 2MP | 1.3MP |
| Color Camera Resolution | 48MP | |
| Output Formats | ply; stl; obj; asc | |
| Outdoor Scan | Yes | |
| Scanner Body Weight | Limited edition: 643 g; Regular edition: 535 g | |
| Scanner Size | 180 mm × 95 mm × 26.5 mm (L × W × H) | |
| Supported OS | No computer required for 3D scanning operation; StarVision(Data processing program on PC): Windows10/11(64-bit), macOS | |
| CPU | 8-core CPU, 2.4GHz | |
| RAM | 32GB LPDDR4 Memory | |
| Internal Hard Drive | 32GB eMMC + 512GB SSD | |
| Power Charger | 65W fast charging, supports PD/PPS protocols | |
| Interface | Wi-Fi 6, USB Type C | |
| Battery | Built-in 5000mAh; External power bank charging supported | |
| Touchscreen | 6.4'' 2K AMOLED | |
| Supplemental Light | 10 LED | |
| IMU | 6 DoF | |
| Operating Temperature Range | -10℃ - 40℃ | |
| Operating Humidity Range | 0 to 90% RH (non-condensing) | |
| Packing Size | 380 mm × 305 mm × 155 mm | |
| Protection Grade | IP50 | |
Resources – Tutorials & Applications
-
Einstar Vega - Human Body Scanning Tutorial
In this tutorial, we show how to scan a human body quickly and accurately with Einstar Vega.
-
Einstar Vega - Scanning in Dark Environments Tutorial
The EinStar Vega is built to perform even in the most challenging conditions, including total darkness.
-

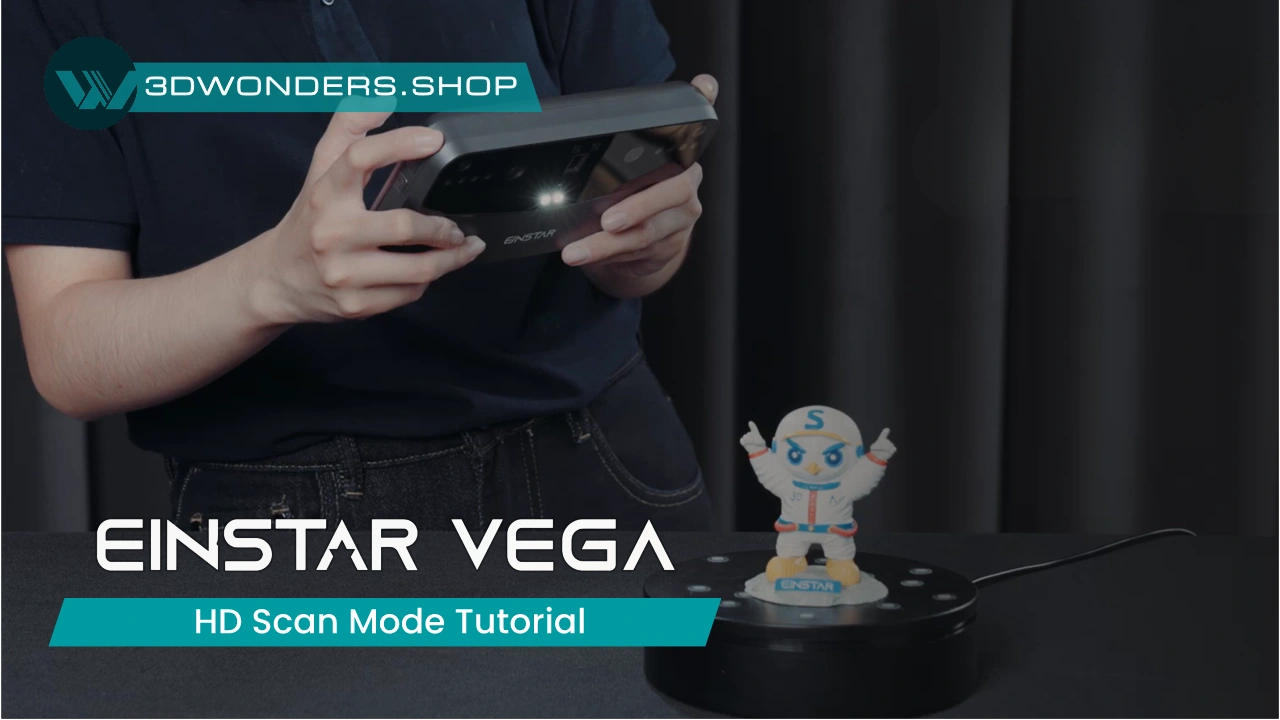

Einstar Vega - HD Scan Mode Tutorial
This HD Scan Mode Tutorial for the EinStar Vega shows you how to capture small, intricate objects like a pro!
-
Our Company
Delivering top-tier 3D scanners, printers, and training to optimize your business with precision and efficiency.
-
Who We Are
A dedicated team of 3D scanning and printing experts, providing reliable service and fast support.
-
Customer Benefits
We value your time and make adopting new technology easy with unlimited after-sales support and free shipping.
Frequently Asked Questions
Looking for something specific? Let us know, and we’ll be happy to assist you.
You can perform post-processing directly on the Vega. However, for more detailed processing (0.05 ～ 0.1 mm), you might need to use a computer.
The continuous working time is 1.5 ～ 2 hours. You can also connect it to a power bank for extended use.
The working temperature range is -10°C to 40°C.
