Shining 3D

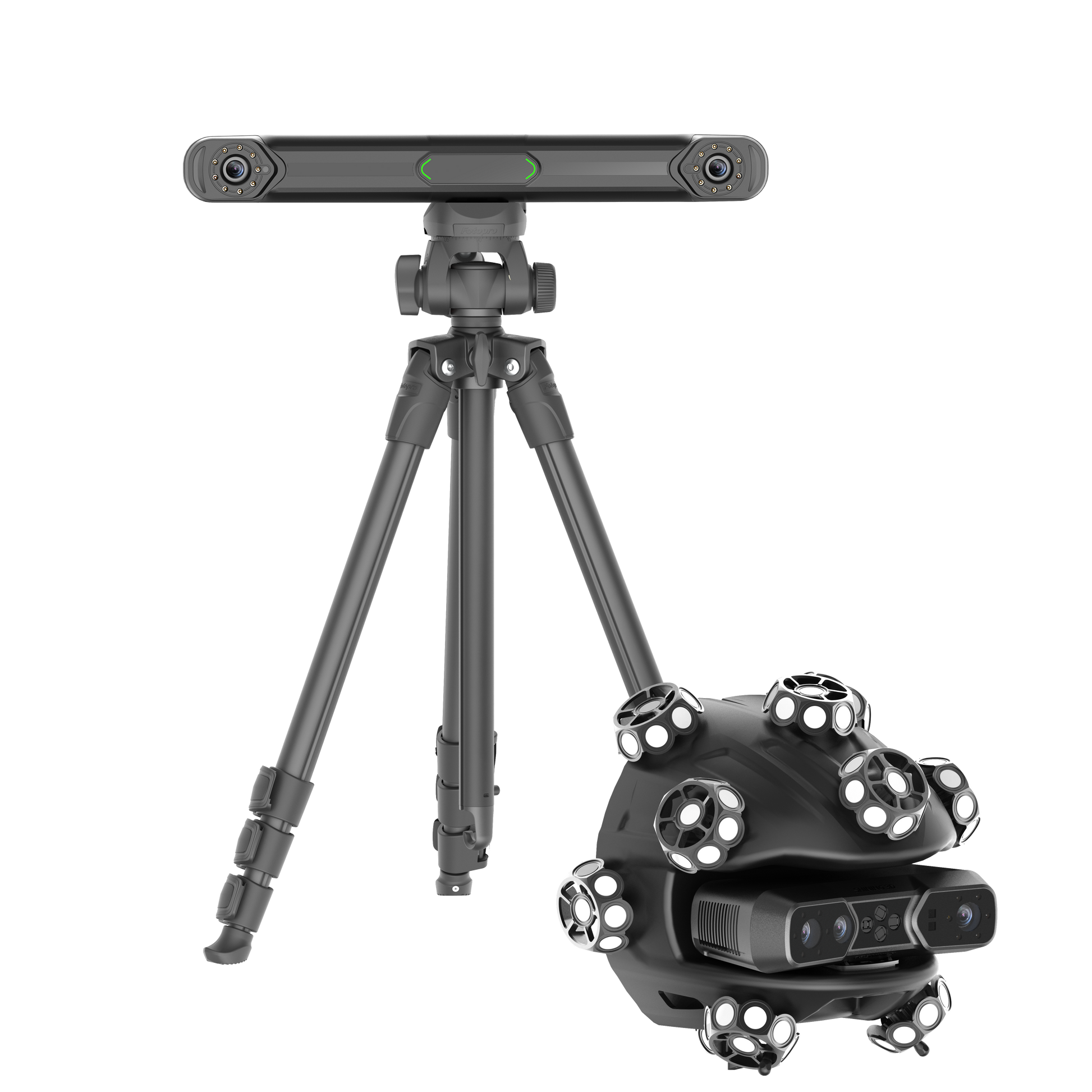

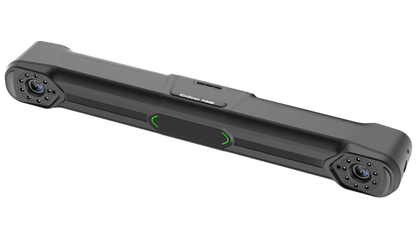

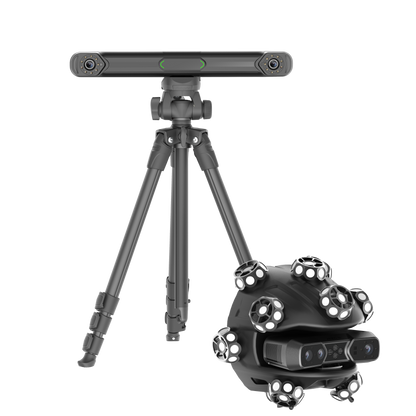

EinScan Trak Wireless Marker-Free 3D Tracking System

EinScan Trak Wireless Marker-Free 3D Tracking System

$6,999.00 USD
$6,999.00 USD
Sale Sold out
Shipping calculated at checkout.

Trak in, Markers out: Wireless Marker-Free Workflow

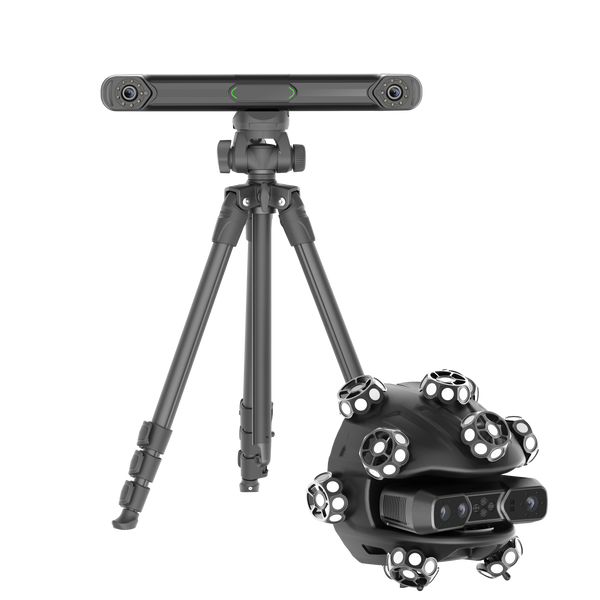

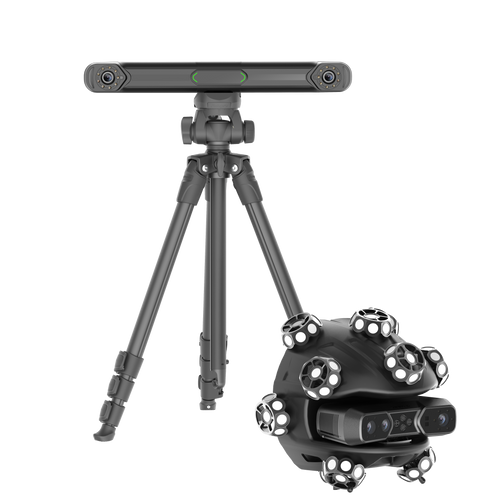

The EinScan Trak is a professional wireless, dual-form 3D scanning and tracking system designed for large object digitization. It seamlessly transforms from an optical tracking system into a handheld laser scanner, delivering high-speed 3D scanning and true color 3D models for reverse engineering.

Exclusive Promo: 1-Year of ExMeasure License

Included With Every Purchase

✔ Immediate Quick Start Resources & Tutorial Videos

✔ 1-Year Warranty

✔ One-on-One Training

✔ Authorized Reseller Technical Support

✔ Personalized Application Assistance

✔ U.S.-Based Support
View full details

  • Hands-On with Our EinScan Trak

    See the full workflow in real conditions. Book a live demo with our experts and scan your parts.

    Book a Live Demo

  • Got a Question About EinScan Trak Series?

    Speak with a 3D scanning specialist about specifications, workflows, and integration goals.

    Contact Us | Call (888) 608-9088
1 2

Who's The EinScan Trak Designed For?

  • Designed For

    Professionals in industrial design, cultural heritage preservation, and automotive customization, and industrial reverse engineering who need low preparation 3D scanning for large objects without markers.

  • Not Recommended For

    Metrology inspection, or applications involving strict microscopic measurement of ultra-tiny transparent parts where specialized microscopic desktop scanners are required.

Product Key Features

Download Brochure

  • Marker-Free Tracking

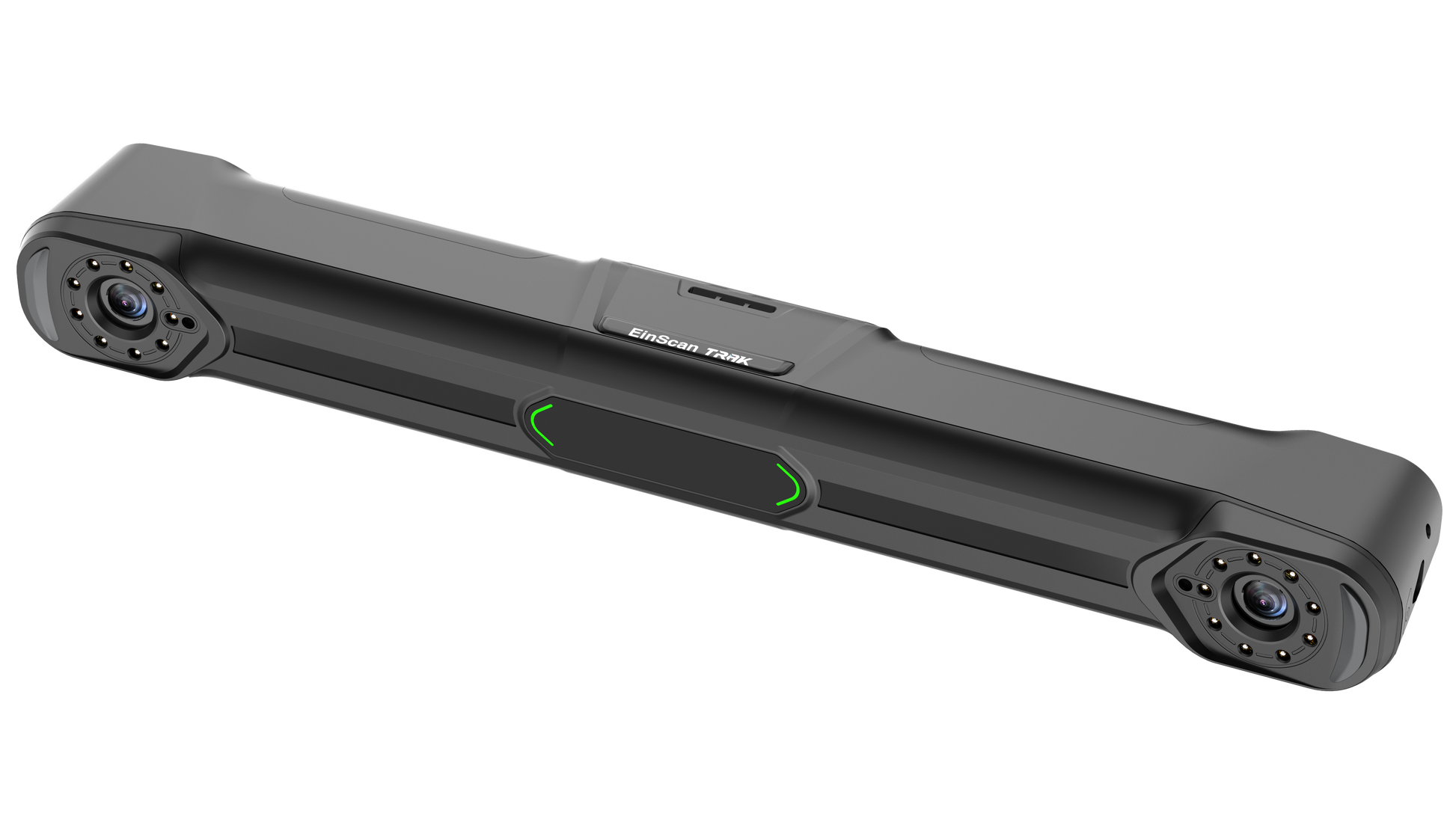

    Achieve low preparation 3D scanning. The optical tracking system captures large areas directly, enabling object scanning without markers to save hours of workflow time.

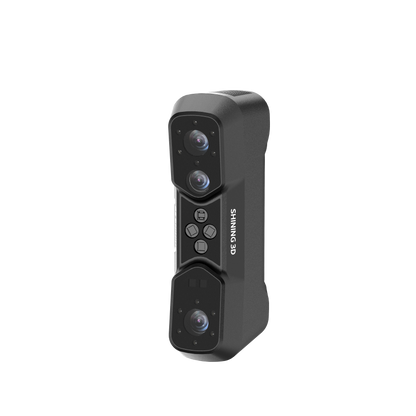

  • Dual Form Flexibility

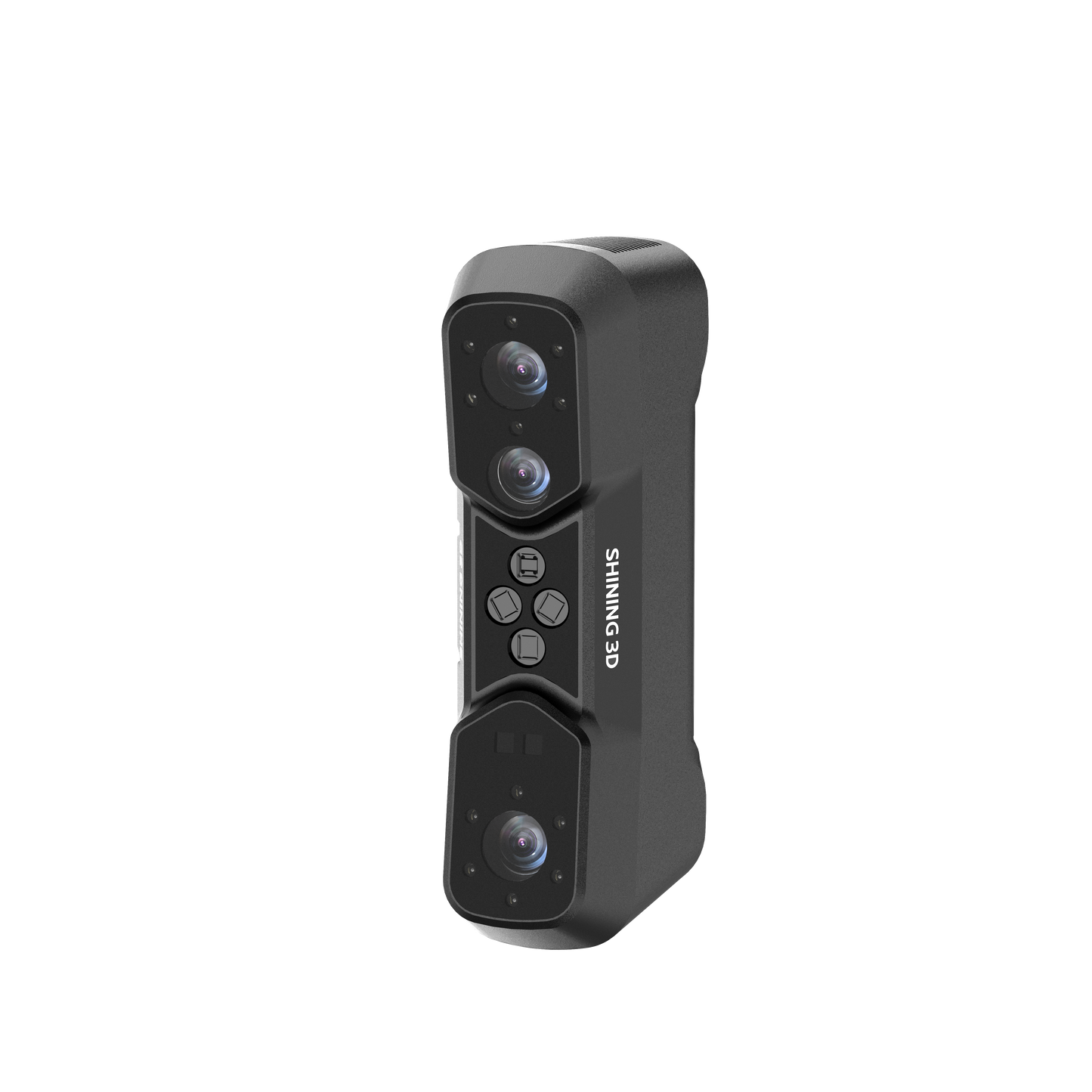

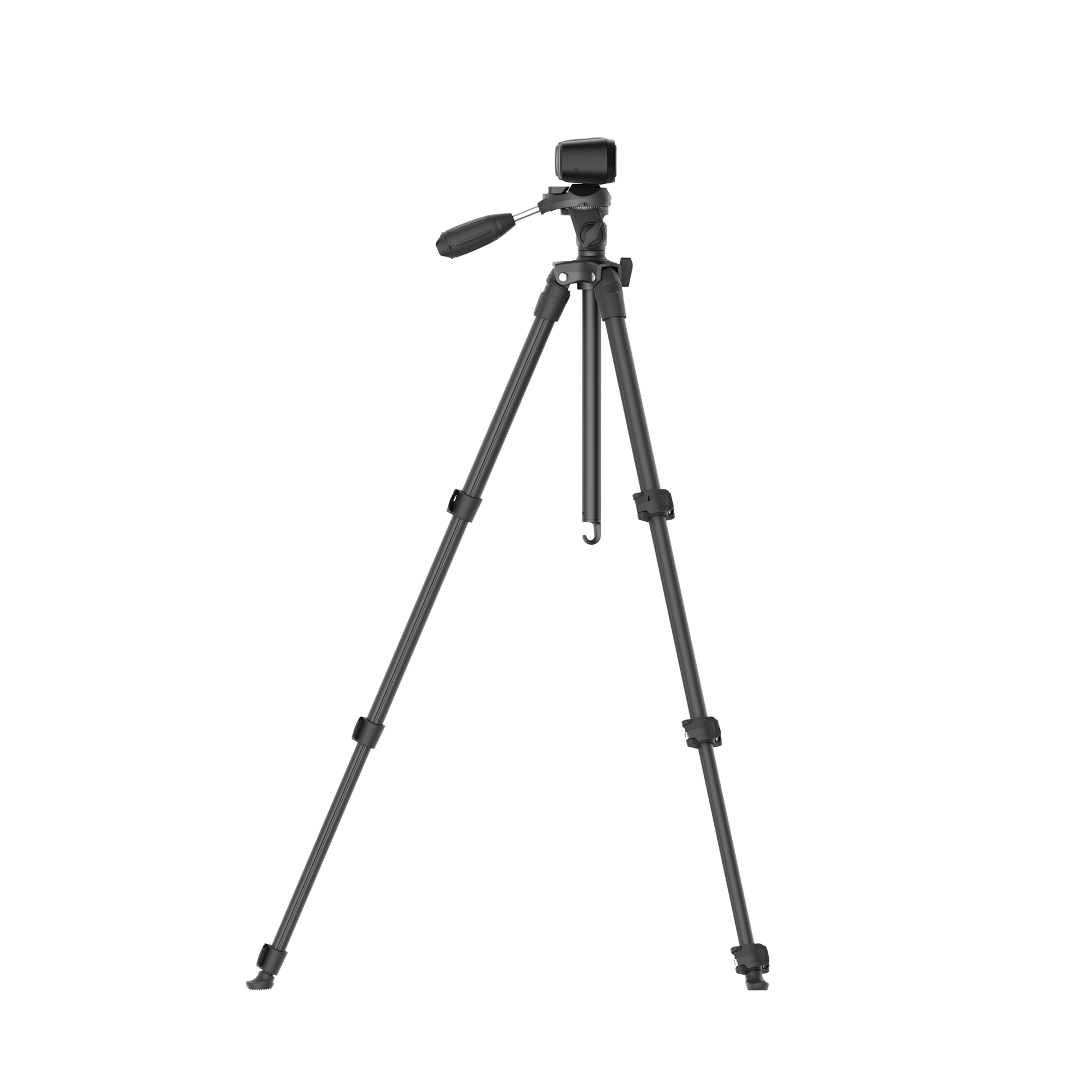

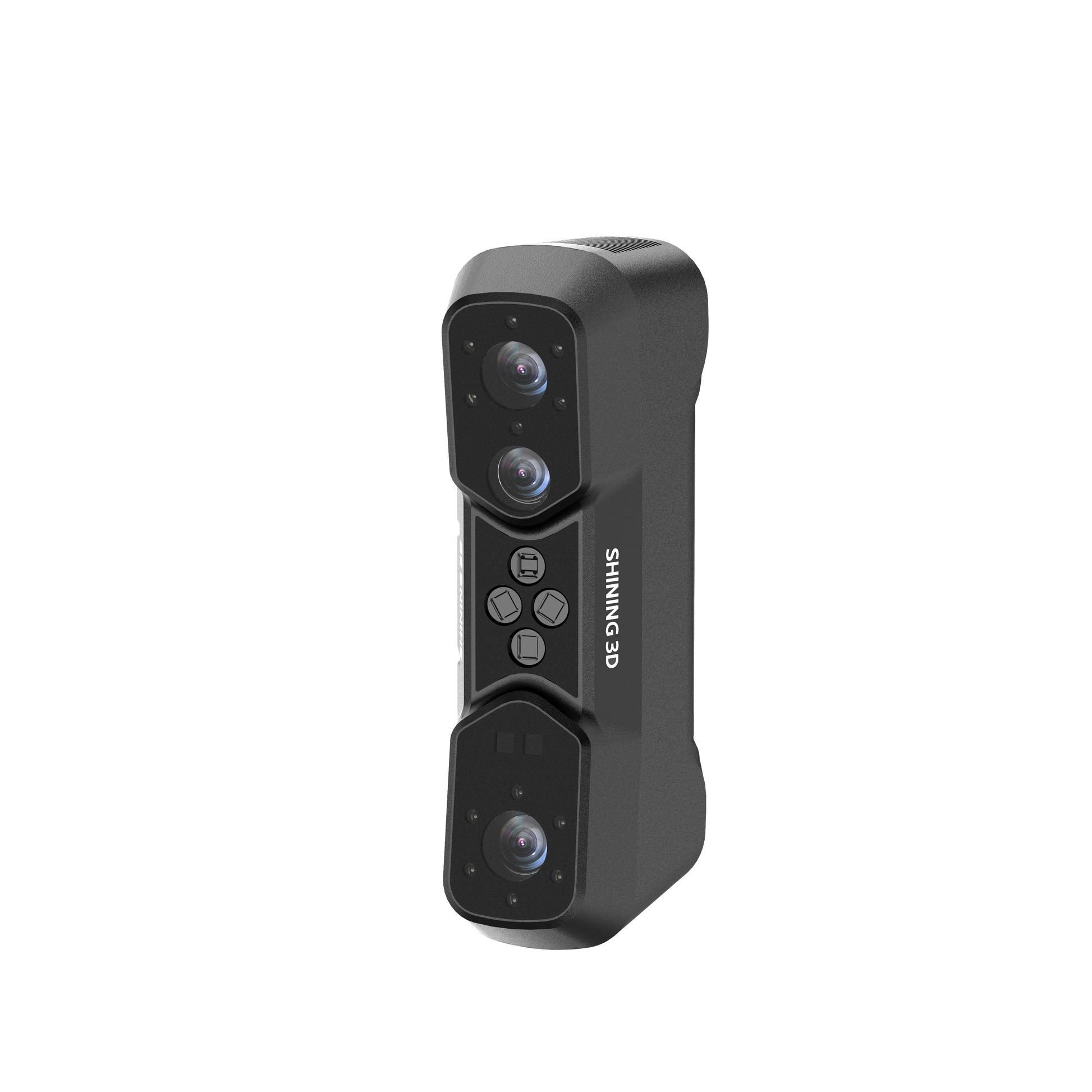

    Embrace a true tracker + scanner workflow. Use tracking mode for a 15 m³ tracking volume, or detach the unit for a handheld scanner mode in narrow spaces.

  • Smart Data Merge

    Utilize multi resolution scanning within a single project. The smart merge feature combines large-area tracking with Local Resolution details for complete 3D model capture.

  • Three Blue Laser Modes

    Switch seamlessly between 19+19 crossed laser lines for high efficiency scanning, 7 parallel lines for sharp edge capture, and a single laser line for deep hole scanning.

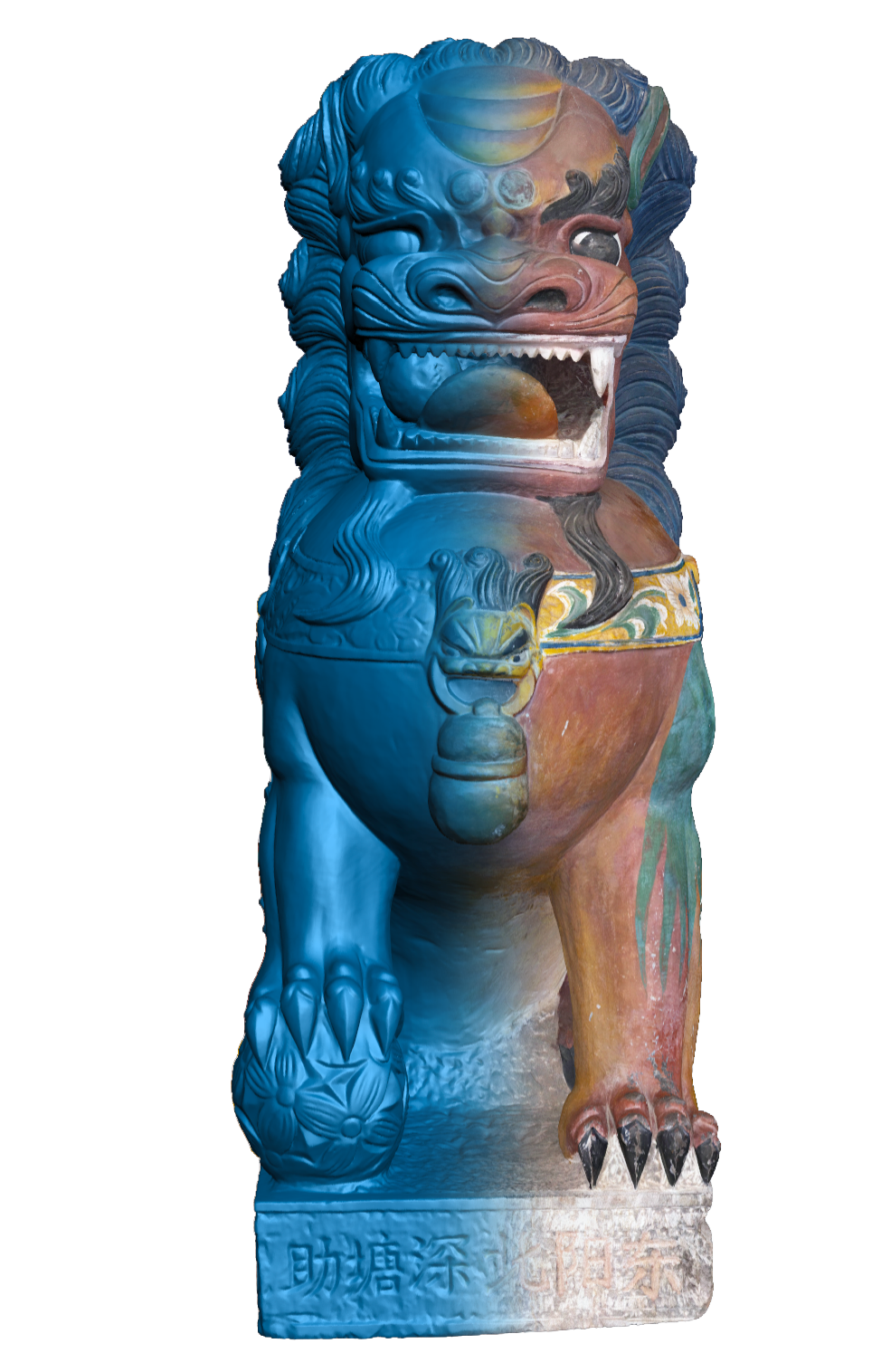

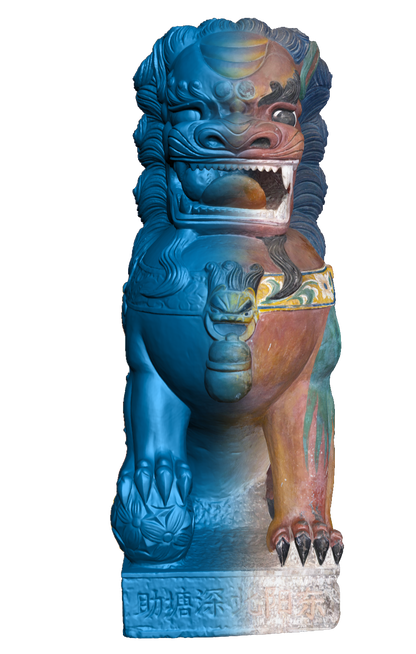

  • 5MP True Color Capture

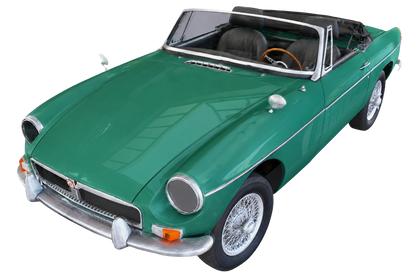

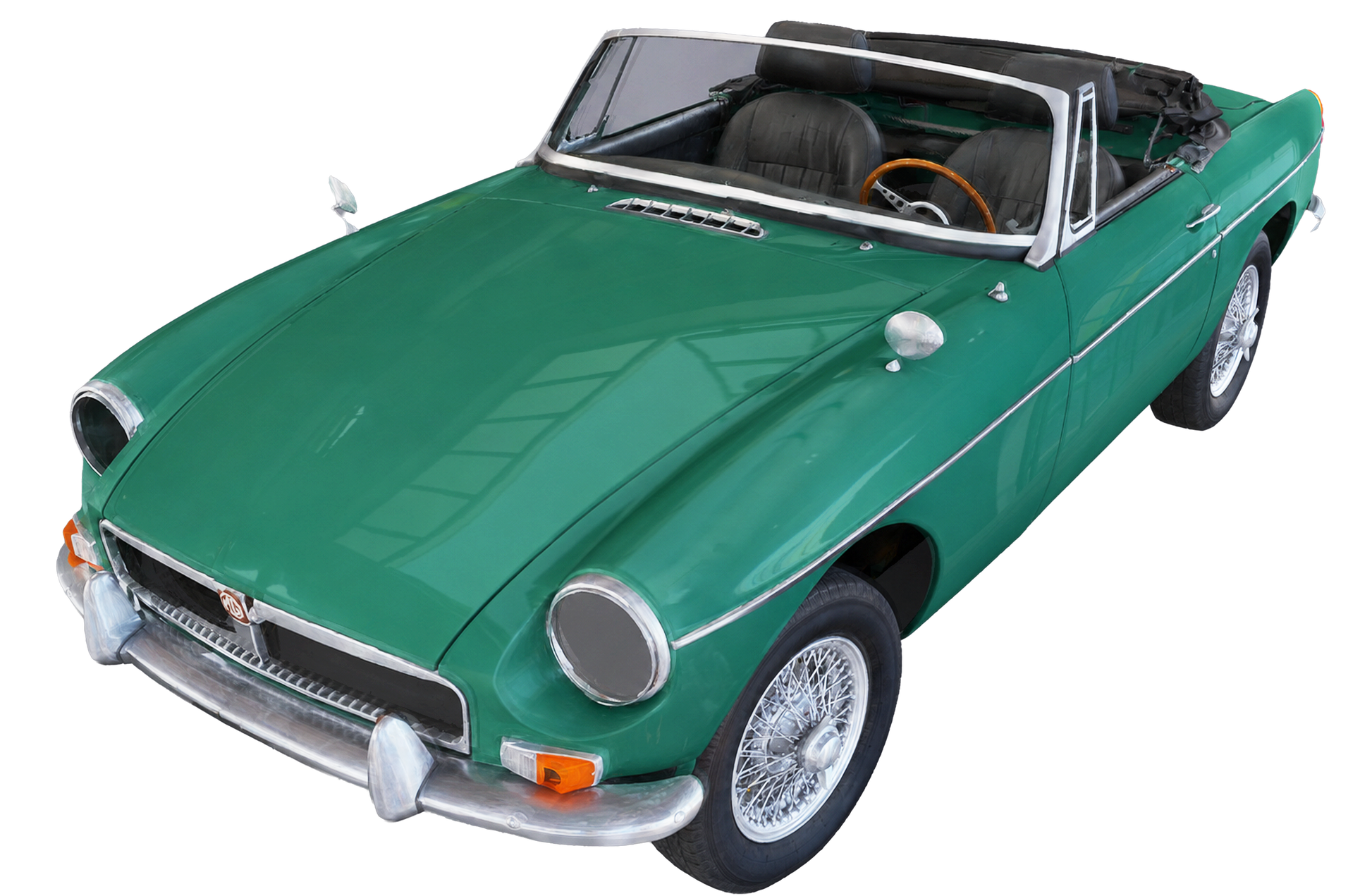

    The 5MP texture camera provides realistic color reproduction simultaneously, bringing true color 3D scanning to cultural heritage, digital archiving, and AR/VR asset creation.

  • Reliable Wireless Workflow

    Enjoy hot swappable batteries providing up to 5.5 hours of continuous tracking. Wi-Fi 6 scanning via an independent LAN ensures a stable data capture workflow.

1 6
Download Brochure

3D Scanner & Software Bundles

Main product

EinScan Trak Wireless Marker-Free 3D Tracking System

EinScan Trak Wireless Marker-Free 3D Tracking System

$6,999.00

Add-on products

EXModel Reverse Engineering Software

EXModel Reverse Engineering Software

$432.00
Quicksurface Reverse Engineering Software

Quicksurface Reverse Engineering Software

$540.00
Geomagic Design X Reverse Engineering

Geomagic Design X Reverse Engineering

$3,992.00
Quicksurface for Solidworks (Mesh2Surface)

Quicksurface for Solidworks (Mesh2Surface)

$3,690.00
Geomagic for SOLIDWORKS

Geomagic for SOLIDWORKS

$2,739.00

Your bundle

EinScan Trak Wireless Marker-Free 3D Tracking System
$6,999.00
Total $6,999.00

Request a Quote

Your bundle:

See How Businesses Use It in the Real World

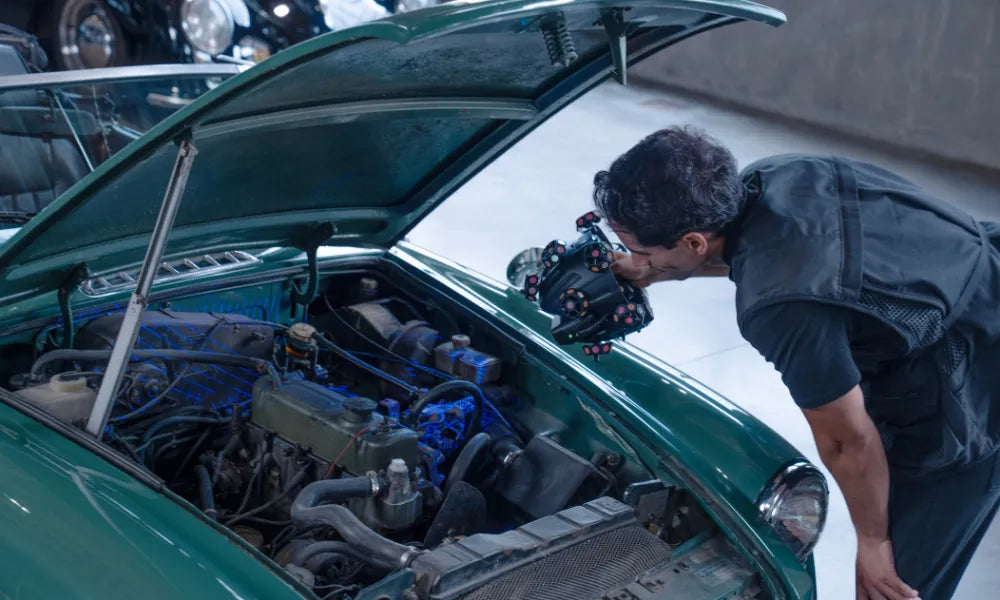

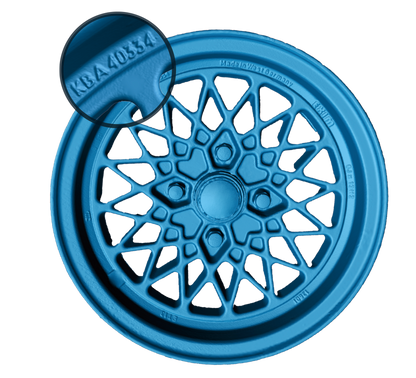

  • Automotive & Aerospace

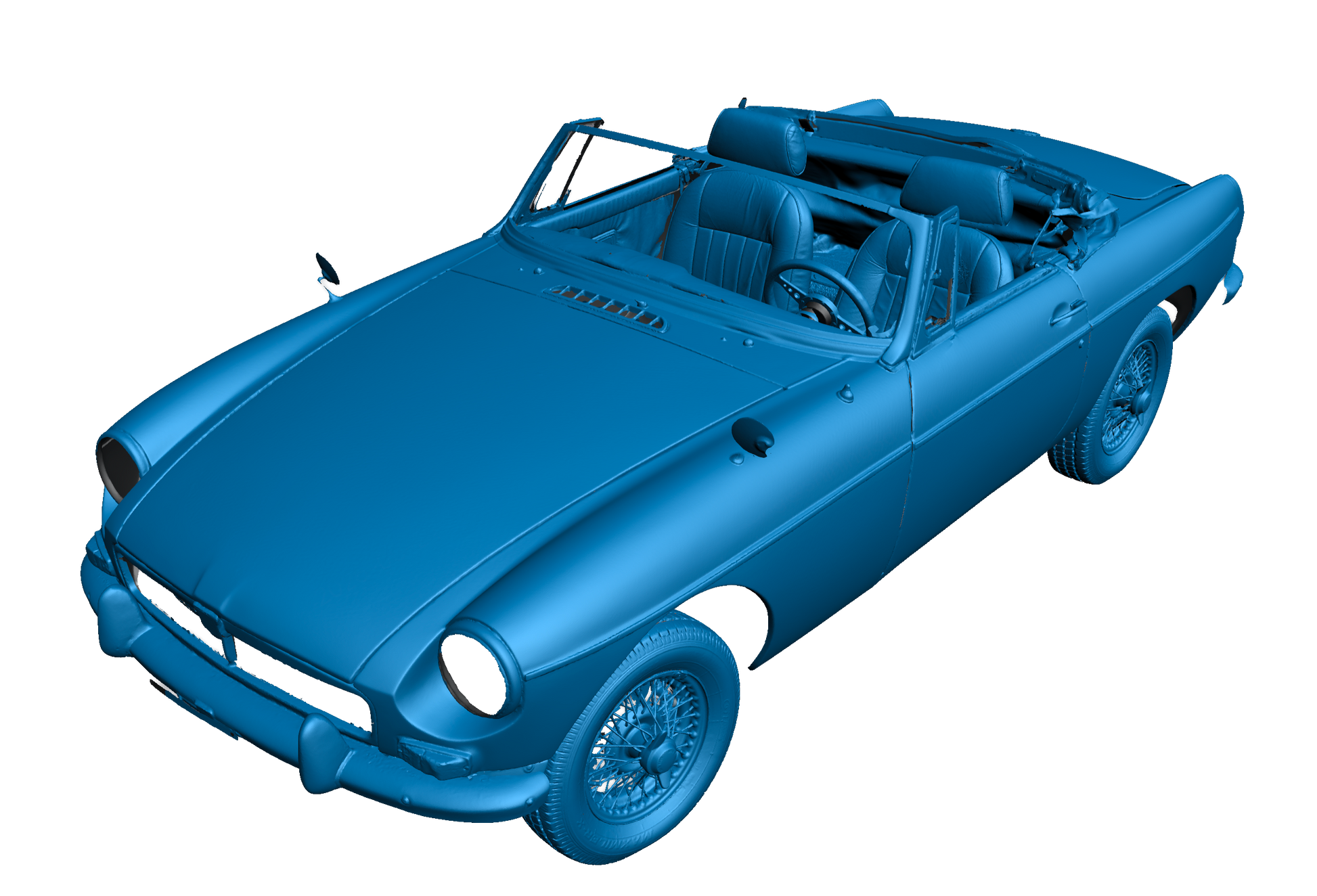

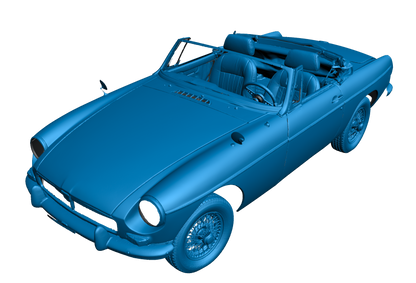

    Execute marker free car body scanning and reflective surface scanning for aftermarket modification and vintage vehicle restoration.

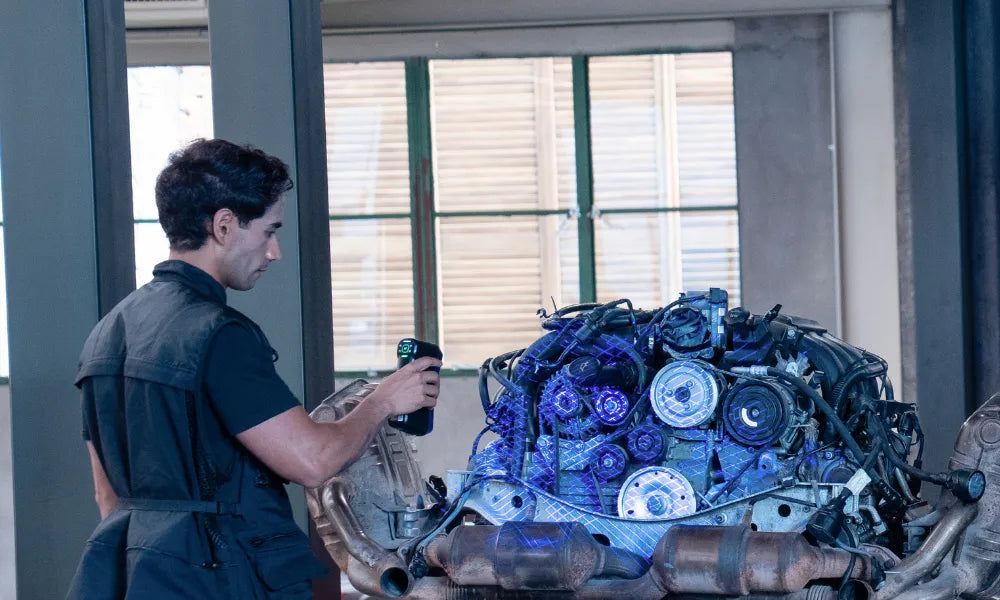

  • Industrial & Manufacturing

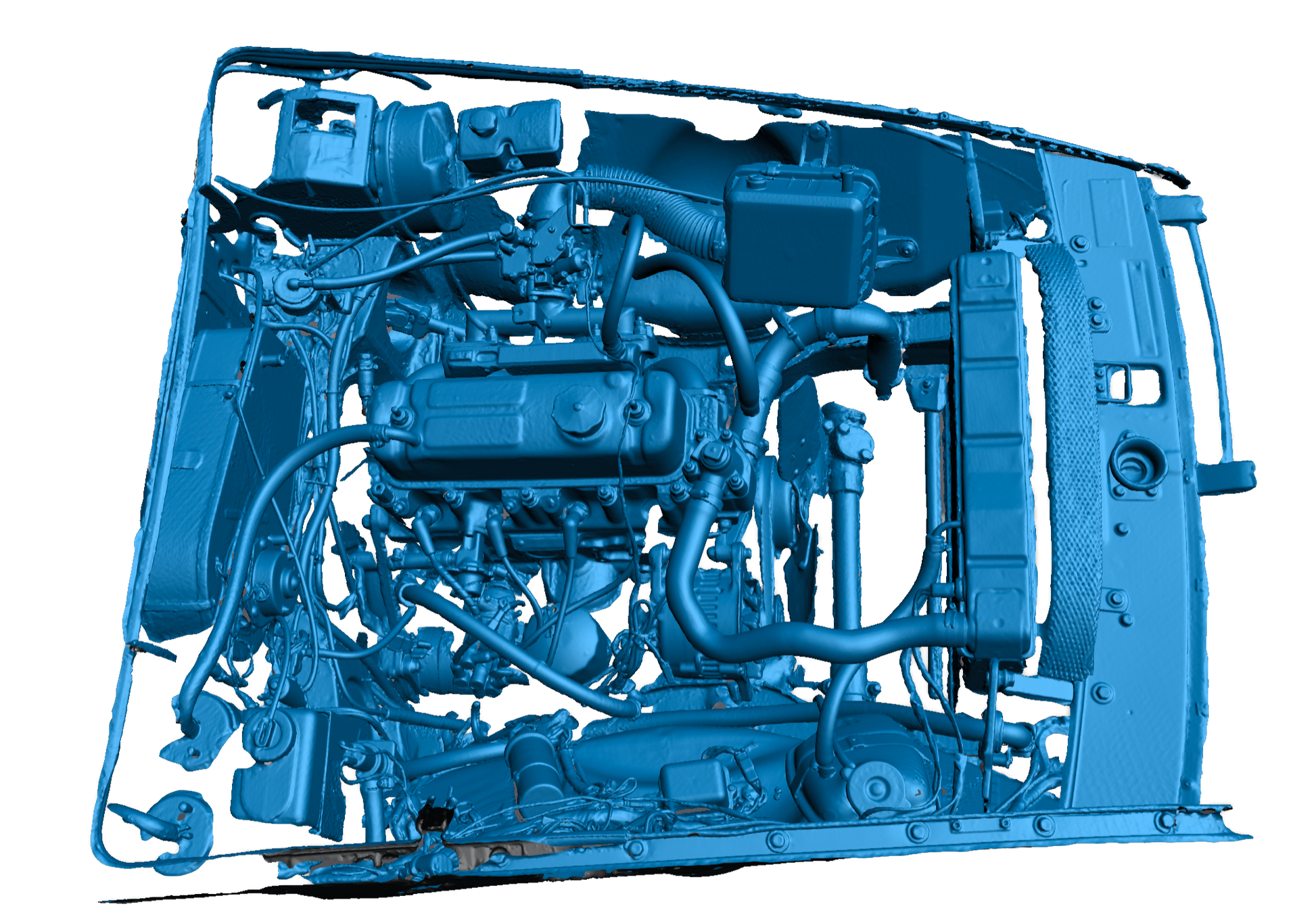

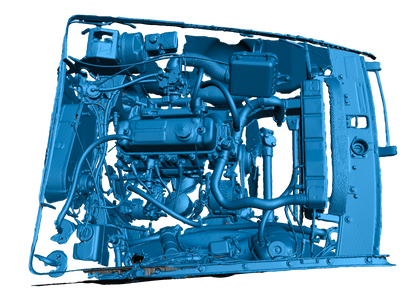

    Detach into handheld laser scanner mode to perform mechanical component scanning on dense engine blocks for reverse engineering.

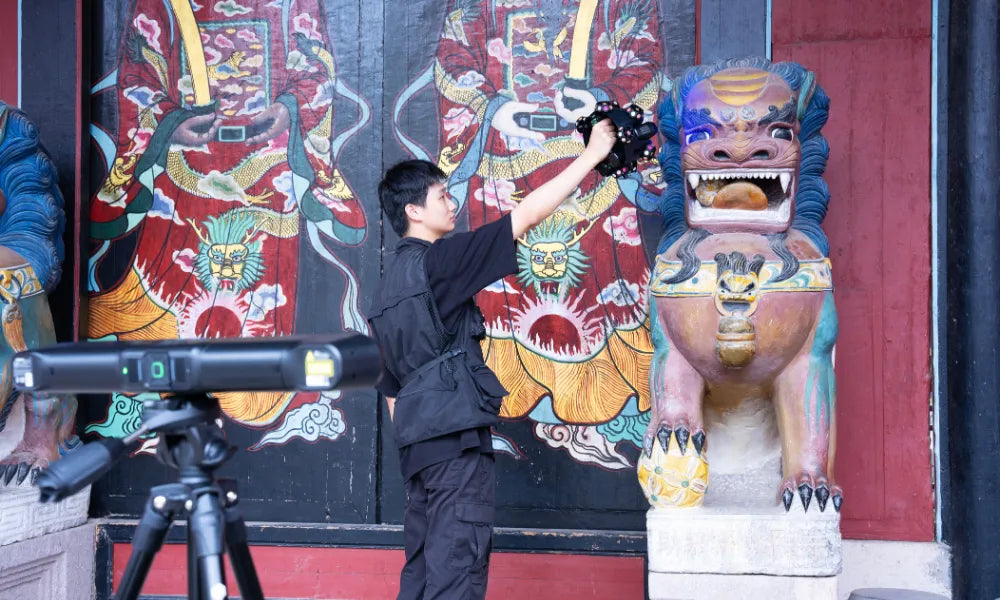

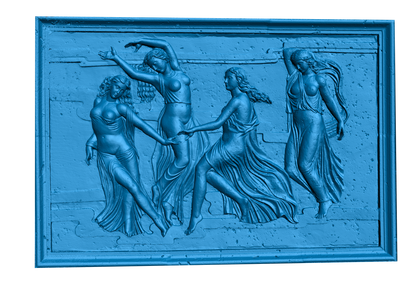

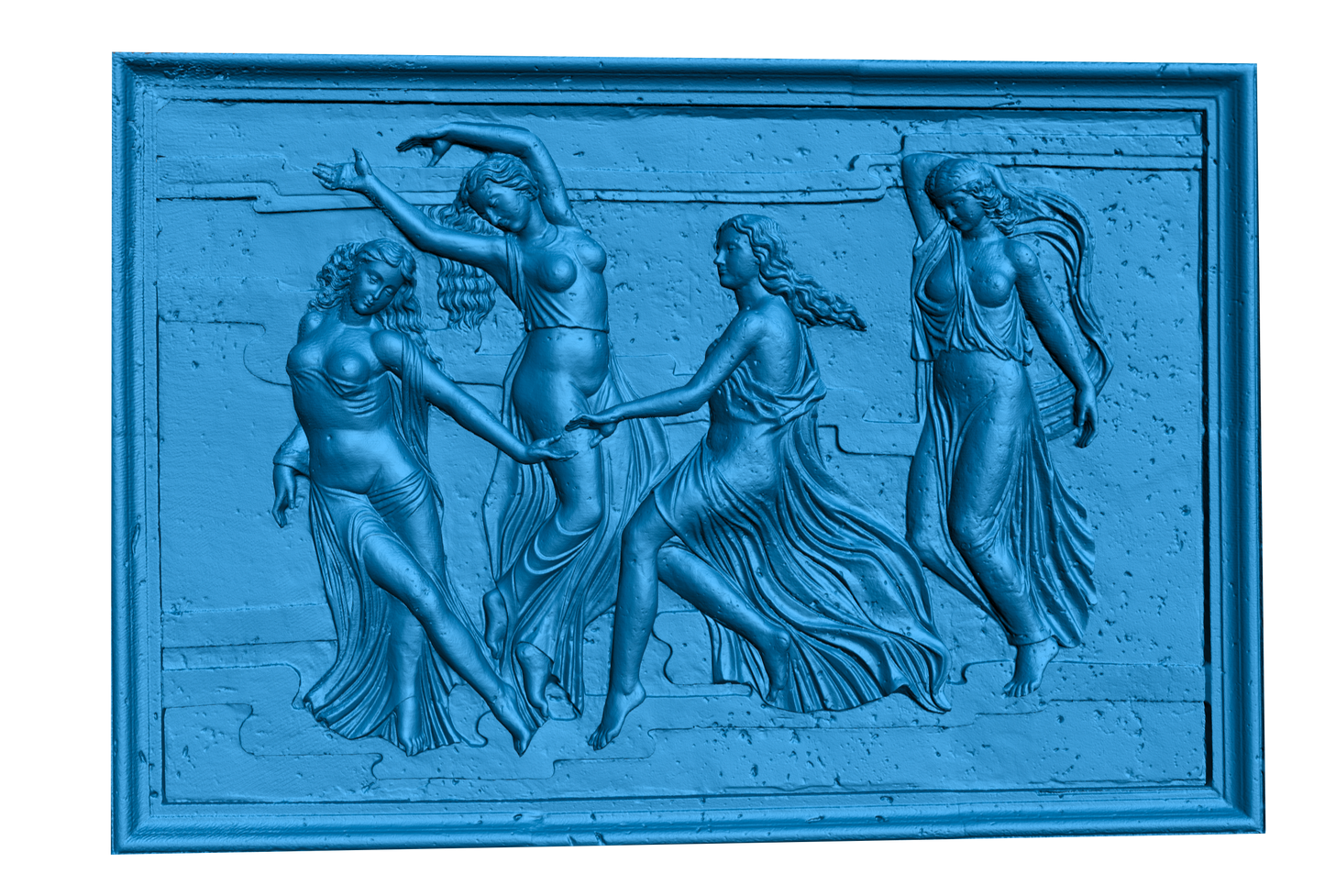

  • Cultural Heritage & Education

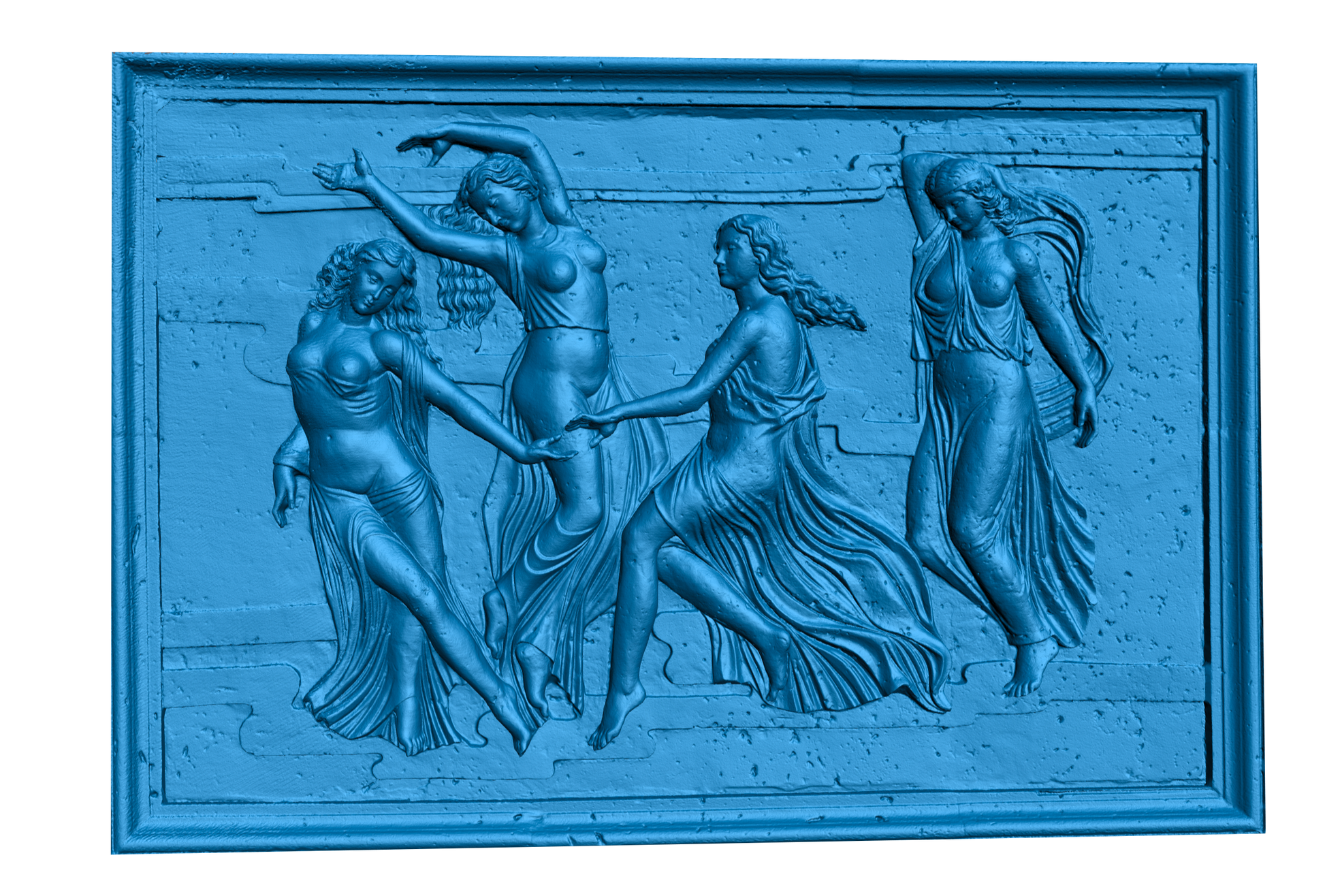

    Safely capture fragile artwork digitization with realistic HD texture capture without applying damaging retroreflective markers.

1 3

Compare 3D Scanners

Select up to 4 scanners to compare key specifications side-by-side.

Product Name EinScan Trak
EinScan Trak
Object Size for Best Results up to 4.8m x 4.2m x 4m in tracking mode
Accuracy up to 0.04 mm in handheld mode | 0.1 mm in track mode
Resolution up to 0.05 mm
Volumetric accuracy up to 0.04 mm in handheld mode | 0.1 mm in track mode
Max FOV 4796 x 4174 mm @ 4000mm (Tracking Mode)
Scan speed up to 2,630,000 points/second
Light source Blue Laser
Number of laser lines 38 crossed lines | High-speed
7 parallel lines | Fine details
1 single line | Deep pockets
Color scanning Yes
Wireless Yes
Marker free Yes

ROI & Business Impact

Transforms large object digitization by eliminating preparatoin time, messy cables, and environmental limitations.

  • Time Saving

    By eliminating the need to apply and remove manual markers, preparation time drops from hours to mere minutes.

  • Reliable Performance in Demanding Environments

    Featuring carbon fiber construction, 110,000 lux high brightness scanning capabilities, and operating from -10°C to 40°C for robust portable field scanning.

How Einscan Trak Works?

  • 1. Fast Calibration

    Calibrate the full 3D tracking system in just 5-10 minutes to maintain reliable performance across varying environments.

  • 2. Scan Marker-Free

    Execute large area tracking quickly using the tracking mode without placing any markers, or use Hybrid Leapfrog for multi project alignment.

  • 3. Capture Fine Details

    Switch to handheld laser scanner mode to capture fine mechanical details down to 0.05 mm resolution in narrow spaces.

  • 4. Analyze and Export

    Utilize EXMeasure for dimensional verification or EXModel to transform your mesh into a professional CAD solid model.

Computer Requirements

Component Requirements
Operating System Windows 11 Pro (64-bit)
Processor 13th Gen Intel Core i7-13650HX or AMD Ryzen7 7735H or above
Memory (RAM) 32 GB or above, DDR5 dual-channel
Graphics Card NVIDIA RTX 3060 or higher
VRAM 6 GB or above
USB Port 3.0
Internet Required for first activation and updates

Quicks Start Resources

1 5

Frequently Asked Questions

Looking for something specific? Let us know, and we’ll be happy to assist you.

Contact Us
Does the EinScan Trak require markers to scan?

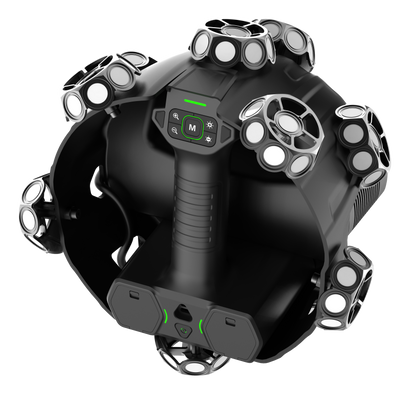

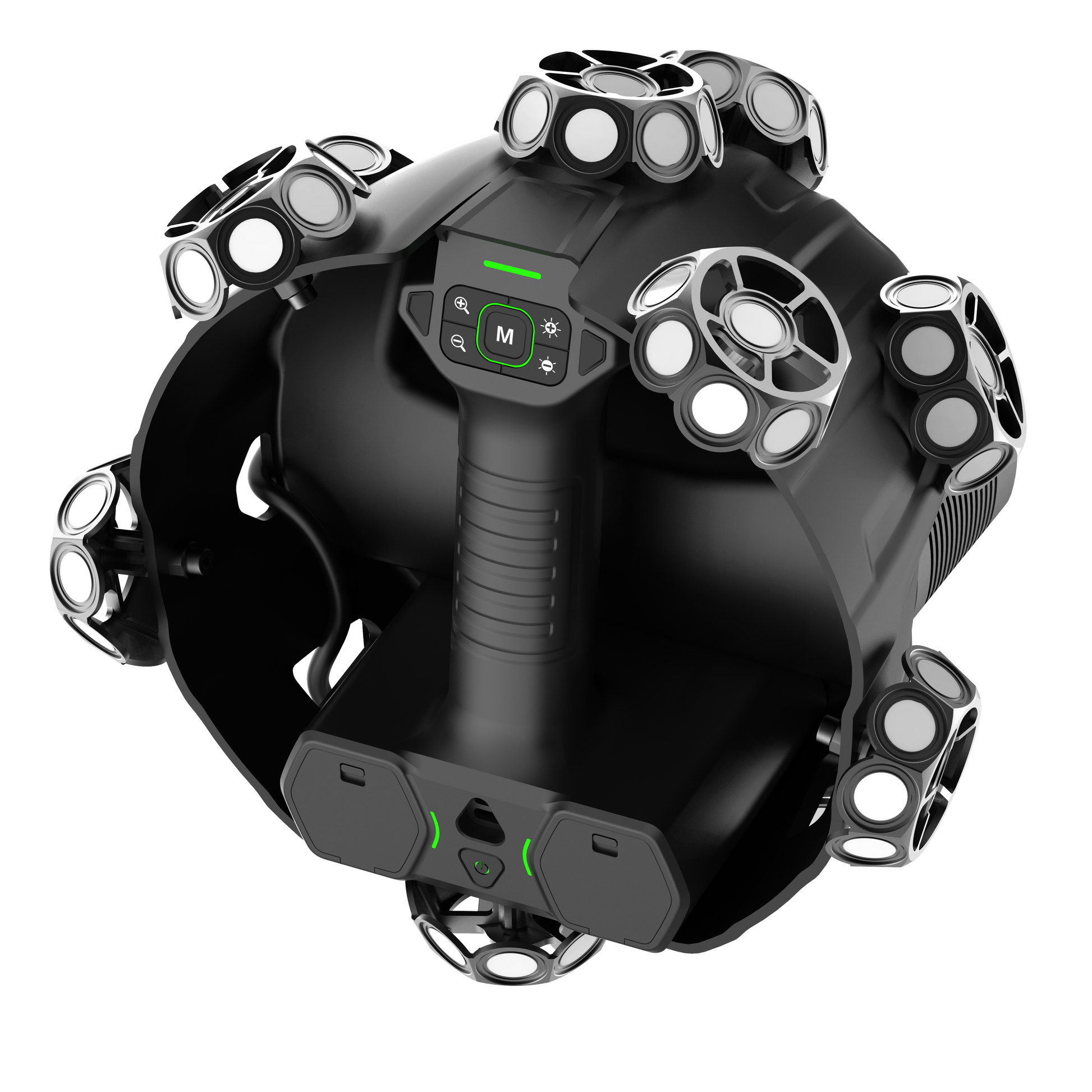

No. The optical tracking system uses built-in retroreflective markers on its spherical scanner, allowing real time scanner tracking without placing markers on large or smooth surfaces.
Can I perform outdoor 3D scanning ?

Yes. The system executes robust 3D scanning under strong outdoor light up to 110,000 lux and in temperatures ranging from -10°C to 40°C.
How long does the Tracker system battery last per charge?

The system features long battery life of up to 5 hours in tracking mode and handheld mode, supported by hot-swappable batteries.
Does it capture full-color textures?

Yes. The tracker includes a 5MP texture camera to accurately capture realistic color reproduction and create colorized 3D models.
