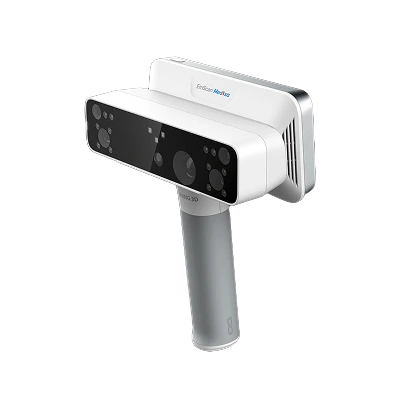

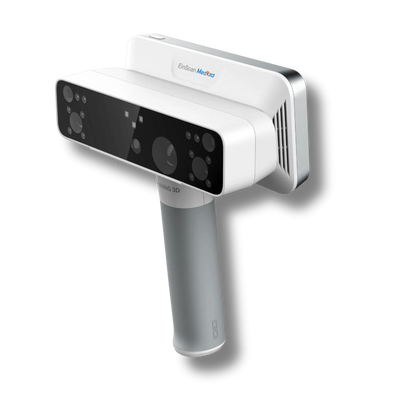

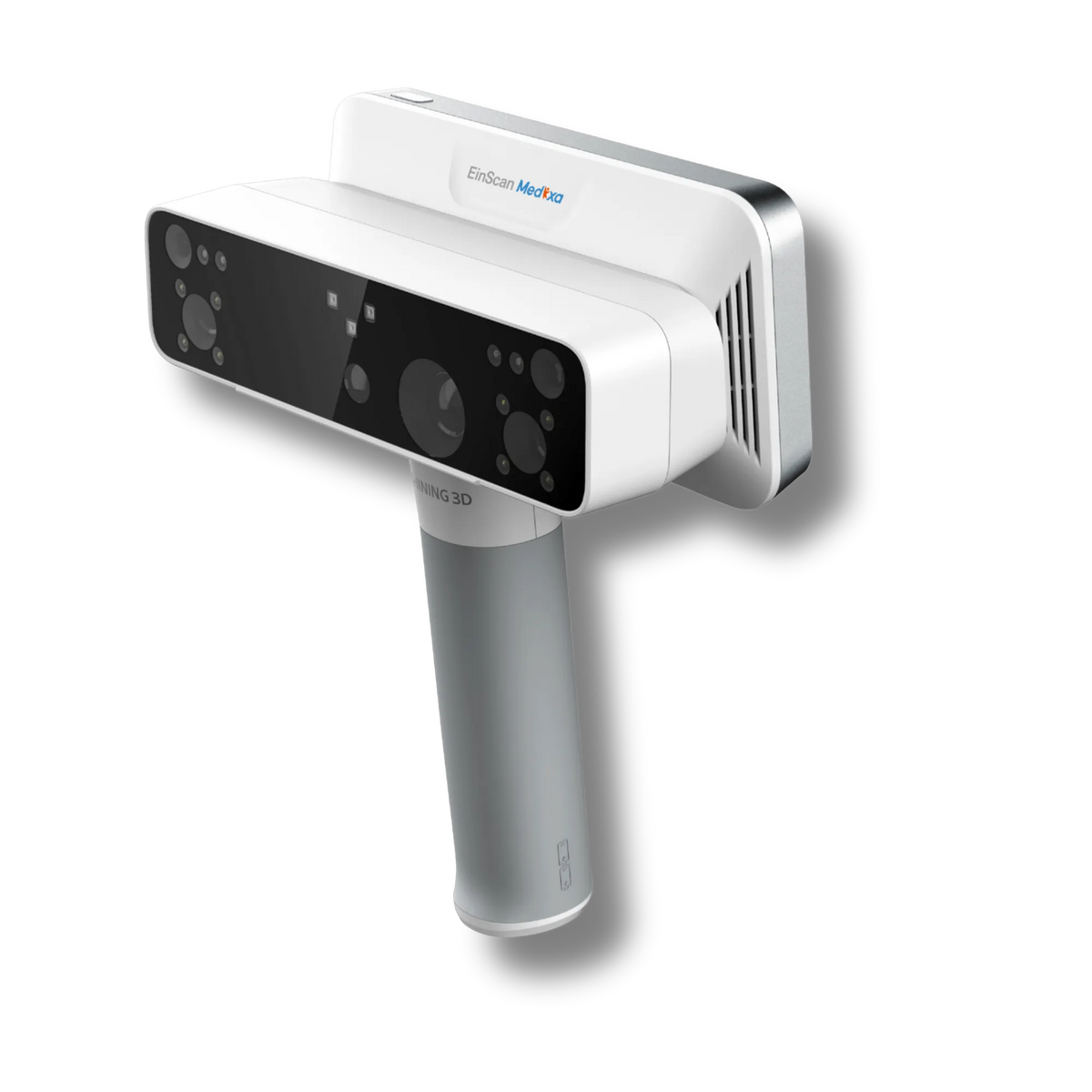

All-in-One Wireless 3D Scanner for Orthotics and Prosthetics

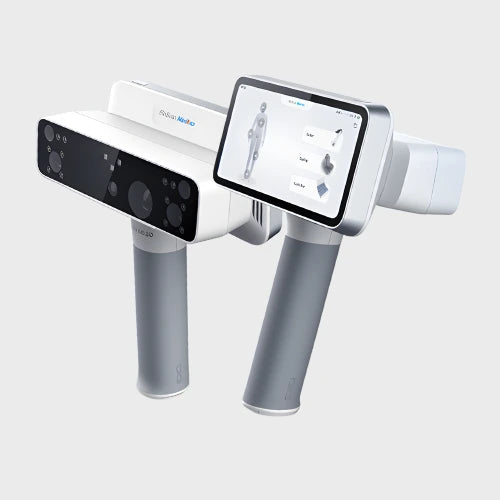

All-in-One Workflow for O&P Clinicians
EinScan Medixa combines scanning, processing, and data export all in one device.
- Lightweight & portable: Easy to carry and use in various environments, whether in the clinic or on-site.
- Standalone operation: No need for an external computer, simplifying setup and use.
- Quick & convenient: Less time spent on the scanning process, improving patient throughput.
Tailored Prosthetic & Orthotic Scanning Workflow
With an intuitive, step-by-step interface, EinScan Medixa enables clinicians without 3D scanning experience to operate efficiently, reducing appointment times.
- Optimized for O&P: Designed specifically for orthotic and prosthetic workflows, streamlining clinical operations.
- Minimal training required: Reduces the learning curve for non-technical staff and clinicians.

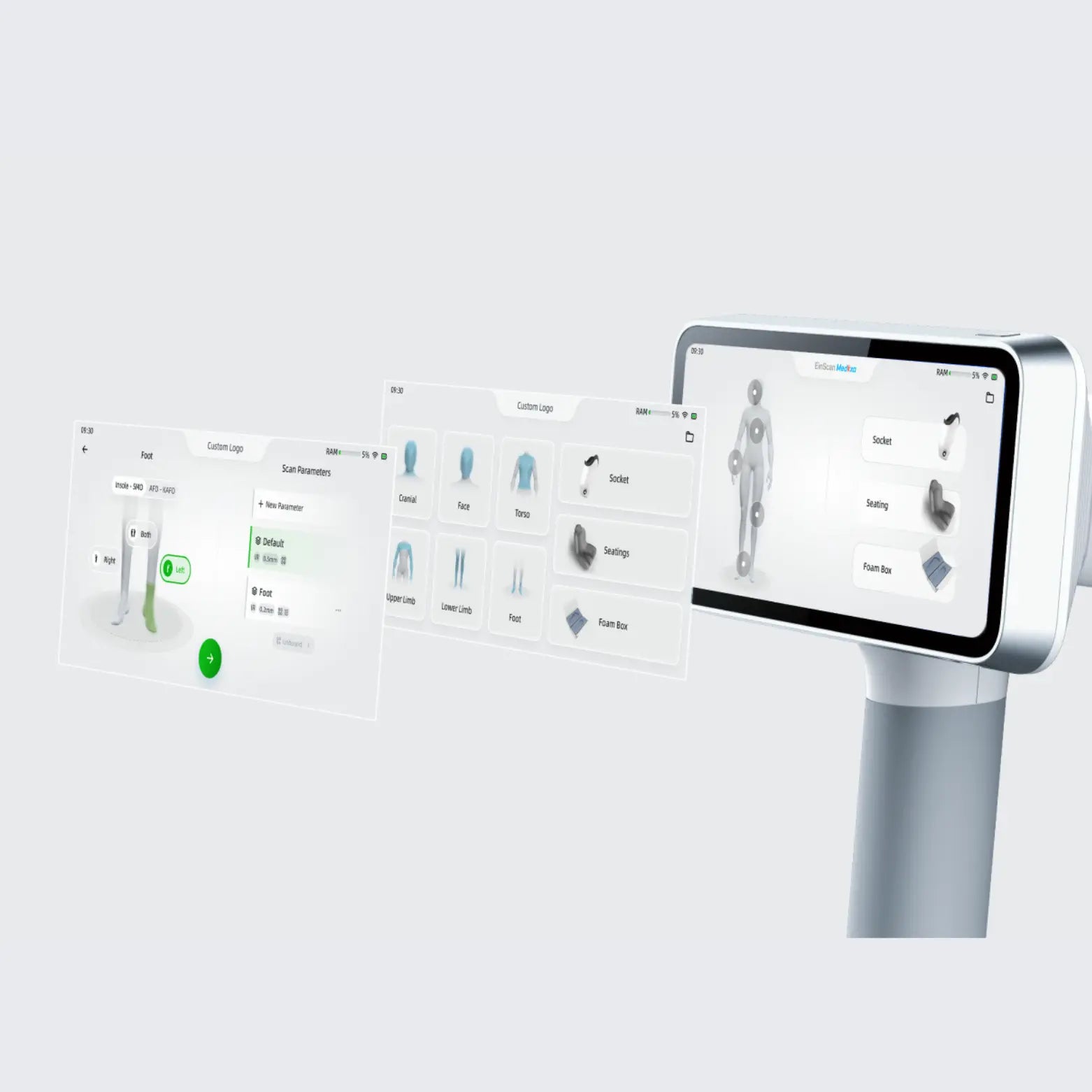

Personalized Scan Presets for Every O&P Application
EinScan Medixa features multiple pre-configured scan presets, customized for a wide range of O&P applications.
- Pre-configured scan parameters for different body parts, such as cranial, face, limbs, torso, foot, seating, and socket to save scanning time.
- Customizable settings: Clinicians can easily adjust scan parameters to meet specific needs for personalized device creation.

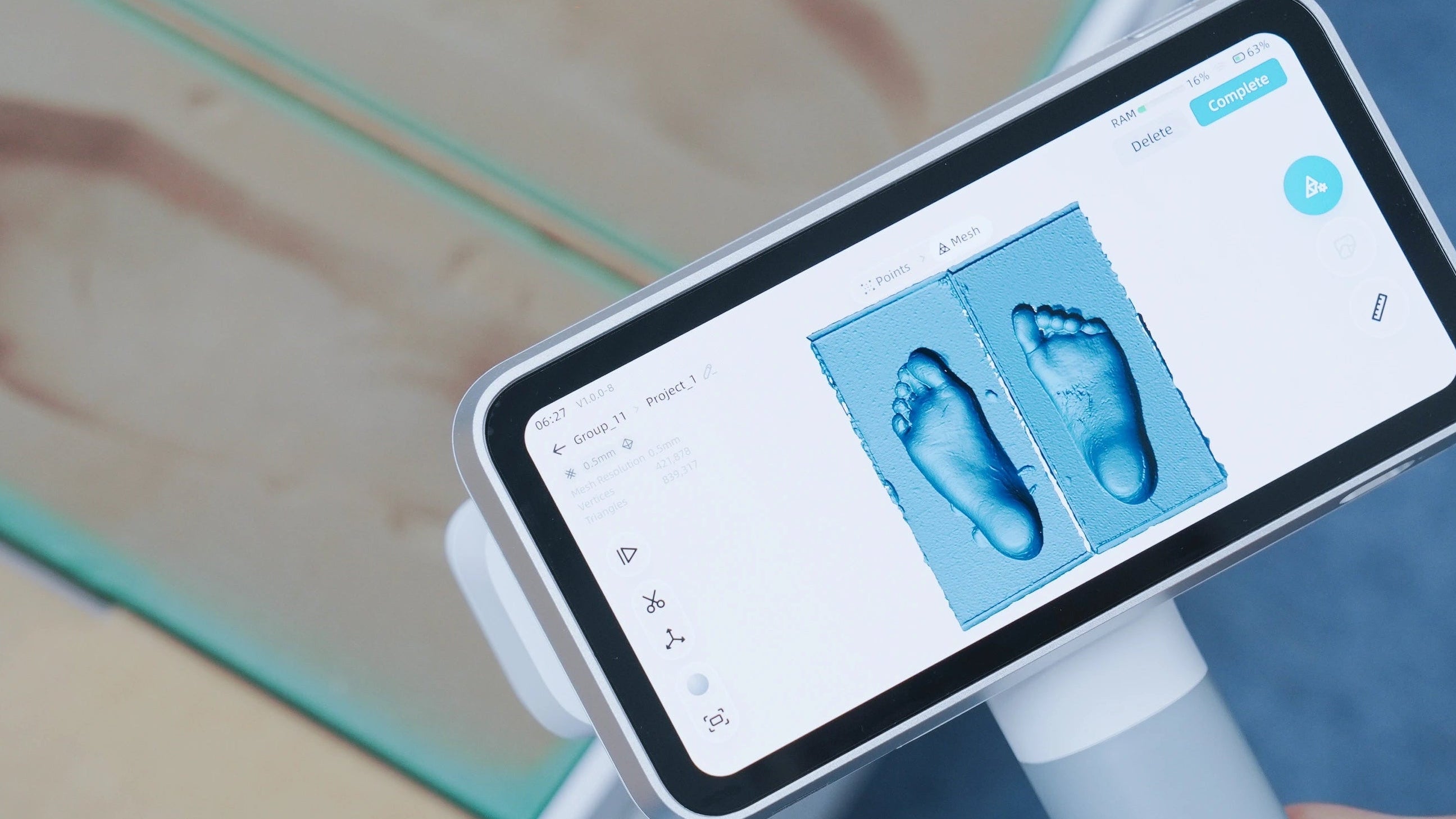

High-Precision 3D Results
- High-quality 3D data: Pre-set scanning parameters deliver accurate 3D models in STL, OBJ, and PLY with minimal post-processing, seamlessly integrating with CAD/CAM and O&P design software.
- Consistency in accuracy: Unlike manual methods requiring multiple measurements, EinScan Medixa ensures precision in one scan.
Movement Compensation

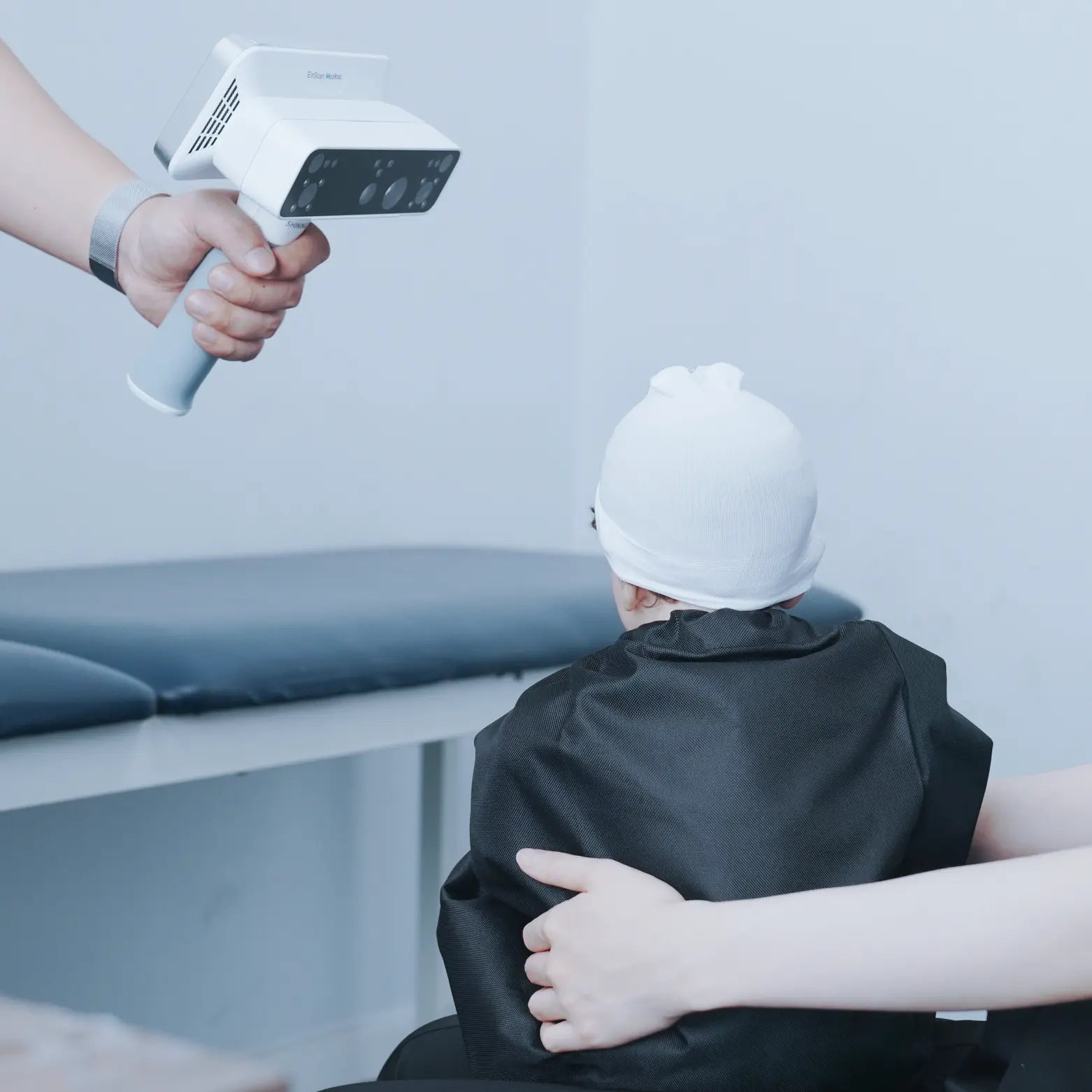

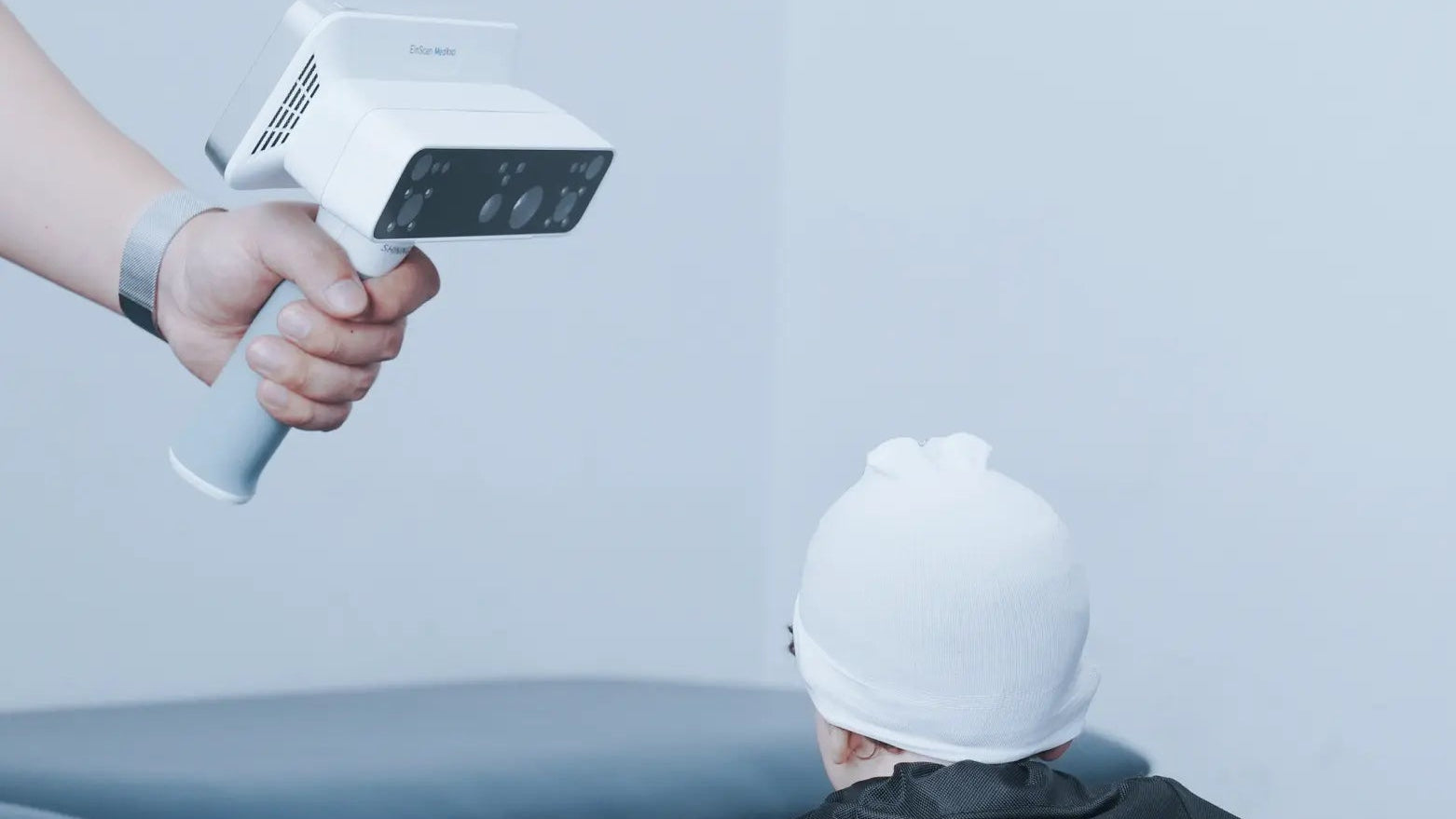

Advanced compensation algorithms correct subtle patient movement—ideal for scanning infants, breathing torsos, or patients who can’t stay fully still—delivering reliable accuracy without repeated scans.

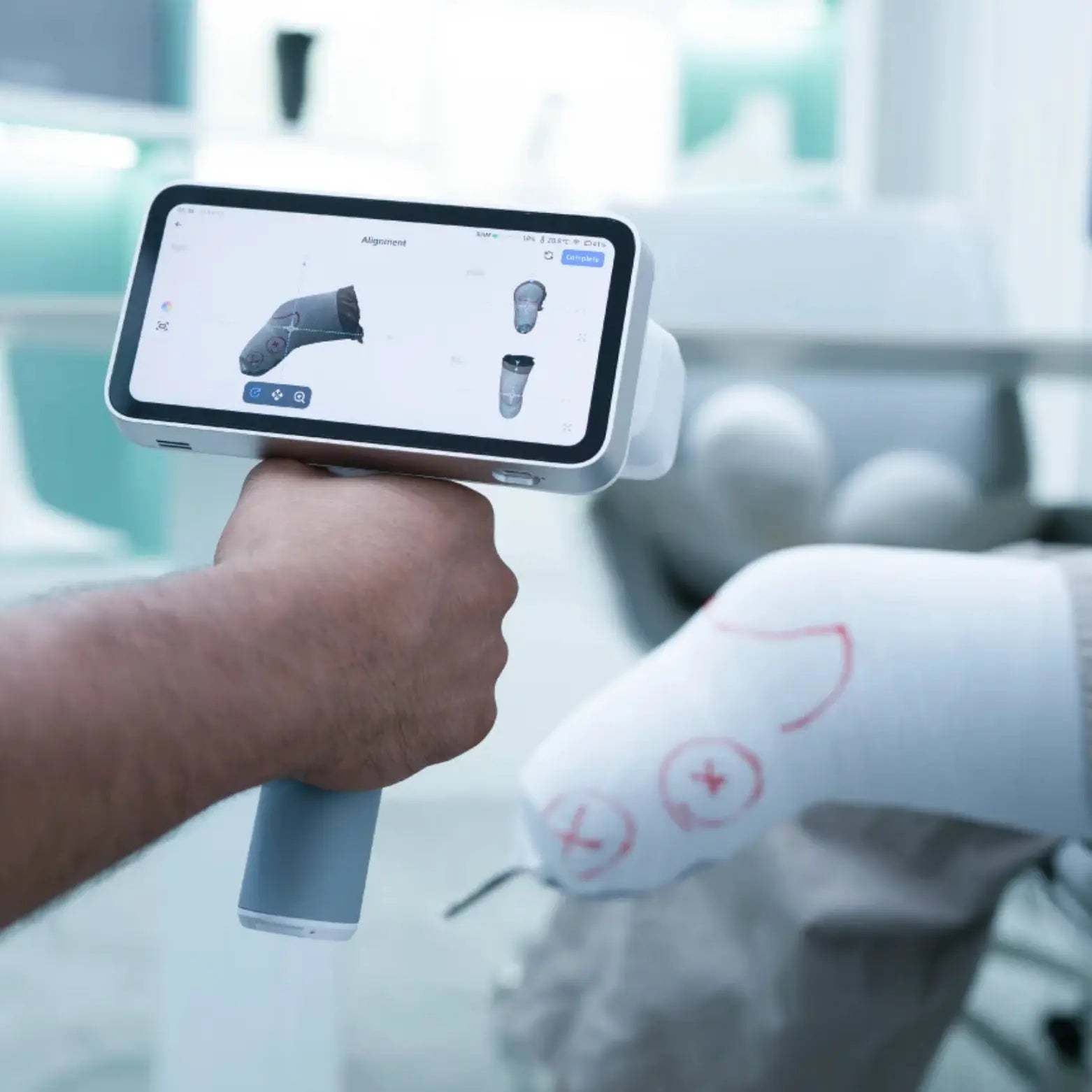

High-Resolution Texture Camera
A built-in 5 MP texture camera captures both precise geometry and clear surface markings drawn by clinicians, enabling accurate alignment and detailed customization during the design phase.

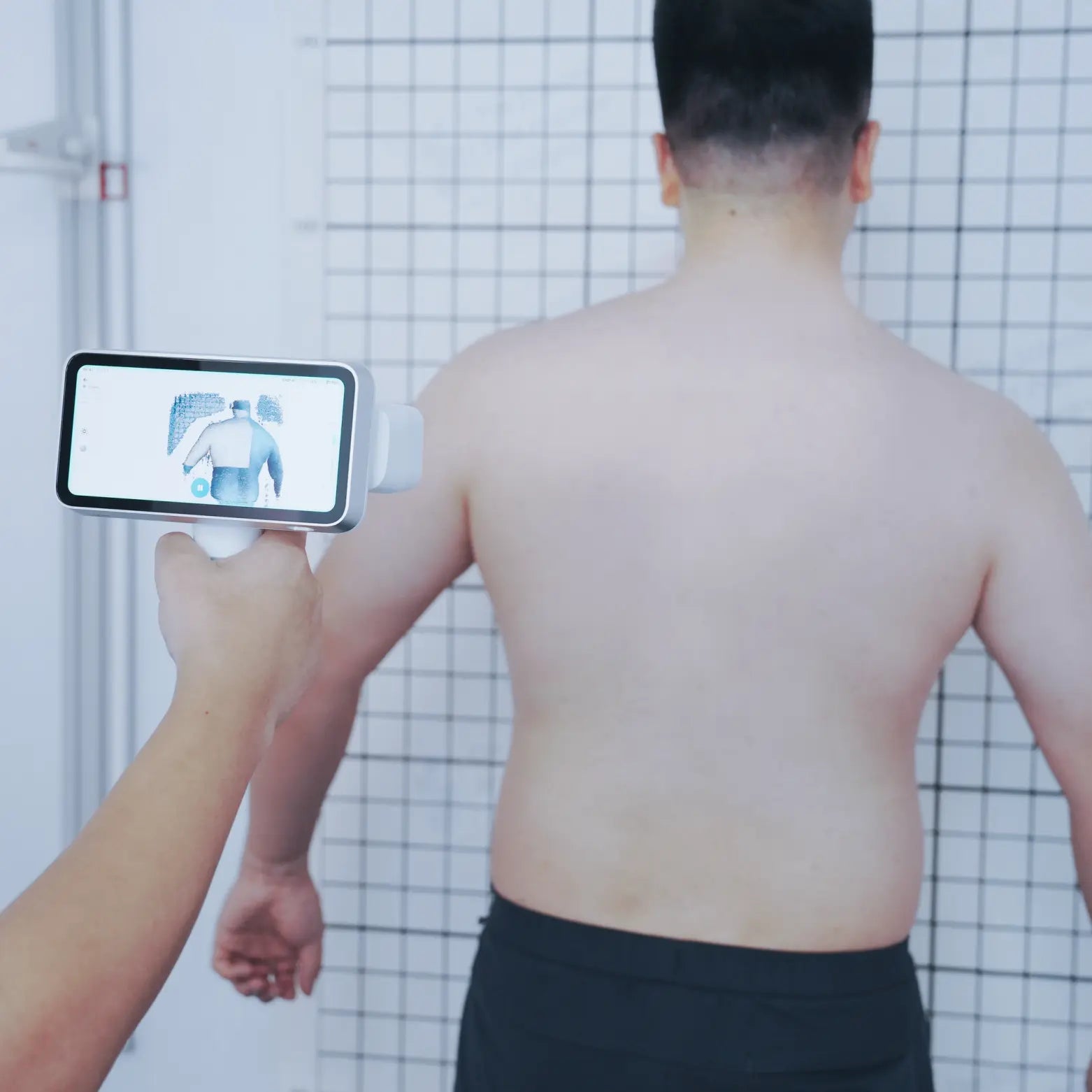

Contact-Free Scanning for Patient Comfort
Using safe white and infrared light, Medixa captures high-quality 3D body models without touching the patient. The non-contact workflow increases comfort and reduces stress for children, elderly patients, and sensitive applications.
Flexible Integration for a Connected Clinical Workflow
EinScan Medixa 3D scanner supports smooth data transfer into hospital systems, online order portals, and O&P design platforms.
Customizable export settings and workflow adjustments allow clinics to tailor the system to their operational needs.
3D Scanner & Software Bundles
Why Choose EinScan Medixa?
Technical Specifications - EinScan Medixa
| Scan Presets | Face, Cranial, Torso, Upper limb, Lower limb, Feet, Socket, Seating, Foam box | |
| Light Source | White light | Infrared VCSEL |
| Working Distance | 200 ~ 600 mm | 160 ~ 1500 mm |
| FOV | 475 × 360 mm | 1090 × 1260 mm |
| Point Distance | 0.2 ~ 3 mm | |
| Safety | LED Light (Eye safe) | Class I (Eye safe) |
| Texture Camera Resolution | 5MP | |
| Compatible Accessory | FootStation 2* | |
| Alignment | Features, Textures, Markers, Hybrid, Global Markers | |
| Output Formats | STL, OBJ, PLY | |
| Hardware | CPU: 8 core, 2.4GHz; RAM: 32GB DDR5; Storage: 1T SSD; 6.4" 2K AMOLED Touch Screen | |
| Interface & Power Source | Wi-Fi 6; USB-C; Battery: 5500mAh × 2; Support USB-C 60W-PD3.0 Charger | |
| Dimension | (H × D × W) 233 × 180 × 91 mm | |
| Weight (with batteries) | 953 g | |
-
Our Company
Delivering top-tier 3D scanners, printers, and training to optimize your business with precision and efficiency.
-
Who We Are
A dedicated team of 3D scanning and printing experts, providing reliable service and fast support.
-
Customer Benefits
We value your time and make adopting new technology easy with unlimited after-sales support and free shipping.
Frequently Asked Questions
Looking for something specific? Let us know, and we’ll be happy to assist you.
EinScan Medixa runs on two replaceable 5500mAh batteries, providing up to 3 hours of nonstop scanning. It also supports USB-C charging while in use for uninterrupted workflows.
Ideal for clinics moving away from messy plaster casting, EinScan Medixa offers contact-free, wireless scanning with high accuracy and patient comfort. Clinics can achieve up to 400% higher throughput and 80% time savings, driving a strong
Unlike general-purpose scanners or other solutions, EinScan Medixa is purpose-built for O&P clinics. It delivers more accurate data, stronger alignment options, and powerful editing tools, all without needing extra hardware like a PC or tablet.
