See What You're Upgrading From

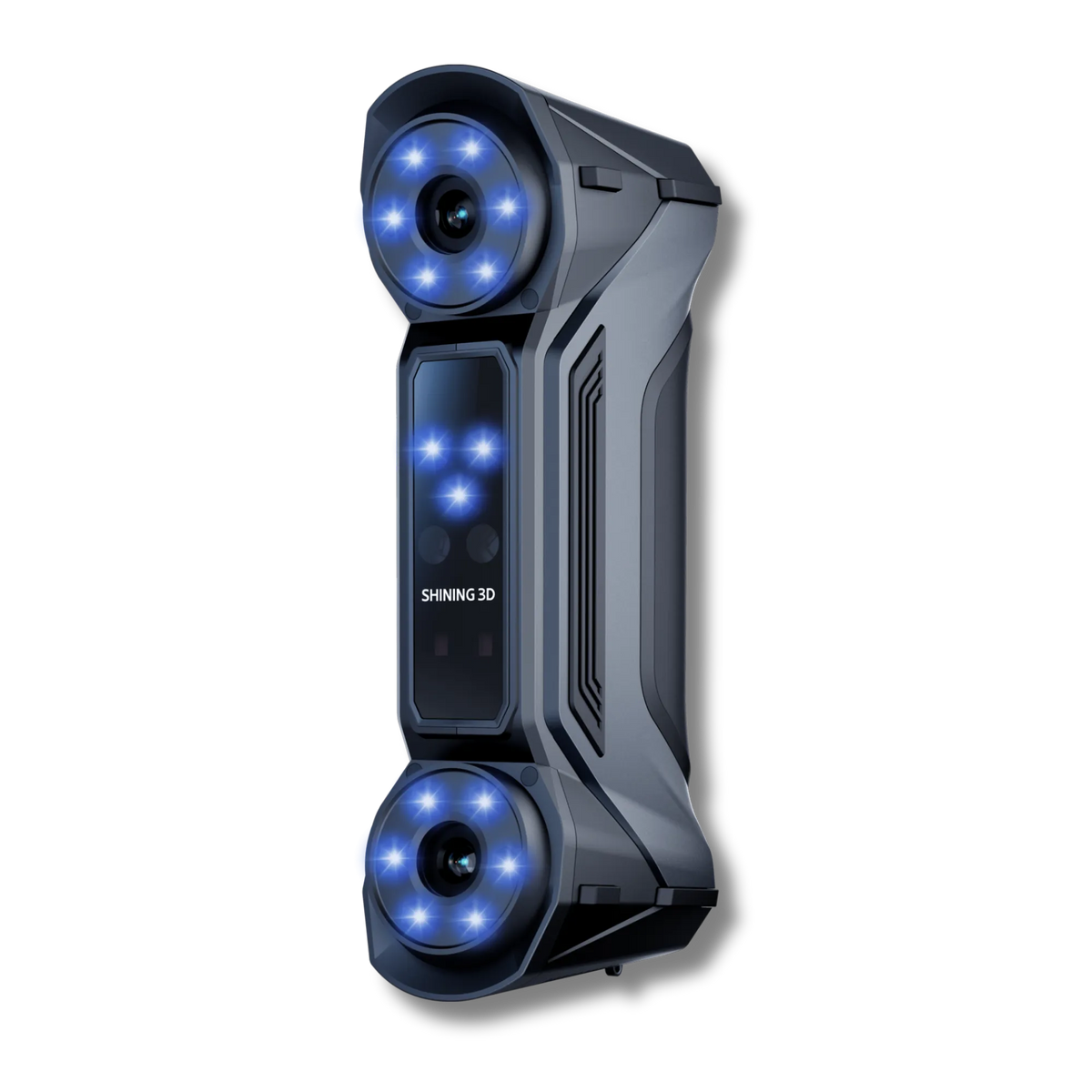

FreeScan Combo Wireless Series
- ConnectionWireless, Wi-Fi 7
- Laser lines50 to 93
- Scan speed7.3M – 9.1M pts/s
- Weight550 g
FreeScan Combo Series
- ConnectionWired, USB 3.0
- Laser lines26 to 50
- Scan speed1.9M – 3.6M pts/s
- Weight620 g
H2 What's The Difference Between FreeScan Combo Wireless and FreeScan Combo+ Wireless?
| Feature | FreeScan Combo Wireless | FreeScan Combo+ Wireless |
|---|---|---|
| Light Source |
50 Crossed Laser Lines 25 Parallel Laser Lines 1 Single Laser Lines IR - VCSEL |
93 Crossed Laser Lines 25 Parallel Laser Lines 1 Single Laser Lines IR - VCSEL |
| Scan Speed | Up to 7,344,000 pts/s | Up to 9,106,000 pts/s |
| Accuracy | Up to 0.02 mm | Up to 0.02 mm |
| Volumetric Accuracy (with VPG) | 0.02 mm + 0.015 mm/m | 0.02 mm + 0.015 mm/m |
3D Scanner & Software Bundles
Main product

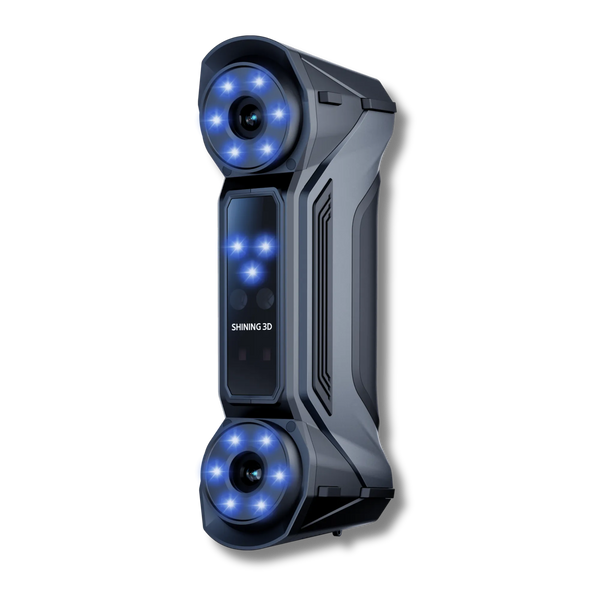

FreeScan Combo Wireless Series
Add-on products
EXModel Reverse Engineering Software
Quicksurface Reverse Engineering Software
Geomagic Design X Reverse Engineering
Geomagic Control X Inspection
Verisurf Inspection Software
SHINING3D Inspect
Your bundle
See How Businesses Use This in the Real World
-
Industrial & Manufacturing

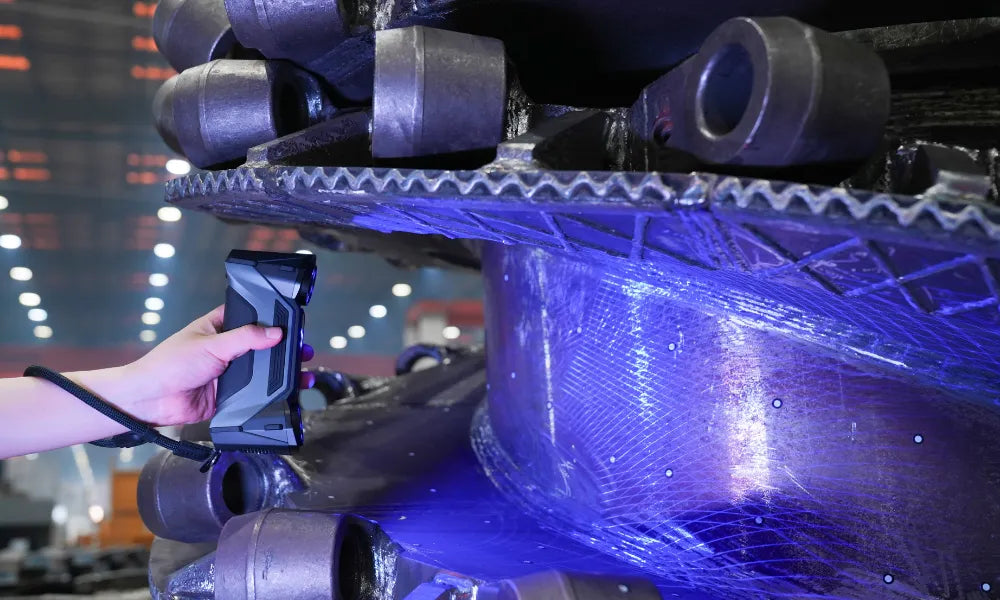

Delivers industrial-grade accuracy for inspection and metrology of complex, dark, or reflective machined parts.
-
Automotive & Aerospace
Accelerates reverse engineering and aftermarket product design with markerless infrared and detailed laser scanning.
-
Product Design & Creative
Captures precise digital models for additive manufacturing and customized product development.
Compare products
Select up to 4 scanners to compare key specifications side-by-side.
| Product Name |
|
||||
|---|---|---|---|---|---|
| Freescan Combo Wireless | |||||
| Object Size for Best Results | 5 mm³ – 8 m³ | ||||
| Accuracy up to | 0.02 mm | ||||
| Resolution up to | 0.05 mm - 3 mm | ||||
| Volumetric accuracy up to | 0.02 mm + 0.03 mm/m | 0.02 mm + 0.015 mm/m with VPG | ||||
| Max FOV | Laser: 580 x 650 mm; IR: 830 x 700 mm (Laser: 22.8 x 25.6 in; IR: 32.7 x 27.6 in) | ||||
| Scan speed up to | 7,344,000 points/s | ||||
| Light source | Blue Laser, Infrared VCSEL | ||||
| Number of laser lines |
50 lines | High-speed 25 lines | Fine detail 1 line | Deep pockets |
||||
| Color scanning | No | ||||
| Wireless | Yes | ||||
| Marker free | Yes (IR Rapid) |
Computer Requirements
| Component | FreeScan Combo Wireless | FreeScan Combo+ Wireless |
|---|---|---|
| Operating System | Windows 10 Pro (64-bit) / Windows 11 Pro (64-bit) | Windows 10 Pro (64-bit) / Windows 11 Pro (64-bit) |
| Processor | Intel Core Ultra 9 Processor 275HX or above | Intel Core Ultra 9 Processor 275HX or above |
| Graphics Card | NVIDIA GeForce RTX 4070 Laptop GPU or above | NVIDIA GeForce RTX 5080 Laptop GPU or above |
| Video Memory | 12 GB or above | 12 GB or above |
| Memory (RAM) | 64 GB or above, DDR5 dual-channel | 64 GB or above, DDR5 dual-channel |
| USB Port | 3.0 | 3.0 |
| Connectivity | Wi-Fi 7 / USB 3.0 | Wi-Fi 7 / USB 3.0 |
| Internet | Required for first activation and updates | Required for first activation and updates |
Quicks Start Resources
Frequently Asked Questions
Looking for something specific? Let us know, and we’ll be happy to assist you.
Yes. The infrared VCSEL scan mode captures feature-rich parts quickly without needing target markers, and it's available in both FreeScan Combo Wireless and FreeScan Combo+ Wireless.
VPG is SHINING 3D's built-in photogrammetry technology. It continuously optimizes the spatial position of reference markers while you scan, which minimizes cumulative error over long distances. Use it when scanning large-scale components where you need reliable, consistent accuracy across the whole part, not just locally.
Accuracy is up to 0.02 mm on both FreeScan Combo Wireless and FreeScan Combo+ Wireless. Volumetric accuracy is 0.02 mm + 0.03 mm/m standard, improving to 0.02 mm + 0.015 mm/m when using VPG.
FreeScan Combo Wireless has 50 high-speed laser lines and scans up to 7,344,000 points/s. FreeScan Combo+ Wireless steps up to 93 laser lines and up to 9,106,000 points/s. Both share the same accuracy, dimensions, weight, and battery life; the difference is speed and the GPU needed to keep up with it.
Same hybrid light source and metrology-grade accuracy, but the wireless versions add Wi-Fi 7 connectivity, built-in VPG for large-part accuracy, and a lighter 550 g body (versus 620 g wired). The tradeoff is the wired series is the more affordable, tethered option without VPG.
Yes. It's positioned for inspection, quality control, and reverse engineering work across automotive, heavy industry, transportation, and energy sectors.
