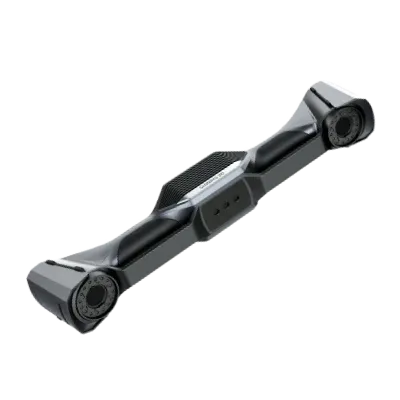

High-performance handheld 3D scanner with an ultra-wide 2.6 × 2.2 m field of view. Designed for large-scale projects in industries such as aerospace, automotive, energy, and heavy manufacturing.
Included With Every Purchase
✓ Immediate Quick Start Resources & Tutorial Videos
✓ 1-Year Warranty
✓ One-on-One Training
✓ Authorized Reseller Technical Support
✓ Personalized Application Assistance
✓ U.S.-Based Support

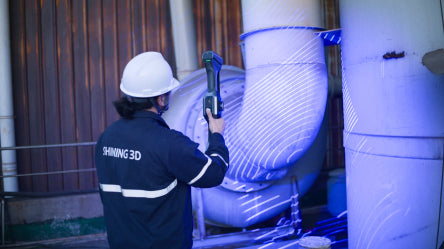

Dependable wireless scanning for inspecting and maintaining massive equipment, turbines, and heavy industrial machinery.

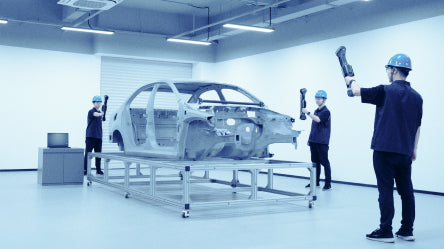

High speed capture of entire vehicle frames and truck beds for efficient reverse engineering workflows.
Captures large scale structural data quickly, supporting accurate maintenance and facility management.
Accelerates the reverse engineering of large scale commercial products by delivering precise, wide-area digital models.
Select up to 4 scanners to compare key specifications side-by-side
| Product Name |
|
||||
| Freescan UE Nova | |||||
| Object Size for Best Results | 1 m³ - 50 m³ | ||||
| Accuracy up to | 0.072 mm | ||||
| Resolution up to | 1 mm - 10 mm | ||||
| Volumetric accuracy up to | 0.072 + 0.012 mm/m | ||||
| Max fov | Up to 2600 x 2200 mm | ||||
| Scan speed up to | 4,600,00 points/s | ||||
| Light source | Blue Laser | ||||
| Number of laser lines | 50 lines | High-speed | ||||
| Color scanning | No | ||||
| Wireless | Yes | ||||
| Marker free | No |
| Component | Requirement |
|---|---|
| Operating System | Windows 11 Pro (64-bit) |
| Processor | Intel® CoreTM i7-13700H or above |
| Memory (RAM) | 64 GB or above |
| Graphics Card | NVIDIA RTX 4060 or higher |
| VRAM | 8 GB or above |
| USB Port | 3.0 |
| Internet | Required for first activation and updates |
Looking for something specific? Let us know, and we’ll be happy to assist you.
Yes. While it has a maximum capture range of 2.6 meters, the software offers three selectable working ranges (Near, Standard, and Far), allowing it to function effectively in narrow spaces.
No. Both the wired and wireless modes have equivalent data transmission bandwidth under full operating conditions, ensuring consistent, ultra fast scanning speed regardless of the mode used
Yes. The FreeScan UE Nova is specifically designed for outdoor scanning and comes equipped with specialized lens filters to enhance its performance in bright outdoor environments.
It uses patented Video Photogrammetry (VPG) without coded markers. This integrates with a calibration rod for real-time marker verification, delivering a volumetric accuracy of 0.072 + 0.012 mm/m.
Yes. The scanner is tested based on VDI/VDE 2634 Part 3 and ISO 10360 standards in a CNAS ISO 17025 accredited laboratory, ensuring full international traceability.
