Wireless Multi-Functional Dynamic Tracking & Scanning System

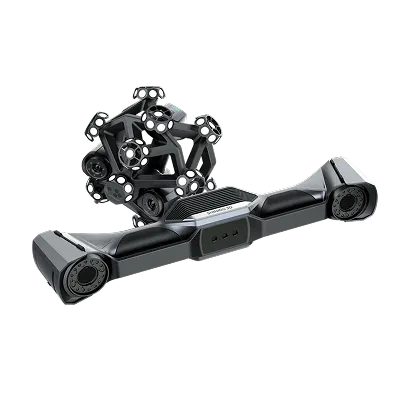

The FreeScan Trak Nova is an all-in-one wireless tracking and scanning system integrating a portable tracker, a large-FOV laser scanner, and video photogrammetry. It is built for engineers and inspectors who require highly accurate, markerless, and efficient large-scale measurements without the constraints of cords or heavy setups.
Case Study

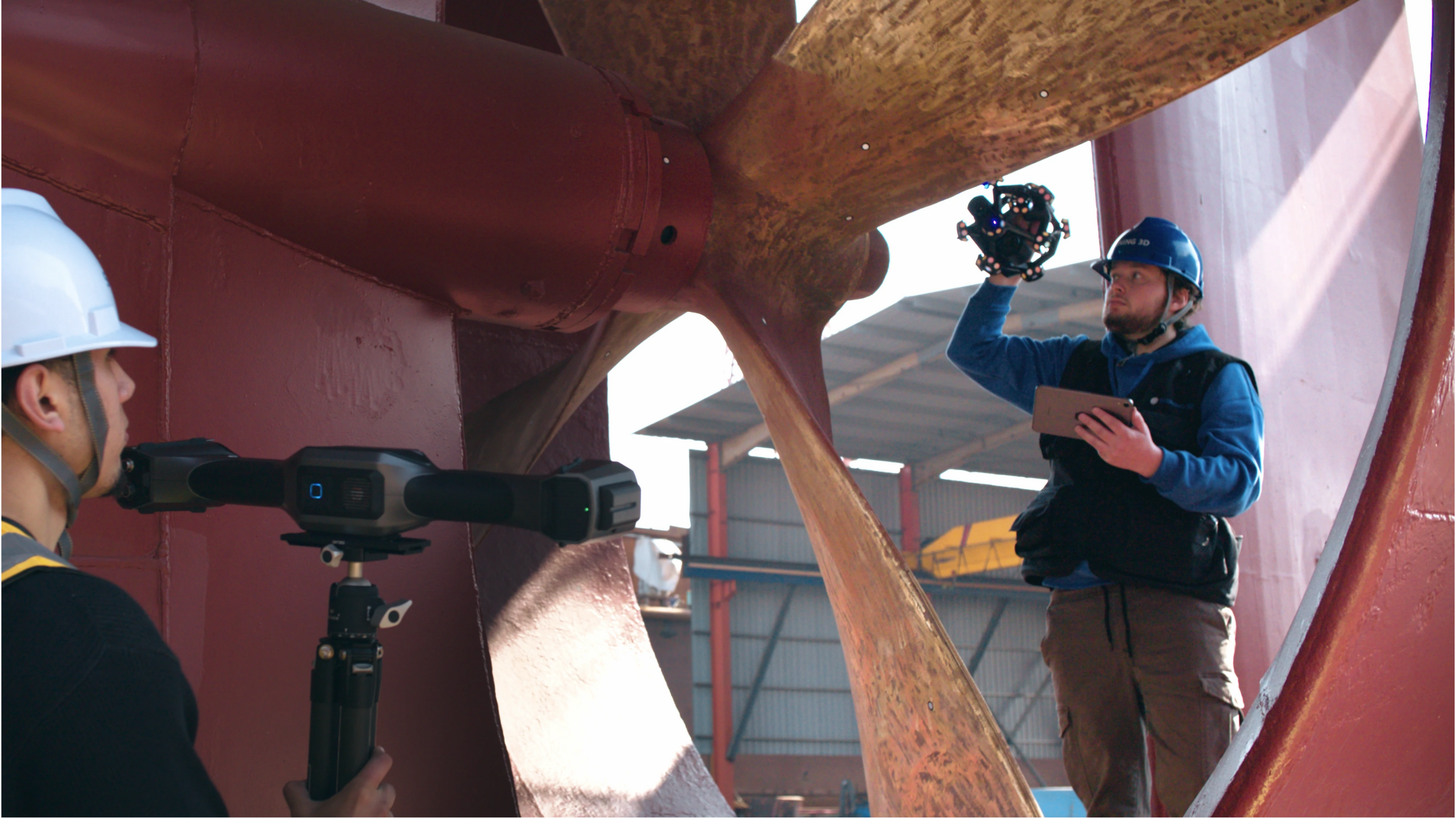

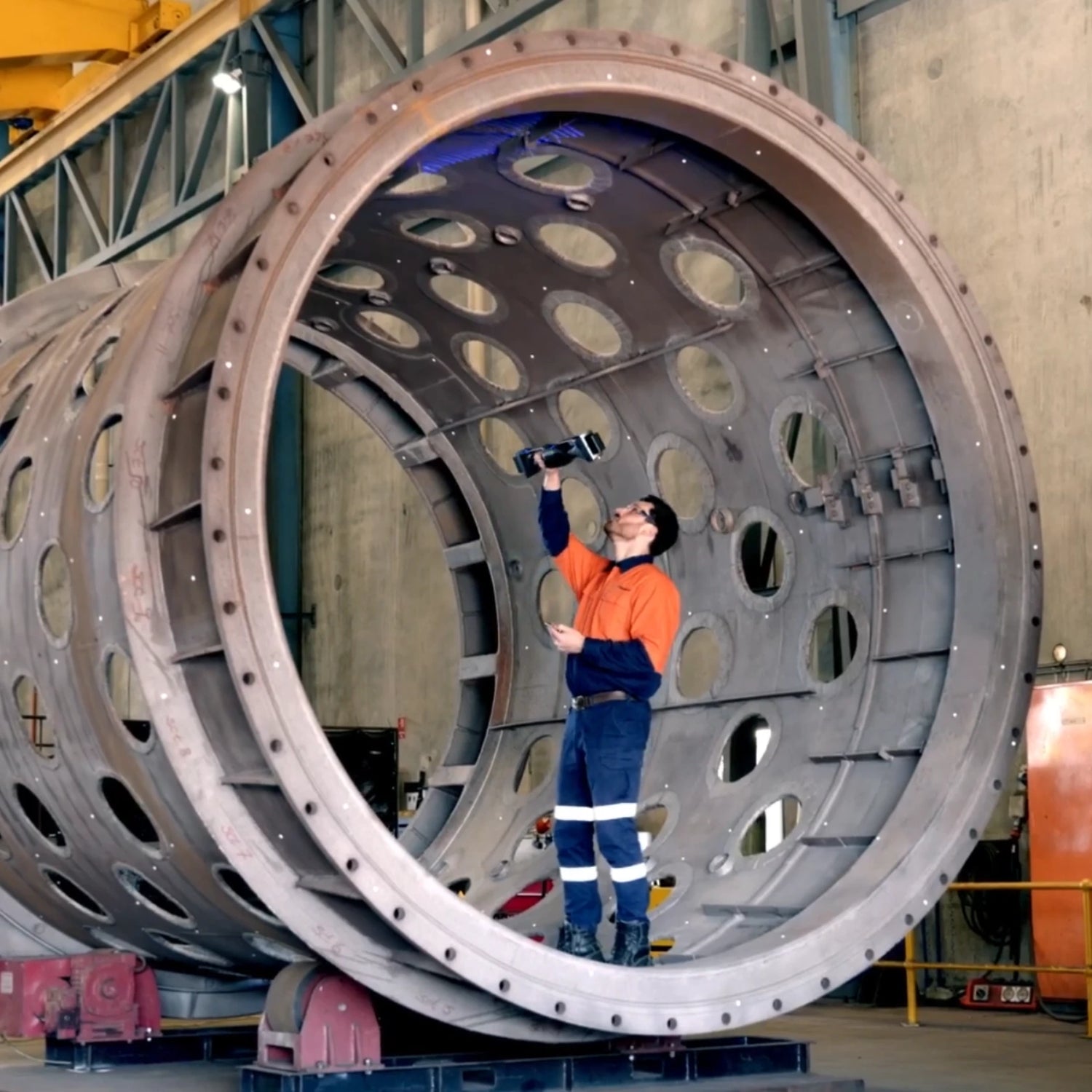

"We chose the FreeScan Trak Nova for its versatility, portability because it's wireless, and because it's also metrology grade. It caters to our wide range of applications, from mine site to workshop, from small parts to very large parts. Other solutions that I've used in the past would have taken days to achieve the same task, and it now takes mere hours with the FreeScan Trak Nova."
— Tristan Barrie, Senior Engineer, Steelstruct.
Case Study

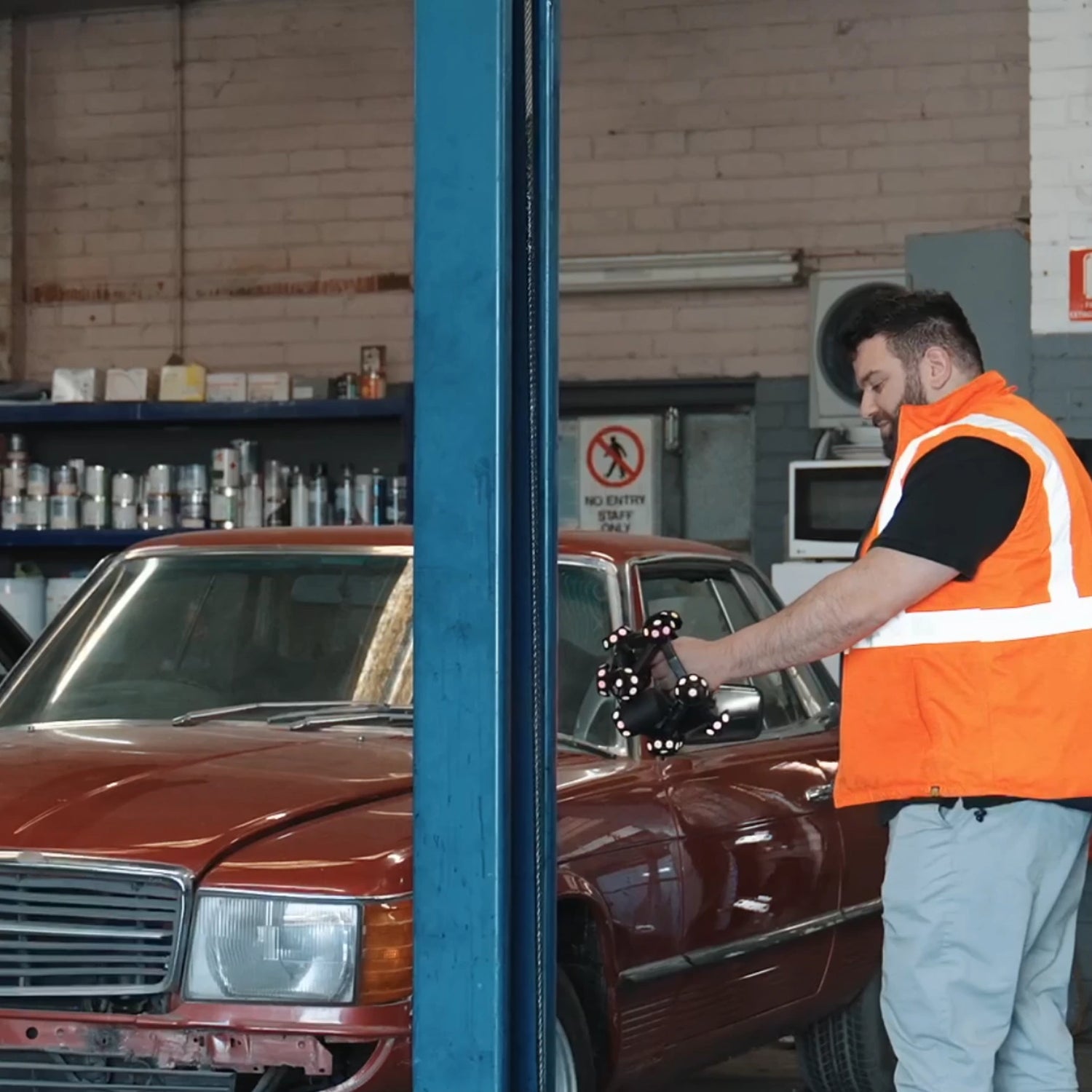

"The Nova gives us a wider range of capabilities, more flexibility, and the vision to do bigger parts, larger areas, and full automobiles. The product itself is highly efficient, very accurate, and robust. The software also marries well with the hardware, so you have fewer bugs, and even quite large files are easily handled with the Nova."
— Saad, Babylon Engineering.
Case Study

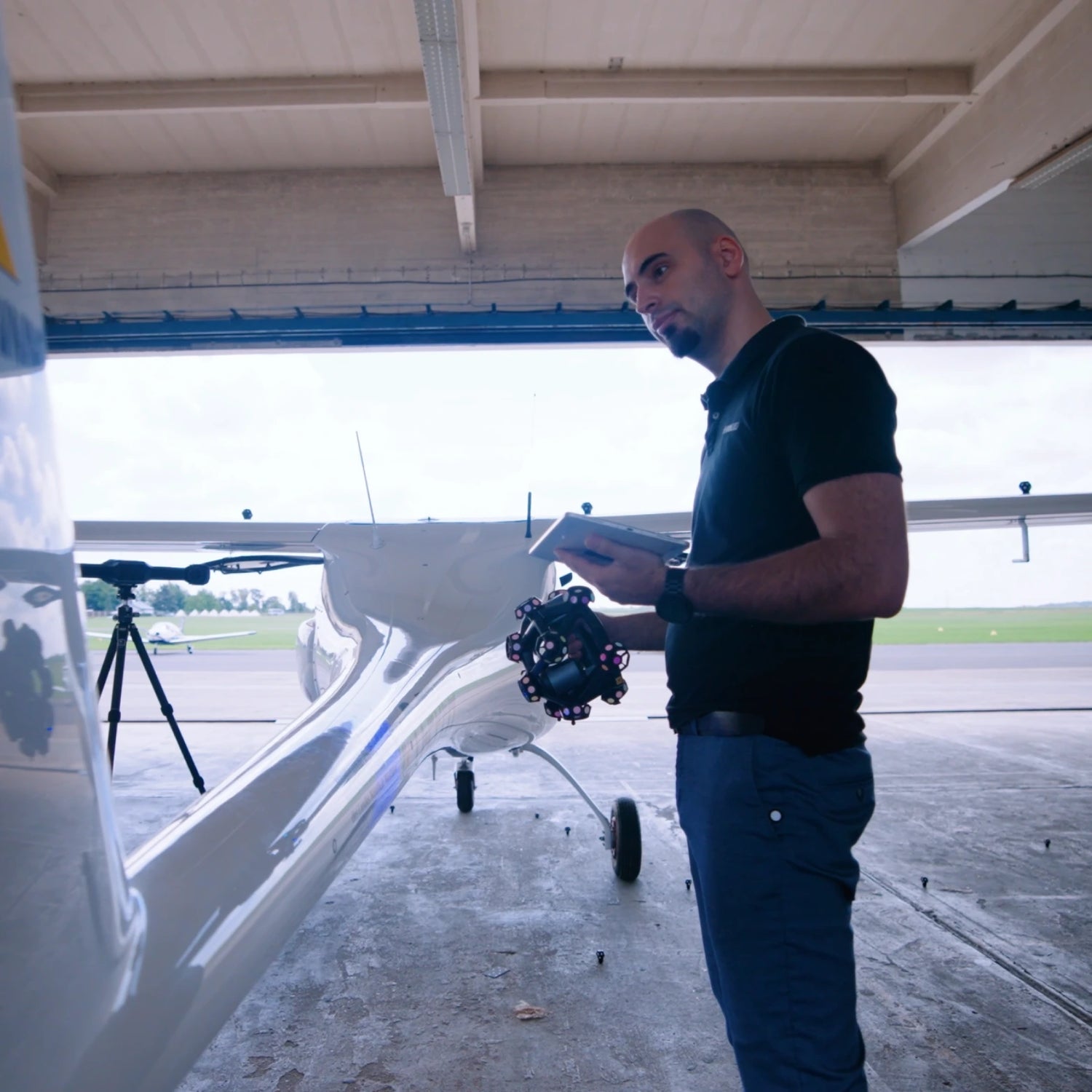

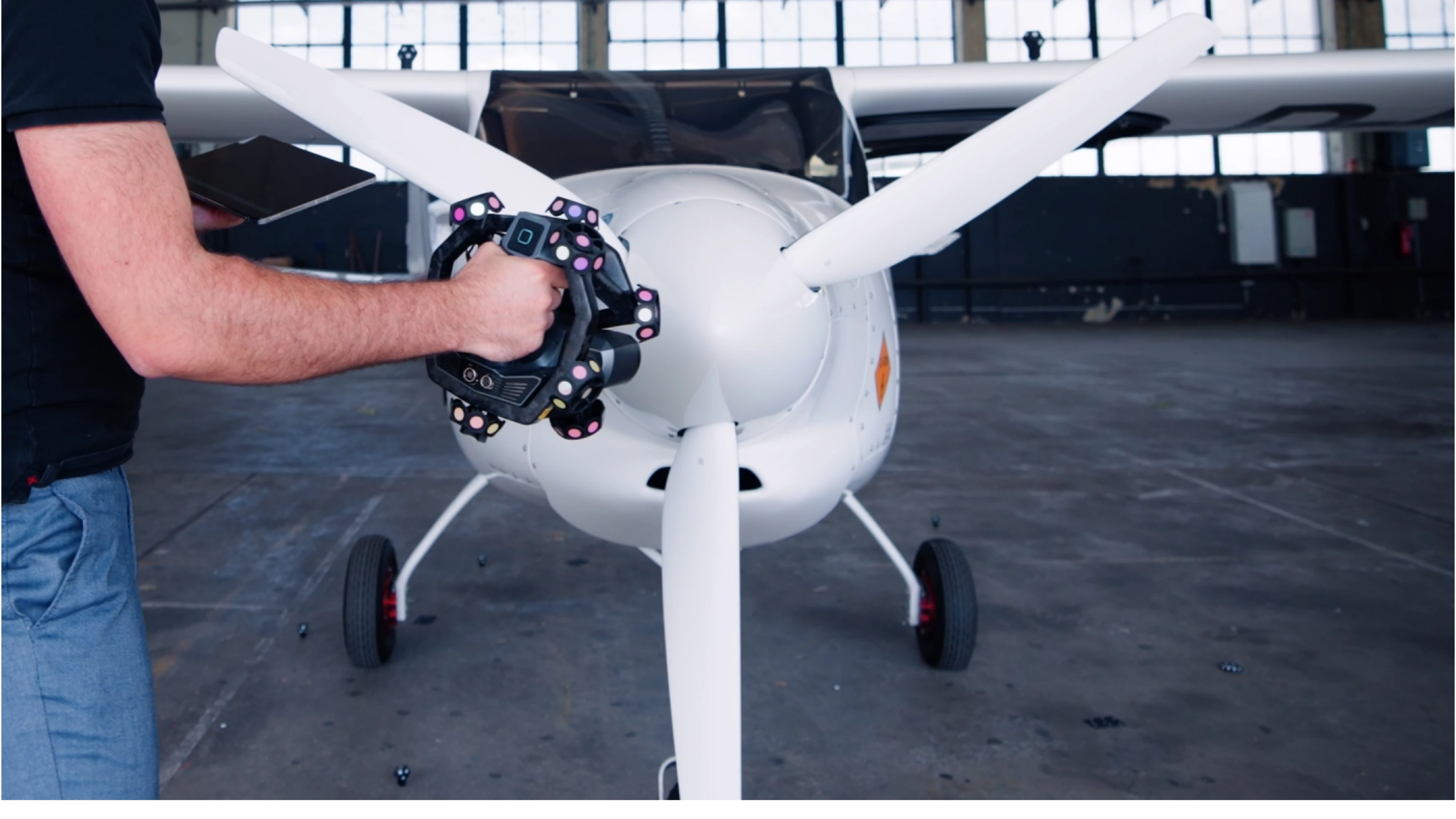

"The 3D scanning of a whole aircraft is very challenging. We needed to scan the propeller with high resolution, and capture the body, wings, and flaps in different positions to simulate aerodynamics. By combining the FreeScan Trak Nova scanner and tracker without any restrictive cables, we were able to get the high-detail data we needed of the whole airplane efficiently."
— Mohamed Firas M'Baya, PhD Student & Joita Christian-Gabriel, Application Engineer

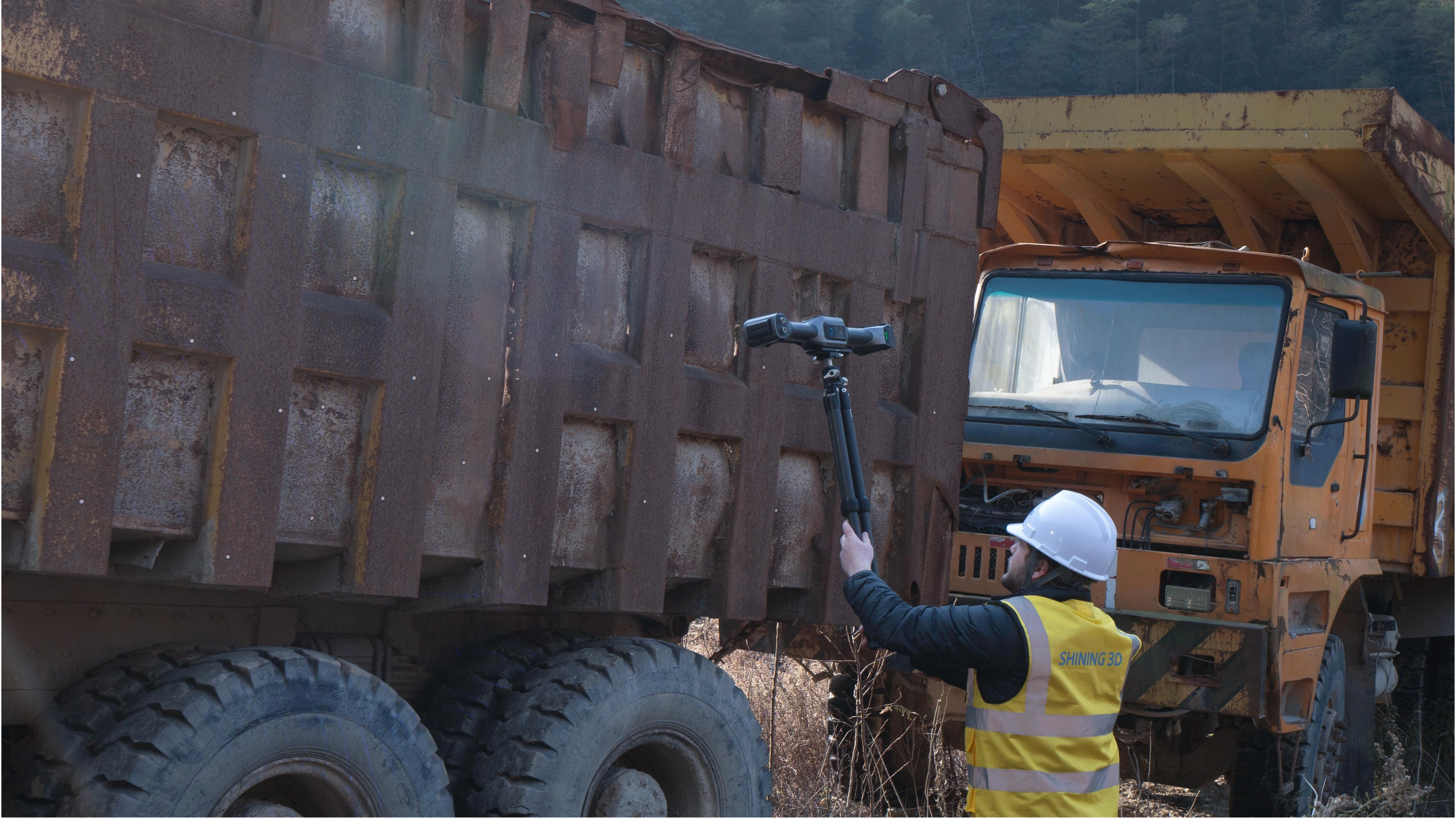

Used for quality control and maintenance repair of heavy construction machinery and energy sector infrastructure.
Ideal for large-scale structural measurements and scanning expansive civil engineering environments.
Streamlines reverse engineering and inspection workflows for rail transit and civil aviation applications.
Supports archaeology and heritage preservation through detailed, markerless digital archiving of large artifacts.
Select up to 4 scanners to compare key specifications side-by-side
| Product Name |
|
||||
| FreeScan Trak Nova | |||||
| Object Size for Best Results | 5 mm³ - 50 m³ | ||||
| Accuracy up to | 0.02 - 0.046 mm | ||||
| Resolution up to | 0.01 mm - 10 mm | ||||
| Volumetric accuracy up to | 0.046 + 0.012 mm/m | ||||
| Max fov | Up to 2600 x 2200 mm | ||||
| Scan speed up to | 6,140,000 points/s | ||||
| Light source | Blue Laser | ||||
| Number of laser lines |
50 lines | High-speed 7 lines | Fine detail 1 line | Deep pockets |
||||
| Color scanning | No | ||||
| Wireless | Yes | ||||
| Marker free | Yes |
| Component | Requirement |
|---|---|
| Operating System | Windows 11 Professional 22H2 (64-bit) |
| Processor | 13th Gen Intel® CoreTM i7-13700H or above |
| Memory (RAM) | 64 GB or above, DDR5 dual-channel |
| Graphics Card | NVIDIA GeForce RTX 4060 Laptop GPU or above |
| VRAM | 8 GB or above |
| USB Port | 3.0 |
Looking for something specific? Let us know, and we’ll be happy to assist you.
Since the FreeScan Trak Nova features two scanning sensors, you can first perform a large-area scan with UE Nova and then refine specific areas by switching to TE Nova for higher-resolution scanning. If using only TE Nova, the software offers Partial HD scanning, allowing resolution enhancement for intricate regions.
FreeScan Trak Nova provides an optimal solution for small businesses or individual users who require high-quality scanning without the need for marker registration. Its tracking volume is well-suited for single-room setups. Additionally, it supports UE Nova for large-scale scanning, enabling efficient measurement of extensive parts.
In wireless mode, TE Nova can operate for up to 2.5 hours, while UE Nova lasts approximately 1 hour. Both devices use standard swappable batteries, enabling continuous scanning without interruptions.
The system utilizes SHINING 3D’s patented video-based photogrammetry technology to enhance overall accuracy. UE Nova supports a maximum photogrammetry working distance of 3.5 meters, enabling efficient capture and generation of global marker files for improved precision.
A Wi-Fi router is necessary for operating the system in wireless mode. SHINING 3D includes a router in the package, but if you prefer to use your own, we recommend a Wi-Fi 6 router for optimal performance.
It is recommended to calibrate the system every two weeks. Additionally, if there are changes in operating temperature, location, or other environmental factors, calibration should be performed before scanning to ensure optimal accuracy.
Operating System: Windows 11 Professional 22H2 (64-bit);
CPU: 13th Gen Intel® CoreTM i7-13700H or above;
RAM: 64 GB or above, DDR5 dual-channel;
GPU: NVIDIA GeForce RTX 4060 Laptop GPU or above;
VRAM: 8 GB or above;
USB Port: 3.0
