H2 What's The Difference Between FreeScan Combo and FreeScan Combo+?
| Feature | FreeScan Combo+ | FreeScan Combo |
|---|---|---|
| Light Source | 50 Crossed Laser Lines 7 Parallel Laser Lines 1 Single Laser Lines IR - VCSEL |
26 Crossed Laser Lines 7 Parallel Laser Lines 1 Single Laser Lines IR - VCSEL |
| Scan Speed | Up to 3,600,000 pts/s (Laser) Up to 2,250,000 pts/s (IR-VCSEL) |
Up to 1,860,000 pts/s (Laser) Up to 2,250,000 pts/s (IR-VCSEL) |
| Accuracy | Up to 0.02 mm (Laser) Up to 0.05 mm (IR-VCSEL) |
Up to 0.02 mm (Laser) Up to 0.05 mm (IR-VCSEL) |
3D Scanner & Software Bundles
Main product
FreeScan Combo Series
Add-on products
EXModel Reverse Engineering Software
Quicksurface Reverse Engineering Software
Geomagic Design X Reverse Engineering
Geomagic Control X Inspection
Verisurf Inspection Software
SHINING3D Inspect
Your bundle
See How Businesses Use This in the Real World
-

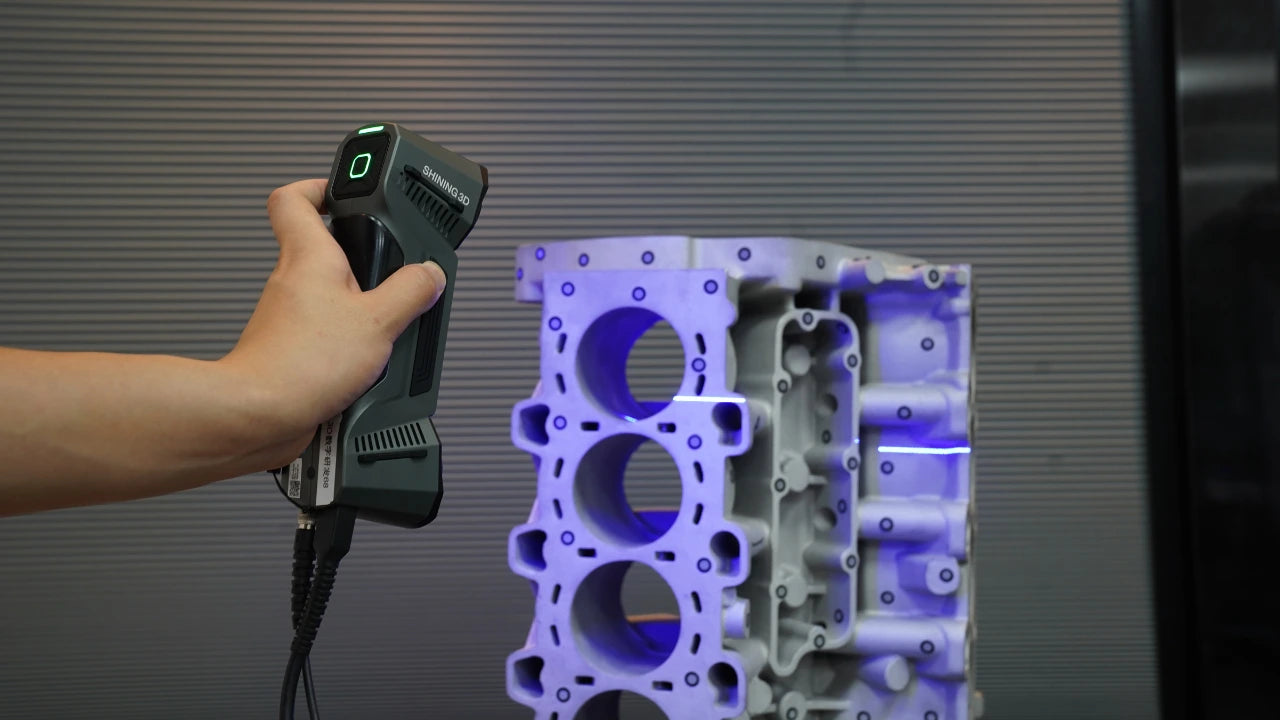

Industrial & Manufacturing
Delivers industrial-grade accuracy for inspection and metrology of complex, dark, or reflective machined parts.
-

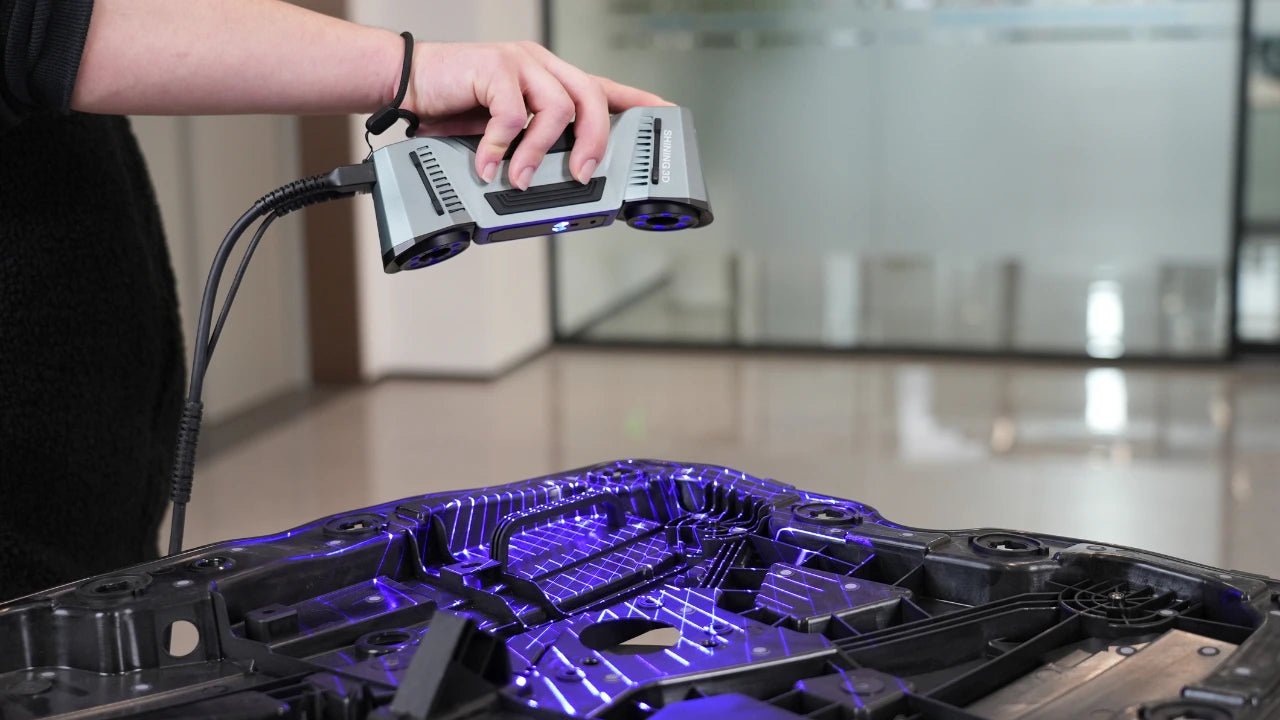

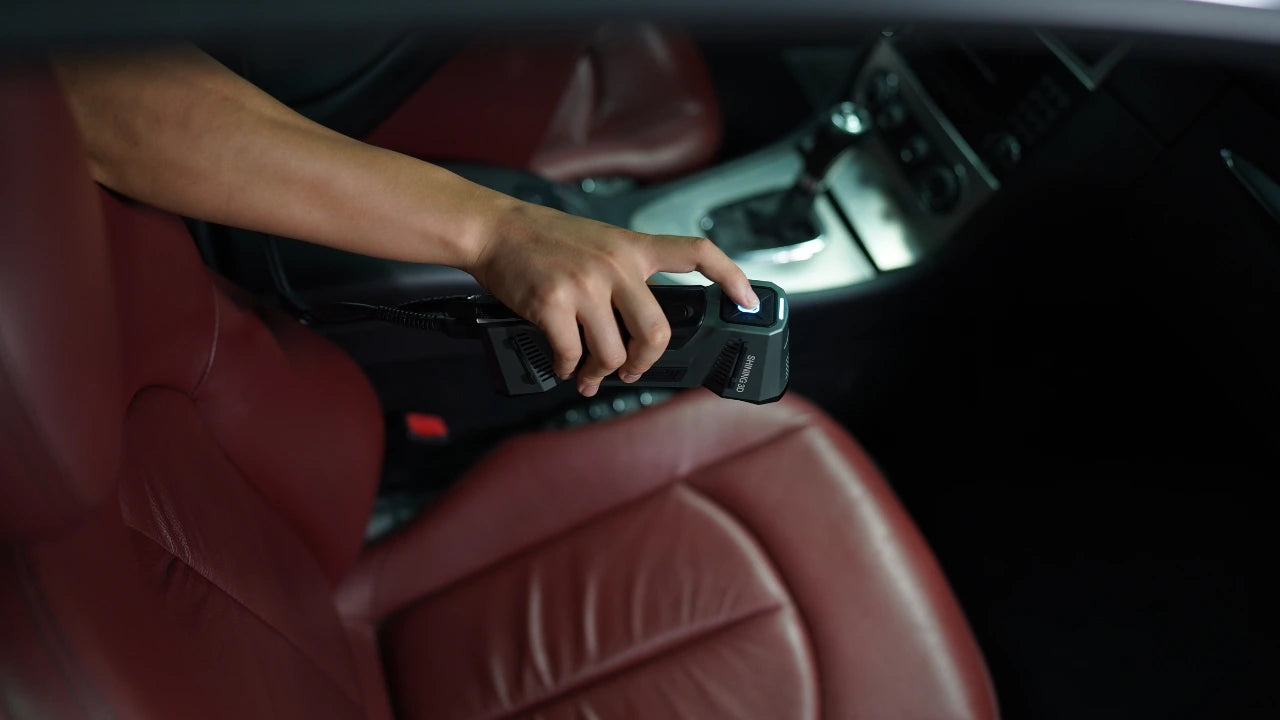

Automotive & Aerospace
Accelerates reverse engineering and aftermarket product design with markerless infrared and detailed laser scanning.
-
Product Design & Creative
Captures precise digital models for additive manufacturing and customized product development.
FreeScan Combo Series Video Review & Tutorials
Compare Products
Select up to 4 scanners to compare key specifications side-by-side.
| Product Name |
|
||||

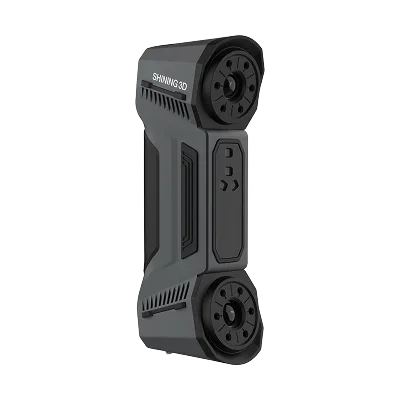

| FreeScan Combo | |||||
| Object Size for Best Results | 5 mm³ – 8 m³ | ||||
| Accuracy up to | 0.02 mm | ||||
| Resolution up to | 0.05 mm - 3 mm | ||||
| Volumetric accuracy up to | 0.02 + 0.033 mm/m | ||||
| Max fov | 520 x 510 mm (Blue Laser) | ||||
| Scan speed up to | 1,860,000 pts/s (Blue Laser) | ||||
| Light source | Blue Laser, Infrared VCSEL | ||||
| Number of laser lines |
26 lines | High-speed 7 lines | Fine detail 1 line | Deep pockets |
||||
| Color scanning | No | ||||
| Wireless | No | ||||
| Marker free | Yes (IR Rapid) |
Computer Requirements
| Component | Requirement |
|---|---|
| Operating System | Windows 10 (64-bit) and Windows 11 Pro (64-bit) |
| Processor | Intel® CoreTM i7-13700H or above |
| Memory (RAM) | 64 GB (dual-channel) |
| Graphics Card | NVIDIA RTX 4060 or above |
| VRAM | 8 GB VRAM or higher |
| USB Port | 3.0 |
| Storage | SSD with 1TB+ available space |
| Internet | Required for first activation and updates |
Quicks Start Resources
-
Technical Specifications
Frequently Asked Questions
Looking for something specific? Let us know, and we’ll be happy to assist you.
Yes. FreeScan Combo is a dual light source scanner, and the infrared light source can be used to quickly scan feature-rich workpieces without the need for markers on the surface.
No. FreeScan Combo doesn't have a color camera to capture the texture information of object.
Yes, the infrared light scanning mode is ideal for feature-rich workpieces, capturing parts quickly without needing markers.
FreeScan Combo offers four scanning modes to choose from. Use one single blue laser line to obtain deep-hole data.
Yes, FreeScan Combo is equipped with blue laser source, which has a very strong adaptability of black and reflective surface.
The laser scanning modes can achieve industrial-grade metrology accuracy up to 0.02 mm.
Yes. Infrared light source scanning can be used to scan human body.
The FreeScan Combo features 26 laser lines, while the Combo+ uses 50 laser lines to reach up to 3,600,000 points/s.
Operating System: Windows 10/11 Pro (64-bit) ;
Processor: Intel i7-10700 or higher;
Memory: (RAM) ≥32 GB;
Graphics Card: NVIDIA GTX/RTX series (≥ RTX 3060);
Storage: SSD with 250 GB available space;
USB Port: At least one USB 3.0 and one USB 2.0 ports;
Internet: Required for first activation and updates;
