Application Across Industries
From automotive to infrastructure, our metrology 3D scanners deliver high-accuracy data for inspection, reverse engineering, and quality control across demanding industrial applications.
-

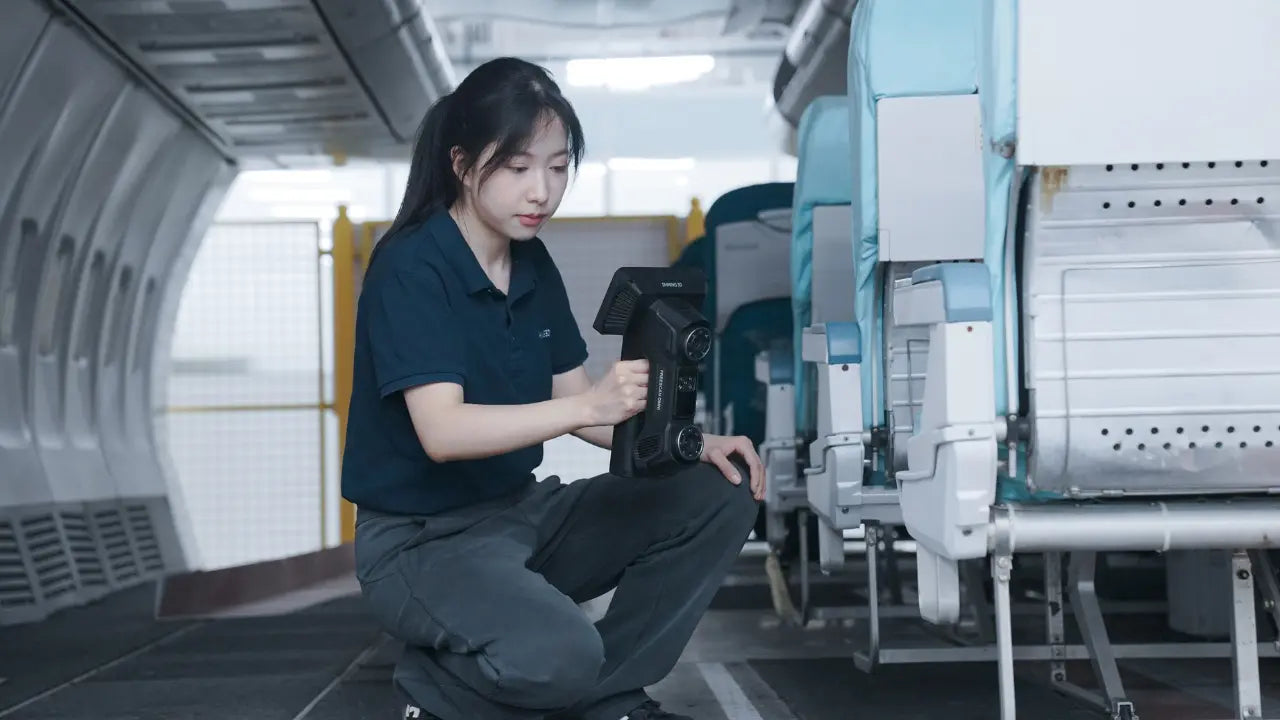

Automotive & Aerospace
Inspect, verify, and reverse engineer critical components with high accuracy.
-
Industrial & Manufacturing
Measure machinery, molds, and production parts for quality and maintenance.
-
Architecture, Engineering & Construction
Capture structures and sites for documentation, analysis, and verification.
-
Product Design & Creative
Digitize models and organic forms for design development and production.
| Product Name |
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|
| FreeScan Omni | FreeScan Trak Nova | Freescan Combo/Combo+ | Freescan Trio | FreeScan UE Pro2 | Freescan UE Nova | OptimScan Q Series | AutoScan Inspec2 | |
| Scanner Type | Handheld | Handheld | Handheld | Handheld | Handheld | Handheld | Desktop | Desktop |
|
Object Size
for Best Results |
5mm - 50 m3 | 5 mm - 50 m3 | 5 mm - 8 m3 | 5 mm - 10 m3 | 5 mm - 20 m3 | 1 m - 50 m3 | 2.5 mm - 1,2 m | 2.5 mm - 300 mm |
| 0.20 in - 1766 ft3 | 0.20 in - 1766 ft3 | 0.20 in - 283 ft3 | 0.20 in - 353 ft3 | 0.20 in - 706 ft3 | 3.28 ft - 1766 ft3 | 0.1 in to 4 ft | 0.1 in - 1 ft | |
| Accuracy | 0.02 mm (0.0008 in) | 0.02 mm | 0.02 mm | 0.02 mm | 0.02 mm | 0.072 mm | 0.005 mm | 0.01 mm |
| Resolution | 0.01 mm | 0.01 mm - 10 mm | 0.05 mm - 3 mm | 0.01 mm | 0.05 mm - 10 mm | 1 mm - 10 mm | 0.04 mm | 0.05 mm |
| Vol. accuracy | 0.02 + 0.015 mm/m (0.0008 in + 0.00018 in/ft) | 0.046 + 0.012 mm/m | 0.02 + 0.033 mm/m | 0.02 + 0.015 mm/m | 0.02 + 0.015 mm/m | 0.072 + 0.012 mm/m | At 1200mm measurement volume | 0.01mm + 0.1mm/meter |
| Max. FOV | 1205 x 1104 mm | 2600 x 2200 mm | 520 x 510 mm | 650 x 580 mm | 600 x 550 mm | Up to 2600 x 2200 mm | 430 × 300 mm | 140 x 90 x 80 mm |
| Scan speed | Up to 7,619,000 points/s | 6,140,000 points/s | 3,600,000 points/s | 3,010,000 points/s | 3,460,000 points/s | 4,600,00 points/s | Less than 1 second per shot | Less than 1 second per shot |
| Light Source | Blue Laser, Infrared Light | Blue Laser | Blue Laser, Infrared VCSEL | Blue Laser | Blue Laser | Blue Laser | Blue LED | LED blue light |
| Number of Laser Lines | 93 lines | High-speed 25 lines | Fine detail 1 line | Deep pockets |
50 lines | High-speed 7 lines | Fine detail 1 line | Deep pockets |
50 or 26 lines | High-speed 7 lines | Fine detail 1 line | Deep pockets |
98 lines | Marker-free 26 lines | High-speed 7 lines | Fine detail 1 line | Deep pockets |
50 lines | High-speed 7 lines | Fine detail 1 line | Deep pockets |
50 lines | High-speed | - | - |
| Color Scanning | No | No | No | No | No | No | No | Yes |
| Wireless | Yes | Yes | No | No | Yes | Yes | No | No |
| Marker Free | Yes | Yes | Yes | Yes | No | No | No | Yes |

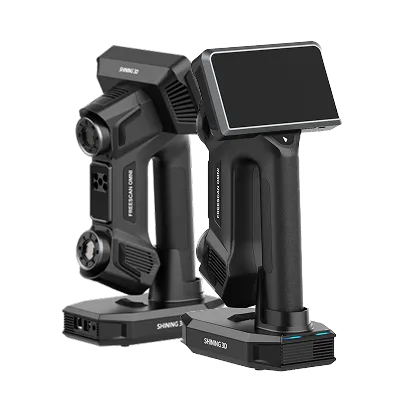

FreeScan Omni
Standalone Inspection - Ready Metrology 3D Scanner
The FreeScan Omni Series is a wireless, standalone metrology platform delivering 0.02 mm certified accuracy. Built for quality control professionals , it features onboard computing, an integrated screen, and dual light sources to enable high-performance scanning and instant inspection directly on the shop floor.

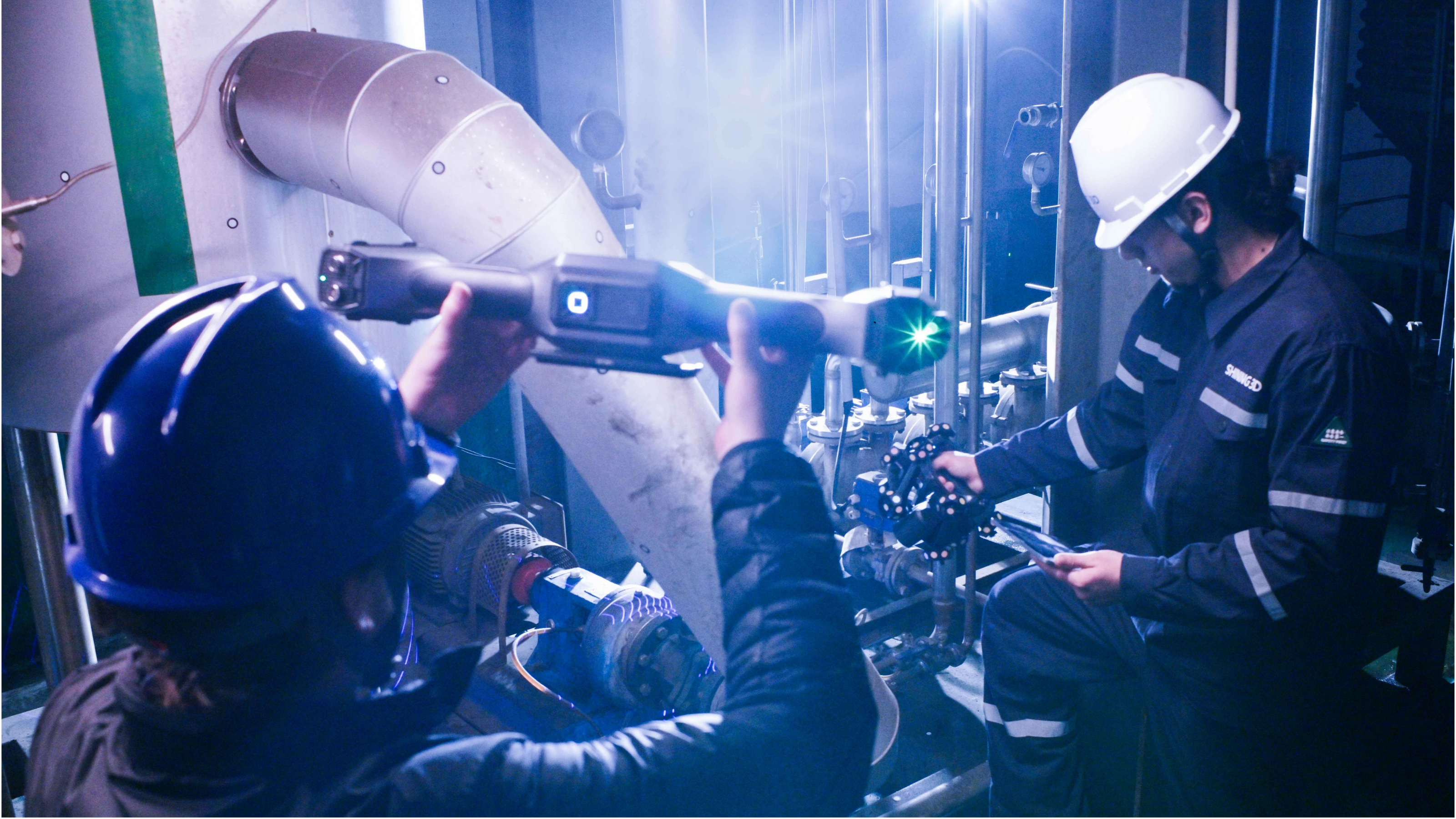

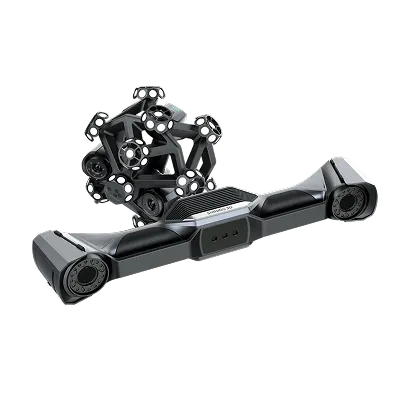

FreeScan Trak Nova
Wireless Multi-Functional Dynamic Tracking & Scanning System
The FreeScan Trak Nova is an all-in-one wireless tracking and scanning system integrating a portable tracker, a large-FOV laser scanner, and video photogrammetry. It is built for engineers and inspectors who require highly accurate, markerless, and efficient large-scale measurements without the constraints of cords or heavy setups.

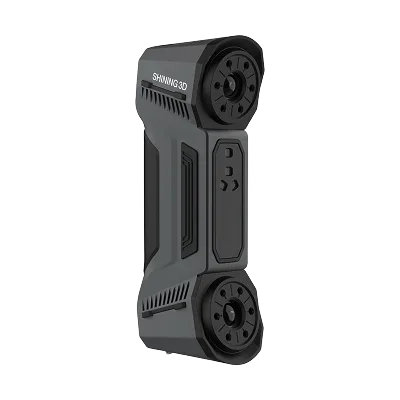

FreeScan Combo Series
$11,999.00
Affordable Hybrid Light Source and Multifunctional Handheld Metrology 3D Scanner
The FreeScan Combo Series packs dual light sources (blue laser and infrared VCSEL) into a 620g ultra compact metrology scanner. Delivering 0.02 mm accuracy, it is perfect for engineers needing highly versatile, markerless, and deep hole scanning for reverse engineering and inspection.

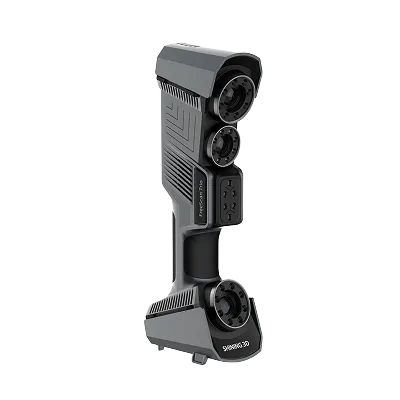

FreeScan Trio
High-precision marker-free handheld 3D scanner with 98 laser lines for fast and detailed scanning. Ideal for quality control, on-site inspections, and industrial manufacturing.

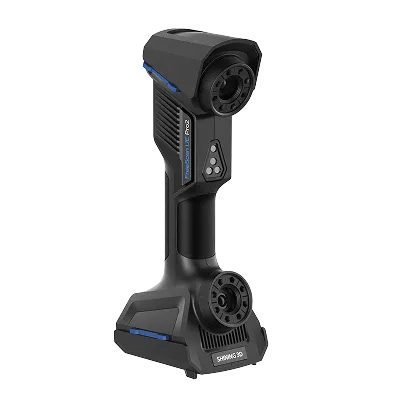

FreeScan UE Pro2
High-precision wireless 3D scanner delivering unmatched metrology-grade accuracy. Ideal for quality control, inspections, and versatile industrial applications.

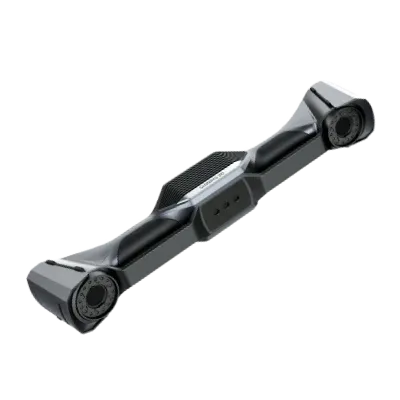

FreeScan UE Nova
High-performance handheld 3D scanner with an ultra-wide 2.6 × 2.2 m field of view. Designed for large-scale projects in industries such as aerospace, automotive, energy, and heavy manufacturing.

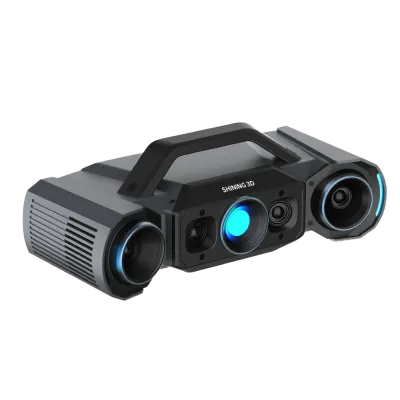

OptimScan Q Series
High Precision Blue Light Metrology 3D Scanner
The OptimScan Q Series is an industrial grade, narrow band blue light 3D scanner designed for ultra high resolution metrology and reverse engineering. Delivering up to 0.015 mm accuracy and featuring adjustable scanning ranges, it is the perfect solution for capturing intricate details on complex, small to medium parts with exceptional reliability.

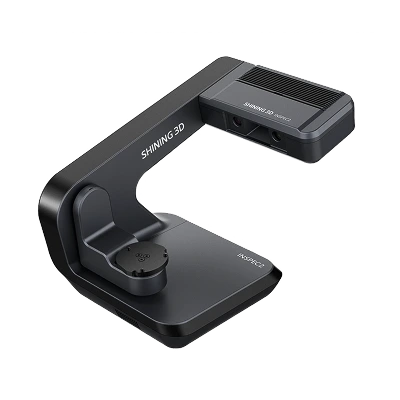

AutoScan Inspec2 Desktop 3D Scanner
$9,999.00
Automatic Desktop 3D Scanner for Complex Small Objects
AutoScan Inspec2 is an automatic desktop 3D scanner delivering 0.01 mm metrology-grade accuracy. Designed for quality control and reverse engineering of small parts, it features a 3-axis turntable, dual 5MP cameras, and full-color scanning. Perfect for professionals needing ultra-fine detail capture effortlessly.
